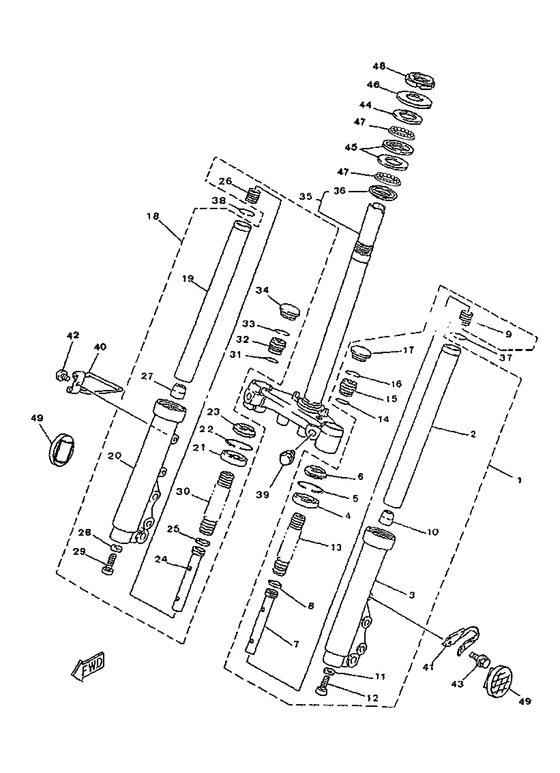

Front fork Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SJ3
- Sales region
- Belgium (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PC-F3102-10-33
Front Fork Assy (L.h.)
Yamaha black |
4PC-F3102-10-33 |
— | ||
|
02
|
02
4PC-F3110-00-00
Inner Tube Comp.1
|
4PC-F3110-00-00 |
— | ||
|
03
|
03
4PC-F3126-10-00
Tube, Outer (L.h)
|
4PC-F3126-10-00 |
— | ||
| replacement | |||||
|
03
|
03
4PC-F3126-10-LK
Tube, Outer (Left)
|
4PC-F3126-10-LK |
— | ||
|
04
|
04
93102-26436-00 Oil Seal |
93102-26436-00 |
US $16.76 |
||
|
05
|
05
4PC-F3156-00-00
Ring, Snap
|
4PC-F3156-00-00 |
— | ||
|
06
|
06
3VP-23144-00-00 Seal, Dust |
3VP-23144-00-00 |
US $20.97 |
||
|
07
|
07
4PC-F3171-10-00
Piston, Front Fork
|
4PC-F3171-10-00 |
— | ||
|
08
|
08
4PC-F3157-00-00
Ring, Piston
|
4PC-F3157-00-00 |
— | ||
|
09
|
09
4PC-F3151-00-00
Spring, Rebound
|
4PC-F3151-00-00 |
— | ||
|
10
|
10
4PC-F3173-00-00
Spindle, Taper
|
4PC-F3173-00-00 |
— | ||
|
11
|
11
90201-088F2-00
Washer, Plate
|
90201-088F2-00 |
— | ||
|
12
|
12
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.42 |
||
|
13
|
13
4PC-F3141-00-00
Spring, Front Fork
|
4PC-F3141-00-00 |
— | ||
|
14
|
14
93210-168C9-00
O-Ring
|
93210-168C9-00 |
— | ||
|
15
|
15
4PC-F3111-00-00
Bolt, Cap
|
4PC-F3111-00-00 |
— | ||
|
16
|
16
4PC-F3183-00-00
Circlip
|
4PC-F3183-00-00 |
— | ||
|
17
|
17
4PC-F3154-00-00
Cap
|
4PC-F3154-00-00 |
— | ||
|
18
|
18
4PC-F3103-10-33
Front Fork Assy (R.h.)
Yamaha black |
4PC-F3103-10-33 |
— | ||
|
19
|
19
4PC-F3110-00-00
Inner Tube Comp.1
|
4PC-F3110-00-00 |
— | ||
|
20
|
20
4PC-F3136-10-00
Tube, Outer 2
|
4PC-F3136-10-00 |
— | ||
| replacement | |||||
|
20
|
20
4PC-F3136-10-LK
Tube, Outer (Right)
|
4PC-F3136-10-LK |
— | ||
|
21
|
21
93102-26436-00 Oil Seal |
93102-26436-00 |
US $16.76 |
||
|
22
|
22
4PC-F3156-00-00
Ring, Snap
|
4PC-F3156-00-00 |
— | ||
|
23
|
23
3VP-23144-00-00 Seal, Dust |
3VP-23144-00-00 |
US $20.97 |
||
|
24
|
24
4PC-F3171-10-00
Piston, Front Fork
|
4PC-F3171-10-00 |
— | ||
|
25
|
25
4PC-F3157-00-00
Ring, Piston
|
4PC-F3157-00-00 |
— | ||
|
26
|
26
4PC-F3151-00-00
Spring, Rebound
|
4PC-F3151-00-00 |
— | ||
|
27
|
27
4PC-F3173-00-00
Spindle, Taper
|
4PC-F3173-00-00 |
— | ||
|
28
|
28
90201-088F2-00
Washer, Plate
|
90201-088F2-00 |
— | ||
|
29
|
29
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.42 |
||
|
30
|
30
4PC-F3141-00-00
Spring, Front Fork
|
4PC-F3141-00-00 |
— | ||
|
31
|
31
93210-168C9-00
O-Ring
|
93210-168C9-00 |
— | ||
|
32
|
32
4PC-F3111-00-00
Bolt, Cap
|
4PC-F3111-00-00 |
— | ||
|
33
|
33
4PC-F3183-00-00
Circlip
|
4PC-F3183-00-00 |
— | ||
|
34
|
34
4PC-F3154-00-00
Cap
|
4PC-F3154-00-00 |
— | ||
|
35
|
35
4PC-F3340-10-00
Under Bracket Comp
|
4PC-F3340-10-00 |
— | ||
| replacement | |||||
|
35
|
35
4PC-F3340-10-33
Stay Enside Assy
|
4PC-F3340-10-33 |
— | ||
|
36
|
36
22F-23414-01-00 Race, Ball 4 |
22F-23414-01-00 |
from US $8.22 |
||
| replacement | |||||
|
36
|
36
BP2-23414-00-00 Race, Ball |
BP2-23414-00-00 |
US $20.02 |
||
|
37
|
37
4PC-F3153-00-00
Clip
|
4PC-F3153-00-00 |
— | ||
|
38
|
38
4PC-F3153-00-00
Clip
|
4PC-F3153-00-00 |
— | ||
|
39
|
39
95821-10030-00 Bolt, Flange |
95821-10030-00 |
from US $1.07 |
||
| replacement | |||||
|
39
|
39
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
40
|
40
4MJ-F3317-00-00
Holder, Cable
|
4MJ-F3317-00-00 |
— | ||
| replacement | |||||
|
40
|
40
4CX-F3317-00-00
Holder, Cable
|
4CX-F3317-00-00 |
— | ||
|
41
|
41
4PC-F5875-00-00
Holder, Brake Hose 1
|
4PC-F5875-00-00 |
— | ||
|
42
|
42
98901-06010-00 Screw, Bind |
98901-06010-00 |
US $1.21 |
||
| replacements | |||||
|
42
|
42
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.21 |
||
|
42
|
42
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
43
|
43
95801-06016-00 Bolt, Flange |
95801-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
43
|
43
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
44
|
44
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $8.78 |
||
| replacement | |||||
|
44
|
44
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $6.30 |
||
|
45
|
45
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $7.93 |
||
| replacement | |||||
|
45
|
45
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $7.93 |
||
|
46
|
46
3VP-23416-00-00 Cover, Ball Race 2 |
3VP-23416-00-00 |
US $2.83 |
||
|
47
|
47
22F-2341E-00-00 Retainer, Ball Bearing |
22F-2341E-00-00 |
from US $12.75 |
||
| replacement | |||||
|
47
|
47
BP2-2341E-00-00 Retainer, Ball Bearing |
BP2-2341E-00-00 |
from US $12.75 |
||
|
48
|
48
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
48
|
48
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
48
|
48
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
49
|
49
4SJ-H5111-00-00
Reflector, Front 1
|
4SJ-H5111-00-00 |
— | ||
| replacement | |||||
|
49
|
49
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
