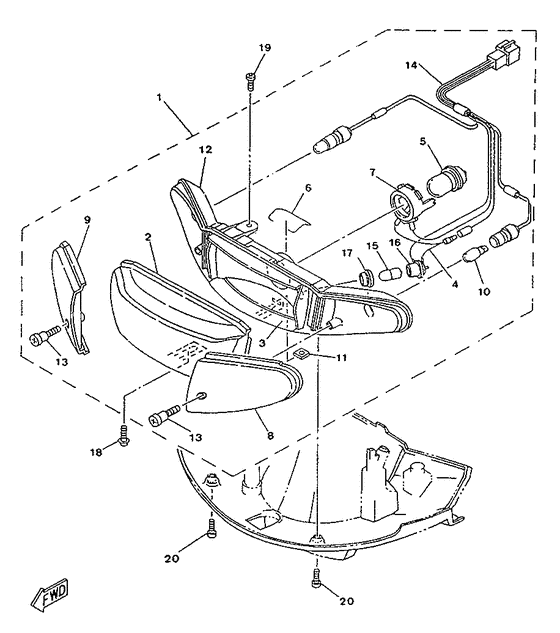

Headlight Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SJ3
- Sales region
- Belgium (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PC-H4300-A0-00
Headlight Assy
|
4PC-H4300-A0-00 |
— | ||
|
02
|
02
4PC-F4321-00-00
Pipe 10
|
4PC-F4321-00-00 |
— | ||
|
03
|
03
4PC-H4323-00-00
Reflector
|
4PC-H4323-00-00 |
— | ||
|
04
|
04
4PC-F4312-00-00
Pipe 2
|
4PC-F4312-00-00 |
— | ||
|
05
|
05
4PC-F4314-00-00
Pipe 4
|
4PC-F4314-00-00 |
— | ||
|
06
|
06
3WG-H4324-00-00
Spring, Reflector
|
3WG-H4324-00-00 |
— | ||
|
07
|
07
4PC-H3412-00-00
Socket
|
4PC-H3412-00-00 |
— | ||
|
08
|
08
4MJ-H3312-00-00
Lens, Flasher
Ur amber |
4MJ-H3312-00-00 |
— | ||
|
09
|
09
4MJ-H3322-00-00
Lens, Flasher 2
Ur amber |
4MJ-H3322-00-00 |
— | ||
|
10
|
10
3VP-83311-00-00 Bulb, Flasher (12V-10W T13) |
3VP-83311-00-00 |
US $3.54 |
||
| replacements | |||||
|
10
|
10
1YT-83311-00-00 Bulb(12V-10W) |
1YT-83311-00-00 |
from US $3.54 |
||
|
10
|
10
2DP-H4714-00-00 Bulb (12V-10W) |
2DP-H4714-00-00 |
US $3.54 |
||
|
11
|
11
4MJ-H4317-00-00
Nut
|
4MJ-H4317-00-00 |
— | ||
|
12
|
12
4MJ-H4311-00-00
Body, Headlight
|
4MJ-H4311-00-00 |
— | ||
|
13
|
13
4MJ-H4337-00-00
Bolt, Special
|
4MJ-H4337-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4MJ-H4337-10-00
Bolt, Special
|
4MJ-H4337-10-00 |
— | ||
|
14
|
14
4PC-H4359-00-00
Cord, Headlight
|
4PC-H4359-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
4CX-H4347-00-00
Bulb (12V 4W)
|
4CX-H4347-00-00 |
— | ||
|
16
|
16
4CX-H4346-00-00
Socket, Pilot Light
|
4CX-H4346-00-00 |
— | ||
|
17
|
17
4CX-H4352-00-00
Grommet
|
4CX-H4352-00-00 |
— | ||
|
18
|
18
90159-05155-00 Screw, With Washer(2Ja) |
90159-05155-00 |
from US $1.21 |
||
|
19
|
19
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
19
|
19
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
19
|
19
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
20
|
20
97702-50022-00
Screw, Tapping
|
97702-50022-00 |
— | ||
