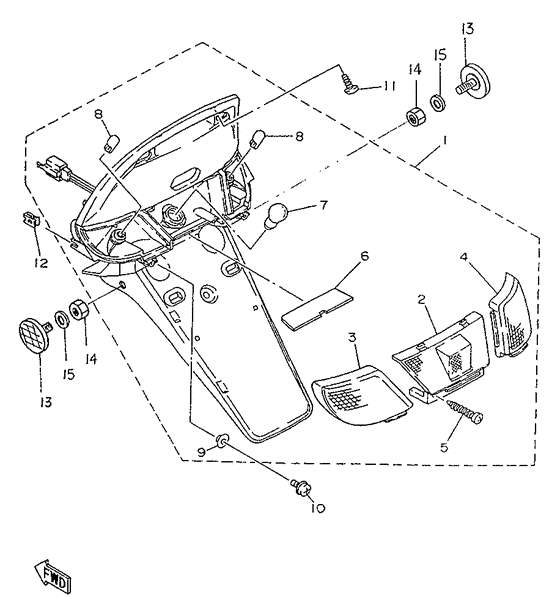

Taillight Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SJ3
- Sales region
- Belgium (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-H4700-10-00
Taillight Assy
|
4MJ-H4700-10-00 |
— | ||
|
02
|
02
4MJ-H4721-00-00
Lens, Taillight
|
4MJ-H4721-00-00 |
— | ||
|
03
|
03
4MJ-H3332-00-00
Lens, Flasher
Ur amber color |
4MJ-H3332-00-00 |
— | ||
|
04
|
04
4MJ-H3342-00-00
Lens, Flasher 2
Ur amber color |
4MJ-H3342-00-00 |
— | ||
|
05
|
05
97701-40620-00 Screw, Tapping |
97701-40620-00 |
US $1.42 |
||
| replacements | |||||
|
05
|
05
97780-40120-00 Ybs83-420 Screw,panh,tapping |
97780-40120-00 |
from US $1.42 |
||
|
05
|
05
97704-40620-00 Screw, Tapping |
97704-40620-00 |
from US $1.42 |
||
|
06
|
06
4MJ-H4743-00-00
Lens, Licence Light
|
4MJ-H4743-00-00 |
— | ||
|
07
|
07
4BA-H4714-00-00
Bulb (P21/5W)
|
4BA-H4714-00-00 |
— | ||
|
08
|
08
3TH-H3311-00-00
Bulb (12V 10W)
|
3TH-H3311-00-00 |
— | ||
|
09
|
09
4MJ-H4725-00-00
Washer, Special
|
4MJ-H4725-00-00 |
— | ||
|
10
|
10
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
10
|
10
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.35 |
||
|
11
|
11
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
11
|
11
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
11
|
11
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
12
|
12
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
13
|
13
4SJ-H5131-00-00
Reflector, Rear 1
|
4SJ-H5131-00-00 |
— | ||
|
14
|
14
95701-04300-00 Nut, Flange |
95701-04300-00 |
from US $2.09 |
||
| replacement | |||||
|
14
|
14
95707-04300-00 Nut, Flange |
95707-04300-00 |
from US $1.42 |
||
|
15
|
15
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
