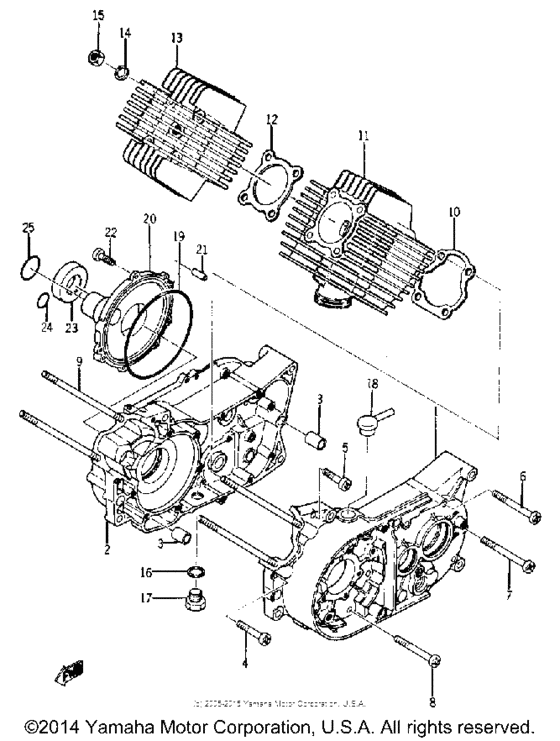

Crankcase Diagram Yamaha YA6
- Year
- 1966
- Sales region
- USA
- Engine Capacity
- 600
- Model
- YA6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
137-15111-02-00
Crankcase 1
|
137-15111-02-00 |
— | ||
|
2
|
2
137-15121-01-00
Crankcase 2
|
137-15121-01-00 |
— | ||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
4
|
4
98580-06035-00 Screw Pan Head |
98580-06035-00 |
US $2.13 |
||
| replacement | |||||
|
4
|
4
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
5
|
5
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
5
|
5
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
6
|
6
985-01060-70-00
Screw Pan Head
|
985-01060-70-00 |
— | ||
| replacement | |||||
|
6
|
6
98580-06570-00 Screw, Pan Head |
98580-06570-00 |
from US $6.52 |
||
|
7
|
7
98501-06090-00 Screw Pan Head |
98501-06090-00 |
from US $2.16 |
||
| replacement | |||||
|
7
|
7
98504-06090-00 Screw, Pan Head |
98504-06090-00 |
from US $3.54 |
||
|
8
|
8
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
9
|
9
901-16080-79-00
Bolt, Stud
|
901-16080-79-00 |
— | ||
|
10
|
10
137-11351-00-00
Gasket, Cylinder
|
137-11351-00-00 |
— | ||
|
11
|
11
137-11311-00-00
Cylinder 1
|
137-11311-00-00 |
— | ||
|
12
|
12
137-11181-01-00
Gasket, Cylinder Head 1
|
137-11181-01-00 |
— | ||
|
13
|
13
137-11111-12-00
Head, Cylinder 1
|
137-11111-12-00 |
— | ||
|
14
|
14
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
15
|
15
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
15
|
15
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
16
|
16
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
17
|
17
90340-14119-00
Plug, Straight Scrw (102-15351-
|
90340-14119-00 |
— | ||
|
18
|
18
903-38190-47-00
Plug, Spec''l Shape (137-15363-
|
903-38190-47-00 |
— | ||
|
19
|
19
932-11190-64-00
O-Ring
|
932-11190-64-00 |
— | ||
|
20
|
20
137-13551-01-00
Cover, Valve
|
137-13551-01-00 |
— | ||
|
21
|
21
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.69 |
||
|
22
|
22
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
22
|
22
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
23
|
23
93103-28012-00 Oil Seal |
93103-28012-00 |
from US $9.63 |
||
|
24
|
24
93210-12014-00 O-Ring |
93210-12014-00 |
from US $4.96 |
||
|
25
|
25
93210-26033-00 O-Ring |
93210-26033-00 |
from US $2.83 |
||
