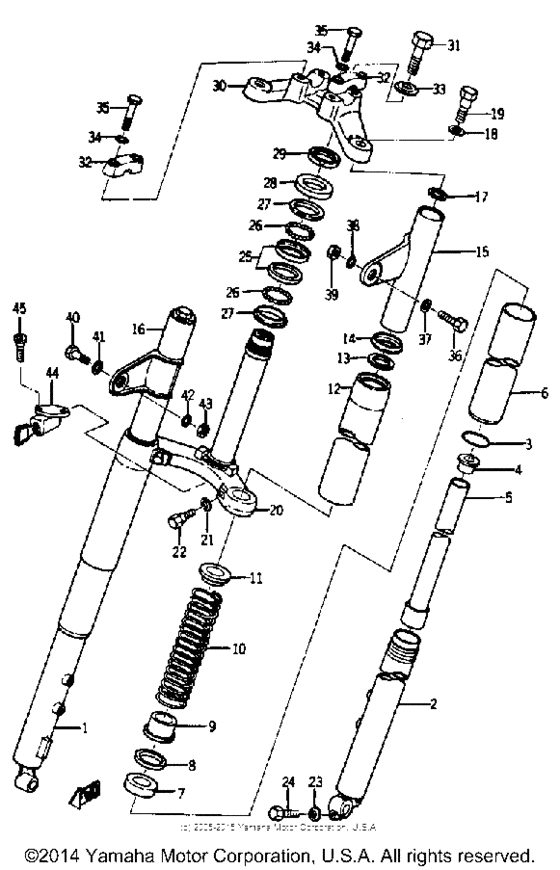

Front fork Diagram Yamaha YA6
- Year
- 1966
- Sales region
- USA
- Engine Capacity
- 600
- Model
- YA6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
137-23136-60-81
Tube, Outer 2
|
137-23136-60-81 |
— | ||
|
2
|
2
137-23126-60-81
Tube, Outer 1
|
137-23126-60-81 |
— | ||
|
3
|
3
137-23147-00-00
O-Ring
|
137-23147-00-00 |
— | ||
|
4
|
4
137-23125-01-00
Metal, Slide 1
|
137-23125-01-00 |
— | ||
|
5
|
5
137-23124-00-00
Tube, Inner 1
|
137-23124-00-00 |
— | ||
|
6
|
6
137-23150-00-00
Outer Nut
|
137-23150-00-00 |
— | ||
|
7
|
7
137-23145-01-00 Oil Seal |
137-23145-01-00 |
from US $47.66 |
||
|
8
|
8
137-23146-00-00
Washer, Oil Seal
|
137-23146-00-00 |
— | ||
|
9
|
9
137-23143-00-00
Seat, Spring Lower
|
137-23143-00-00 |
— | ||
|
10
|
10
137-23141-00-00
Spring, Front Fork
|
137-23141-00-00 |
— | ||
|
11
|
11
137-23142-00-00
Seat, Spring Upper
|
137-23142-00-00 |
— | ||
|
13
|
13
437-23163-00-00
Gasket
|
437-23163-00-00 |
— | ||
|
14
|
14
137-23116-00-00
Guide, Cover Lower
|
137-23116-00-00 |
— | ||
|
17
|
17
137-23114-00-00
Gasket
|
137-23114-00-00 |
— | ||
|
18
|
18
137-23112-00-00
Washer, Cap
|
137-23112-00-00 |
— | ||
|
19
|
19
137-23111-00-00
Bolt, Cap
|
137-23111-00-00 |
— | ||
|
21
|
21
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
22
|
22
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
22
|
22
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
23
|
23
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
24
|
24
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
24
|
24
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
24
|
24
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
24
|
24
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
25
|
25
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
25
|
25
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
26
|
26
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
27
|
27
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
27
|
27
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
28
|
28
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
29
|
29
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
29
|
29
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
29
|
29
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
30
|
30
137-23435-01-00
Crown, Handle
|
137-23435-01-00 |
— | ||
|
31
|
31
90105-10006-00 Bolt, Flange |
90105-10006-00 |
from US $4.68 |
||
| replacement | |||||
|
31
|
31
901-06100-46-00 Bolt(3Pp) |
901-06100-46-00 |
from US $6.17 |
||
|
32
|
32
137-23441-00-00
Holder, Handle Upr
|
137-23441-00-00 |
— | ||
|
32
|
32
137-23441-01-00
Holder, Handle Upr
326~ |
137-23441-01-00 |
— | ||
|
33
|
33
902-01101-47-00
Washer, Plate
|
902-01101-47-00 |
— | ||
|
34
|
34
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
34
|
34
92990-08100-00 Ybs67-8 Washer, Spring26~ |
92990-08100-00 |
from US $1.66 |
||
|
35
|
35
97313-08035-00 Bolt326~ |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
35
|
35
97013-08035-00 Bolt326~ |
97013-08035-00 |
from US $4.53 |
||
|
35
|
35
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
35
|
35
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
36
|
36
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
36
|
36
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
36
|
36
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
36
|
36
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
37
|
37
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
38
|
38
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
39
|
39
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
39
|
39
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
40
|
40
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
40
|
40
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
40
|
40
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
40
|
40
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
41
|
41
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
42
|
42
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
43
|
43
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
43
|
43
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
44
|
44
137-23480-00-00 Steering Lock Assembly |
137-23480-00-00 |
US $57.89 |
||
|
45
|
45
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
45
|
45
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $2.27 |
||
|
45
|
45
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
