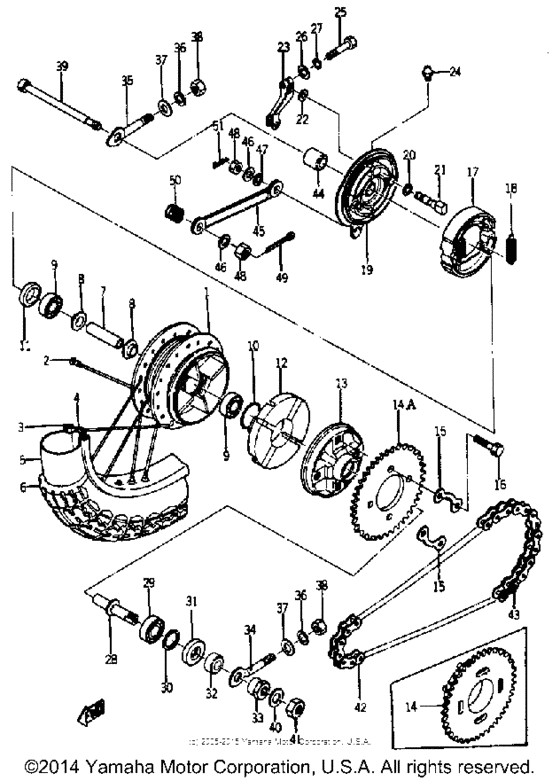

Rear wheel Diagram Yamaha YA6
- Year
- 1966
- Sales region
- USA
- Engine Capacity
- 600
- Model
- YA6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
136-25311-02-38
Hub, Rear
|
136-25311-02-38 |
— | ||
|
1
|
1
174-25439-20-33
Sprocket, Drivn 39T
39T 577~ |
174-25439-20-33 |
— | ||
| replacement | |||||
|
1
|
1
174-25439-20-00
SPROCKET,DRIVN 40T
39T 577~ |
174-25439-20-00 |
— | ||
|
2
|
2
174-25441-20-00
Sprocket, Drivn 41T
41T 577~ |
174-25441-20-00 |
— | ||
|
2
|
2
136-25304-00-00
Spoke Set, Rear
|
136-25304-00-00 |
— | ||
|
3
|
3
94416-16008-00
Rim (1.60-16)
|
94416-16008-00 |
— | ||
| replacement | |||||
|
3
|
3
944-16160-02-00 Rim |
944-16160-02-00 |
US $86.63 |
||
|
4
|
4
94330-16058-00 Band, Rim (1.60-16)1.60-16 |
94330-16058-00 |
from US $4.25 |
||
|
5
|
5
942-30160-11-00
Tube
|
942-30160-11-00 |
— | ||
|
6
|
6
941-30160-30-00
300X16 Yokohama
|
941-30160-30-00 |
— | ||
|
7
|
7
90560-15136-00 Spacer (136-25317-00) |
90560-15136-00 |
from US $11.19 |
||
|
8
|
8
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
9
|
9
93306-20226-00 Bearing |
93306-20226-00 |
from US $15.26 |
||
|
10
|
10
93210-41042-00 O-Ring |
93210-41042-00 |
from US $3.04 |
||
|
11
|
11
931-01420-18-00
Oil Seal, S-Type
|
931-01420-18-00 |
— | ||
|
12
|
12
136-25364-01-00
Damper
|
136-25364-01-00 |
— | ||
|
13
|
13
137-25366-00-00
Clutch, Hub
577~ |
137-25366-00-00 |
— | ||
|
14
|
14
174-25439-20-33
Sprocket, Drivn 39T
39T |
174-25439-20-33 |
— | ||
| replacement | |||||
|
14
|
14
174-25439-20-00
SPROCKET,DRIVN 40T
39T |
174-25439-20-00 |
— | ||
|
14
|
14
148-84751-00-00
Bracket, License
IN PRICE BOOK 577~ |
148-84751-00-00 |
— | ||
|
15
|
15
148-25412-00-00
Washer
|
148-25412-00-00 |
— | ||
|
16
|
16
901-05100-05-00
Bolt, Washer Based (141-25411-0
|
901-05100-05-00 |
— | ||
|
17
|
17
136-W2535-00-00 Brake Shoe Kit |
136-W2535-00-00 |
from US $32.44 |
||
| replacement | |||||
|
17
|
17
3GW-W253A-00-00 Brake Shoe Kit |
3GW-W253A-00-00 |
from US $33.02 |
||
|
18
|
18
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2.36 |
||
|
19
|
19
397-25320-10-00
Brake Shoe Plt Assembly
|
397-25320-10-00 |
— | ||
|
20
|
20
136-25153-00-00
Shim, Camshaft
|
136-25153-00-00 |
— | ||
|
21
|
21
136-25351-01-00
Camshaft
|
136-25351-01-00 |
— | ||
|
22
|
22
137-25159-00-00
Seal, Camshaft
|
137-25159-00-00 |
— | ||
|
23
|
23
122-25355-00-00 Lever, Camshaft |
122-25355-00-00 |
from US $24.65 |
||
|
24
|
24
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
25
|
25
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
25
|
25
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
26
|
26
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
137-25387-00-00
Axle, Sprocket
|
137-25387-00-00 |
— | ||
|
29
|
29
93306-00406-00 Bearing |
93306-00406-00 |
from US $15.44 |
||
| replacement | |||||
|
29
|
29
93306-00438-00 Bearing |
93306-00438-00 |
from US $14.48 |
||
|
30
|
30
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.66 |
||
|
31
|
31
93106-30004-00 Oil Seal |
93106-30004-00 |
from US $7.21 |
||
|
32
|
32
90387-20158-00 Collar |
90387-20158-00 |
US $9.21 |
||
|
33
|
33
90170-20167-00 Nut, Hexagon (137-25385-00) |
90170-20167-00 |
from US $21.68 |
||
|
34
|
34
137-25388-00-00
Puller, Chain 1
|
137-25388-00-00 |
— | ||
|
35
|
35
137-25389-00-00
Puller, Chain 2
|
137-25389-00-00 |
— | ||
|
36
|
36
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
37
|
37
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
38
|
38
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
39
|
39
137-25381-00-00
Axle, Wheel
|
137-25381-00-00 |
— | ||
|
40
|
40
902-01153-12-00
Washer, Plate
|
902-01153-12-00 |
— | ||
|
41
|
41
95312-14600-00 Nut |
95312-14600-00 |
from US $8.15 |
||
| replacement | |||||
|
41
|
41
95337-14600-00 Nut |
95337-14600-00 |
from US $10.02 |
||
|
42
|
42
945-04281-08-00
428 Std 108L
108L |
945-04281-08-00 |
— | ||
|
43
|
43
94680-24001-00 Chain Joint |
94680-24001-00 |
from US $2.83 |
||
| replacement | |||||
|
43
|
43
94681-64001-00 Joint, Chain |
94681-64001-00 |
from US $2.83 |
||
|
44
|
44
903-87151-19-00
Collar (137-25383-00)
|
903-87151-19-00 |
— | ||
|
45
|
45
136-25371-00-00
Bar, Tension
|
136-25371-00-00 |
— | ||
|
46
|
46
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
47
|
47
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
47
|
47
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
48
|
48
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
48
|
48
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
49
|
49
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
49
|
49
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
50
|
50
905-01201-29-00
Spring, Compression
|
905-01201-29-00 |
— | ||
|
51
|
51
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
