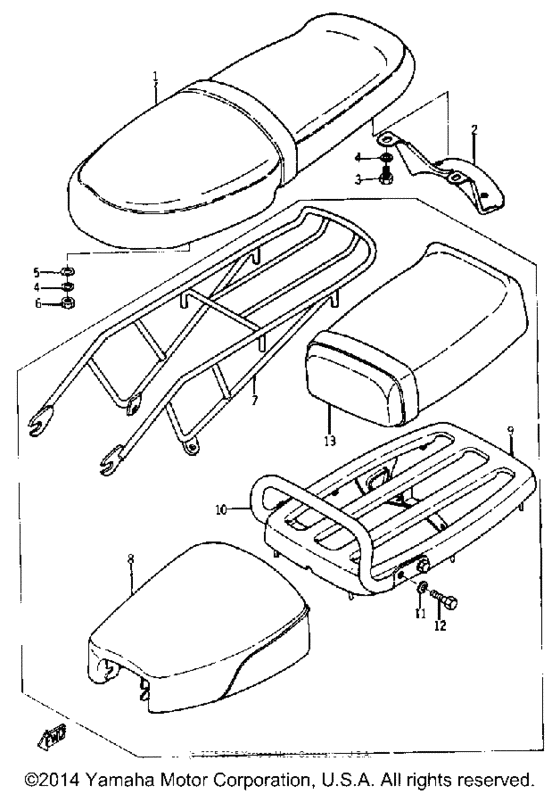

Seat - carrier Diagram Yamaha YA6
- Year
- 1966
- Sales region
- USA
- Engine Capacity
- 600
- Model
- YA6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
137-24730-00-00
Double Seat Assembly
|
137-24730-00-00 |
— | ||
|
1
|
1
137-24731-00-00
Cover, Double Seat
|
137-24731-00-00 |
— | ||
|
1
|
1
136-24751-00-00
Cover, Tandem Seat
|
136-24751-00-00 |
— | ||
|
2
|
2
137-24738-00-33
Bracket, Seat
|
137-24738-00-33 |
— | ||
|
3
|
3
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
3
|
3
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
4
|
4
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
5
|
5
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
6
|
6
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
6
|
6
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
7
|
7
137-24830-00-00
Sub Carrier
|
137-24830-00-00 |
— | ||
|
10
|
10
137-24812-00-00
Handle
|
137-24812-00-00 |
— | ||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
