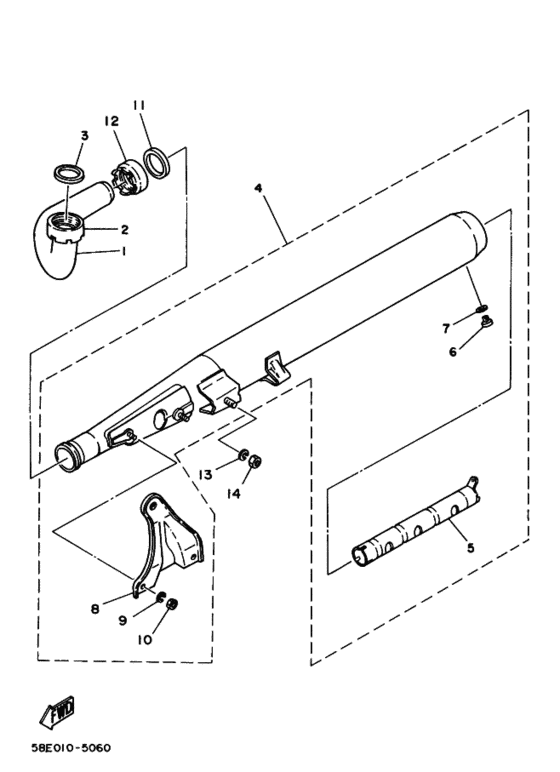

Exhaust Diagram Yamaha YB-1
- Year
- 1996
- Colour
- Bluish Black (BIB; 00MW)
- Model code
- 58E2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
355-14611-01-00 Pipe, Exhaust 1パイプ，エキゾースト １; |
355-14611-01-00 |
US $73.78 |
||
|
2
|
2
1L4-14612-00-00 Nut, Ring |
1L4-14612-00-00 |
from US $15.73 |
||
|
3
|
3
3MT-14613-00-00 Gasket, Exst Pipeガスケツト，エキゾーストパイプ; |
3MT-14613-00-00 |
from US $4.99 |
||
|
4
|
4
58E-14710-00-00
Muffler Assy 1
マフラーアセンブリ １; |
58E-14710-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
マフラーアセンブリ １; |
999-99999-99-00 |
— | ||
|
5
|
5
18A-14753-00-00
Silencer, Exhaust
．サイレンサ，エキゾースト; |
18A-14753-00-00 |
— | ||
|
6
|
6
985-07050-08-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-07050-08-00 |
from US $1.07 |
||
|
7
|
7
92907-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
8
|
8
355-14781-01-00 Stay, Muffler 2．ステー，マフラー ２; |
355-14781-01-00 |
US $26.74 |
||
| replacement | |||||
|
8
|
8
355-14781-02-00 Stay, Muffler 2．ステー，マフラー ２; |
355-14781-02-00 |
US $24.24 |
||
|
9
|
9
92907-06100-00 Washer, Spring．ワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
10
|
10
95317-06600-00 Nut(6Ta)．ナツト; |
95317-06600-00 |
from US $1.21 |
||
|
11
|
11
3NA-14714-01-00 Gasket, Mufflerガスケツト，マフラー; |
3NA-14714-01-00 |
from US $16.43 |
||
|
12
|
12
132-14713-00-00 Nut, Muffler Jointナツト，マフラージヨイント; |
132-14713-00-00 |
US $29.32 |
||
|
13
|
13
92907-08100-00 Washer, Springワツシヤ，スプリング; |
92907-08100-00 |
from US $0.85 |
||
|
14
|
14
95337-08600-00 Nut |
95337-08600-00 |
from US $1.52 |
||
