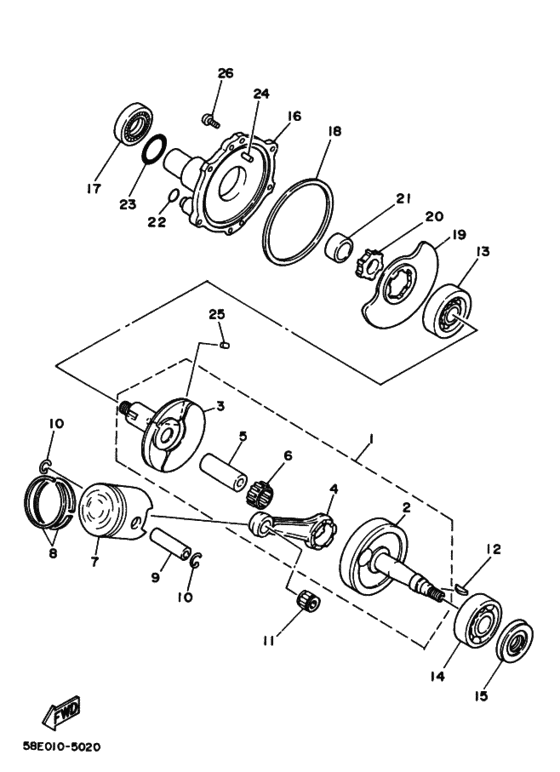

Crankshaft & Piston Diagram Yamaha YB-1
- Year
- 1996
- Colour
- Very Dark Blue Metallic 3 (VDBM3; 0266)
- Model code
- 58E2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3E8-11400-00-00 Crankshaft Assy |
3E8-11400-00-00 |
US $480.09 |
||
|
2
|
2
3E8-11412-00-00
Crank 1
．クランク １; |
3E8-11412-00-00 |
— | ||
|
3
|
3
3E8-11422-00-00
Crank 2
．クランク ２; |
3E8-11422-00-00 |
— | ||
|
4
|
4
517-11651-02-00 Rod, Connecting．ロツド，コネクテイング; |
517-11651-02-00 |
US $123.10 |
||
|
5
|
5
257-11681-00-00
Pin, Crank 1
．ピン，クランク １; |
257-11681-00-00 |
— | ||
| replacement | |||||
|
5
|
5
257-11681-10-00 Pin, Crank 1．ピン，クランク １; |
257-11681-10-00 |
from US $29.75 |
||
|
6
|
6
933-10418-T0-00
Bearing Cylinder #10
．ベアリング; |
933-10418-T0-00 |
— | ||
| replacement | |||||
|
6
|
6
93310-418C4-00 Bearing Cylinder #10．ベアリング; |
93310-418C4-00 |
from US $19.69 |
||
|
7
|
7
45V-11631-00-A0 Piston (Std)ＳＴＤ |
45V-11631-00-A0 |
US $74.74 |
||
| replacement | |||||
|
7
|
7
45V-11631-01-A0 Piston (Std)ＳＴＤ |
45V-11631-01-A0 |
US $74.74 |
||
|
8
|
8
260-11601-02-00 Piston Ring Set (Std)ピストンリングセツト ; ＳＴＤ |
260-11601-02-00 |
from US $50.70 |
||
|
9
|
9
102-11633-02-00 Pin, Piston |
102-11633-02-00 |
from US $8.84 |
||
|
10
|
10
93450-13022-00 Circlipサークリツプ; |
93450-13022-00 |
from US $1.70 |
||
|
11
|
11
93310-11268-00 Bearing |
93310-11268-00 |
from US $9.15 |
||
|
12
|
12
90280-03017-00 Key, Woodruffキー，ウツドラフ; |
90280-03017-00 |
from US $1.81 |
||
|
13
|
13
93306-30302-00 Brg,r-B 6303 47Mm 115G Nkベアリング ; Ｂ６３０３Ｃ３ |
93306-30302-00 |
from US $19.55 |
||
|
14
|
14
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
15
|
15
93102-20009-00 Oil Sealオイルシール; |
93102-20009-00 |
from US $6.52 |
||
|
16
|
16
283-13551-00-00
Cover, Valve
カバー，バルブ; |
283-13551-00-00 |
— | ||
|
17
|
17
93103-28012-00 Oil Sealオイルシール; |
93103-28012-00 |
from US $9.63 |
||
|
18
|
18
180-13554-00-00 Ring, Rubberリング，ラバー; |
180-13554-00-00 |
from US $6.88 |
||
|
19
|
19
257-13512-01-00
Valve,rotary
バルブ，ロータリー; |
257-13512-01-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99030-82-00
Valve, Rotary
バルブ，ロータリー; |
999-99030-82-00 |
— | ||
|
20
|
20
257-13515-00-00
Collar, Valve
カラー，バルブ; |
257-13515-00-00 |
— | ||
| replacement | |||||
|
20
|
20
257-13515-01-00 Collar, Valveカラー，バルブ; |
257-13515-01-00 |
US $7.93 |
||
|
21
|
21
90387-17135-00 Collarカラー; |
90387-17135-00 |
US $14.31 |
||
|
22
|
22
93210-12014-00 O-Ring |
93210-12014-00 |
from US $4.96 |
||
|
23
|
23
93210-23029-00 O-Ring |
93210-23029-00 |
from US $3.40 |
||
|
24
|
24
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.69 |
||
|
25
|
25
93603-08067-00 Pin, Dowel |
93603-08067-00 |
from US $2.98 |
||
|
26
|
26
98507-06014-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06014-00 |
from US $1.07 |
||
