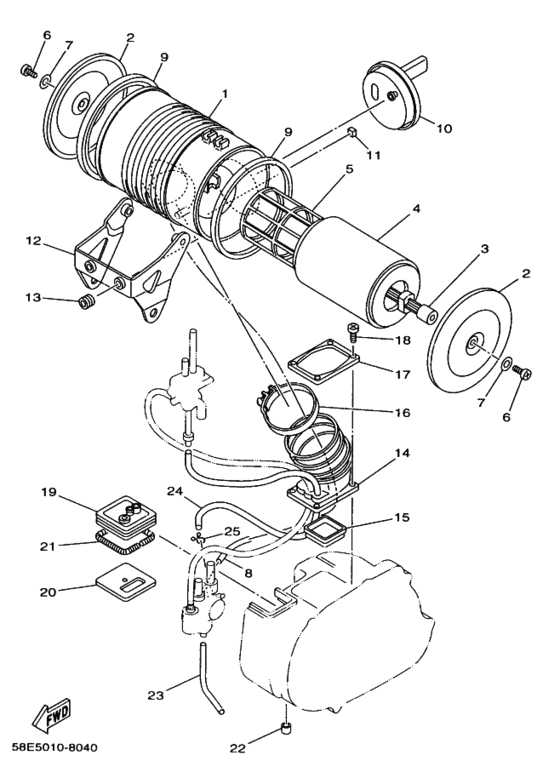

Intake Diagram Yamaha YB-1
- Year
- 1996
- Colour
- Very Dark Blue Metallic 3 (VDBM3; 0266)
- Model code
- 58E2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2N3-14411-00-00 Case, Air Cleaner 1ケース，エアクリーナ １; |
2N3-14411-00-00 |
US $76.68 |
||
|
2
|
2
2N3-14412-00-00 Cap, Cleaner Case 1キヤツプ，クリーナケース １; |
2N3-14412-00-00 |
US $36.06 |
||
|
3
|
3
2N3-14493-00-00 Stay 1ステー １; |
2N3-14493-00-00 |
US $11.33 |
||
|
4
|
4
2U0-14451-00-00 Element, Air Cleanerエレメント，エアクリーナ; |
2U0-14451-00-00 |
US $18.99 |
||
|
5
|
5
2U0-14458-00-00 Guide |
2U0-14458-00-00 |
US $10.06 |
||
|
6
|
6
98904-06010-00 Screw, Bind(3Ah) |
98904-06010-00 |
from US $1.21 |
||
| replacements | |||||
|
6
|
6
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
|
6
|
6
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
7
|
7
90430-06017-00 Gasket |
90430-06017-00 |
from US $2.69 |
||
|
8
|
8
90445-07382-00 Hose (L280)ホース; |
90445-07382-00 |
US $9.28 |
||
| replacement | |||||
|
8
|
8
904-45072-G8-00 Hose (L310)ホース; |
904-45072-G8-00 |
from US $6.74 |
||
|
9
|
9
2N3-14476-01-00 Sealシール; |
2N3-14476-01-00 |
US $5.24 |
||
|
10
|
10
58E-14437-00-00
Duct
|
58E-14437-00-00 |
— | ||
|
11
|
11
278-16165-00-00
Absorber
アブソーバ; |
278-16165-00-00 |
— | ||
|
12
|
12
58E-14498-00-00 Stay 1ステー １; |
58E-14498-00-00 |
US $26.64 |
||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
ステー １; |
999-99999-99-00 |
— | ||
|
13
|
13
90480-10091-00 Grommet (214-21746-00) |
90480-10091-00 |
from US $2.83 |
||
|
14
|
14
58E-14453-00-00
Joint, Air Cleaner 1
ジヨイント，エアクリーナ １; |
58E-14453-00-00 |
— | ||
|
15
|
15
4A5-14458-00-00
Guide
|
4A5-14458-00-00 |
— | ||
|
16
|
16
90450-53061-00 Hose Clamp Assy(8Ax)クランプ，ホース; |
90450-53061-00 |
from US $4.96 |
||
| replacement | |||||
|
16
|
16
904-50530-08-00 Hose Clamp Assyクランプ，ホース; |
904-50530-08-00 |
from US $4.11 |
||
|
17
|
17
4A5-14417-00-00
Cover 1
カバー １; |
4A5-14417-00-00 |
— | ||
|
18
|
18
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
19
|
19
288-14481-02-00 Cap, Carburetor |
288-14481-02-00 |
from US $19.41 |
||
|
20
|
20
58E-14452-00-00
Seal
シール; |
58E-14452-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
シール; |
999-99999-99-00 |
— | ||
|
21
|
21
905-06060-95-00
Spring, Tension
|
905-06060-95-00 |
— | ||
| replacement | |||||
|
21
|
21
905-06062-61-00 Spring, Tension (8R4) |
905-06062-61-00 |
from US $1.98 |
||
|
22
|
22
257-15433-00-00 Cleaner, Drainクリーナ，ドレーン; |
257-15433-00-00 |
from US $9.40 |
||
|
23
|
23
90445-05013-00 Hose (L200)ホース; |
90445-05013-00 |
from US $1.73 |
||
| replacement | |||||
|
23
|
23
904-4505N-13-00 Hose (L200)ホース; |
904-4505N-13-00 |
from US $3.33 |
||
|
24
|
24
90445-070J5-00 Hose (L310)ホース; |
90445-070J5-00 |
from US $10.91 |
||
| replacement | |||||
|
24
|
24
904-45072-G8-00 Hose (L310)ホース; |
904-45072-G8-00 |
from US $6.74 |
||
|
25
|
25
90467-07029-00 Clip |
90467-07029-00 |
from US $1.81 |
||
