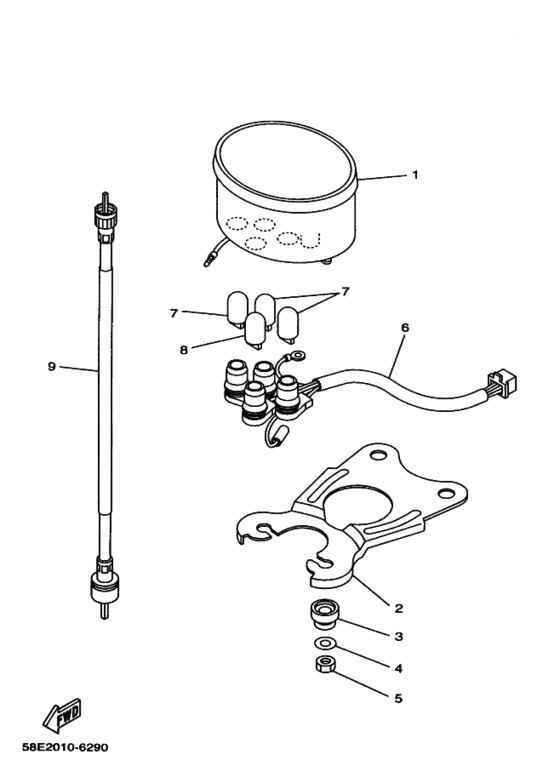

Meter air flow (58E2) Diagram Yamaha YB-1
- Year
- 1996
- Colour
- Fine Red (FRD; 00LN)
- Model code
- 58E2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58E-83510-70-00
Speedometer Assy
スピードメータアセンブリ; |
58E-83510-70-00 |
— | ||
|
2
|
2
58E-83519-10-00
Bracket, Meter
ブラケツト，メータ; |
58E-83519-10-00 |
— | ||
|
3
|
3
58E-83523-70-00 Damper |
58E-83523-70-00 |
US $6.02 |
||
|
4
|
4
902-01052-E2-00
Washer, Plate
ワツシヤ，プレート; |
902-01052-E2-00 |
— | ||
| replacement | |||||
|
4
|
4
90201-05032-00 Washer Plate 803835240000ワツシヤ，プレート; |
90201-05032-00 |
from US $1.81 |
||
|
5
|
5
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
5
|
5
95317-05600-00 Nut |
95317-05600-00 |
from US $1.36 |
||
|
6
|
6
58E-83536-70-00
Socket, Meter
ソケツト，メータ; |
58E-83536-70-00 |
— | ||
|
7
|
7
4G1-84744-00-00 Bulb (12V-3.4W T10)１２Ｖ−３．４Ｗ |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
7
|
7
4G1-84744-00-XX
Bulb (12V-3.4W T10)
１２Ｖ−３．４Ｗ |
4G1-84744-00-XX |
— | ||
|
8
|
8
1YT-83517-00-00 Bulb (12V-1.7W T10)バルブ ; １２Ｖ−１．７Ｗ |
1YT-83517-00-00 |
US $3.26 |
||
| replacement | |||||
|
8
|
8
3GM-83517-00-00 Bulb (12V-1.7W)バルブ ; １２Ｖ−１．７Ｗ |
3GM-83517-00-00 |
from US $3.26 |
||
|
9
|
9
241-83550-02-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
241-83550-02-00 |
US $28.90 |
||
| replacement | |||||
|
9
|
9
241-83550-03-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
241-83550-03-00 |
from US $18.04 |
||
