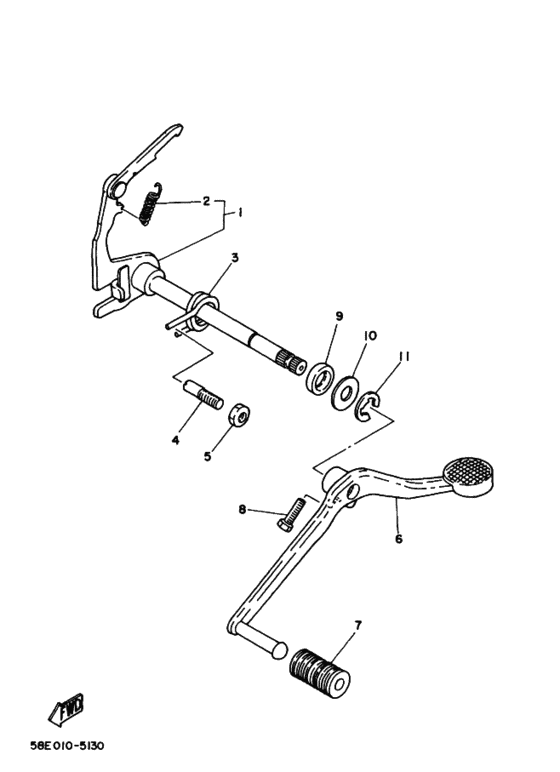

Shift shaft Diagram Yamaha YB-1
- Year
- 1996
- Colour
- Fine Red (FRD; 00LN)
- Model code
- 58E2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
257-18101-03-00 Shift Shaft Assembly 1 |
257-18101-03-00 |
US $83.90 |
||
|
2
|
2
90506-09009-00 Spring, Tension．スプリング，テンシヨン; |
90506-09009-00 |
from US $2.55 |
||
|
3
|
3
90508-32207-00 Spring, Torsion (132-18124-00)スプリング，トーシヨン; |
90508-32207-00 |
from US $8.50 |
||
|
4
|
4
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
5
|
5
95337-08600-00 Nut |
95337-08600-00 |
from US $1.52 |
||
|
6
|
6
257-18111-01-00 Pedal, Shift |
257-18111-01-00 |
from US $41.11 |
||
|
7
|
7
132-18113-01-00 Cover, Shift Pedalカバー，シフトペダル; |
132-18113-01-00 |
from US $2.02 |
||
|
8
|
8
970-27060-20-00
Bolt
ボルト; |
970-27060-20-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-20-00 Boltボルト; |
970-17060-20-00 |
from US $1.16 |
||
|
9
|
9
93102-12106-00 Oil Seal (Sd 12-22-5 Hs)オイルシール ; ＳＤ １２−２２−５ ＨＳ |
93102-12106-00 |
from US $3.72 |
||
| replacement | |||||
|
9
|
9
931-02123-21-00 Oil Sealオイルシール ; ＳＤ １２−２２−５ ＨＳ |
931-02123-21-00 |
from US $4.86 |
||
|
10
|
10
90201-12575-00 Washer, Plate (353)ワツシヤ，プレート; |
90201-12575-00 |
from US $1.70 |
||
|
11
|
11
99006-10600-00 Circlipサークリツプ; |
99006-10600-00 |
from US $1.39 |
||
