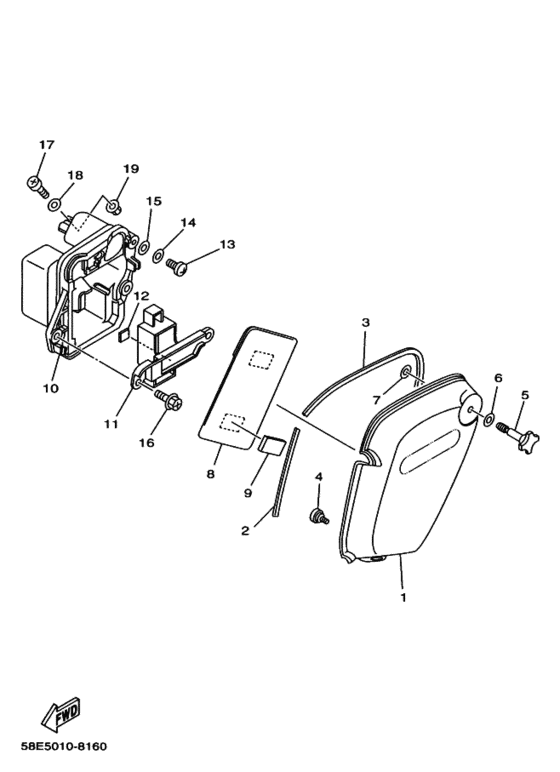

Side cover Diagram Yamaha YB-1
- Year
- 1996
- Colour
- Fine Red (FRD; 00LN)
- Model code
- 58E2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10R-21711-00-LN
Cover, Side 1
カバー，サイド １; ＵＲ フアインレツドグラフィック無 |
10R-21711-00-LN |
— | ||
|
2
|
2
58E-2175N-00-00 Cover, Flangeカバー，フランジ; Ｌ＝１２５ |
58E-2175N-00-00 |
US $5.44 |
||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
カバー，フランジ; Ｌ＝１２５ |
999-99999-99-00 |
— | ||
|
3
|
3
58E-2175N-10-00 Cover, Flangeカバー，フランジ; Ｌ＝４７０ |
58E-2175N-10-00 |
US $5.44 |
||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
カバー，フランジ; Ｌ＝４７０ |
999-99999-99-00 |
— | ||
|
4
|
4
141-21717-00-00 Damperダンパ; |
141-21717-00-00 |
from US $3.26 |
||
|
5
|
5
122-21724-00-00 Knob, Side Cover 2ノブ，サイドカバー ２; |
122-21724-00-00 |
US $14.45 |
||
|
6
|
6
90202-06007-00 Washer, Plateワツシヤ，プレート; |
90202-06007-00 |
from US $1.70 |
||
|
7
|
7
90179-06034-00 Nut, Spec''l Shape (256-27218-0 |
90179-06034-00 |
from US $3.12 |
||
|
8
|
8
4K5-28186-00-00 Pouchポーチ; |
4K5-28186-00-00 |
from US $13.88 |
||
|
9
|
9
4K5-2814E-10-00 Hook |
4K5-2814E-10-00 |
from US $3.26 |
||
|
10
|
10
58E-2177G-00-00
Box, Battery
ボツクス，バツテリ; |
58E-2177G-00-00 |
— | ||
|
11
|
11
58E-2177T-00-00
Plate, Battery
プレート; |
58E-2177T-00-00 |
— | ||
|
12
|
12
34M-2139X-00-00 Damper |
34M-2139X-00-00 |
from US $4.25 |
||
|
13
|
13
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
14
|
14
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
15
|
15
902-01065-F3-00
Washer, Plate
ワツシヤ，プレート; |
902-01065-F3-00 |
— | ||
| replacement | |||||
|
15
|
15
90201-06020-00 Washer, Plateワツシヤ，プレート; |
90201-06020-00 |
from US $1.56 |
||
|
16
|
16
90159-06092-00 Screw, With Washer |
90159-06092-00 |
from US $1.70 |
||
|
17
|
17
985-07050-20-00
Screw, Pan Head(4My)
スクリユ，パンヘツド; |
985-07050-20-00 |
— | ||
| replacement | |||||
|
17
|
17
98517-05020-00 Screw, Pan Headスクリユ，パンヘツド; |
98517-05020-00 |
from US $1.70 |
||
|
18
|
18
92907-05200-00 Washer |
92907-05200-00 |
from US $1.36 |
||
|
19
|
19
956-07052-00-00 Nut, U Flangeナツト，セルフロツキング; |
956-07052-00-00 |
from US $1.52 |
||
