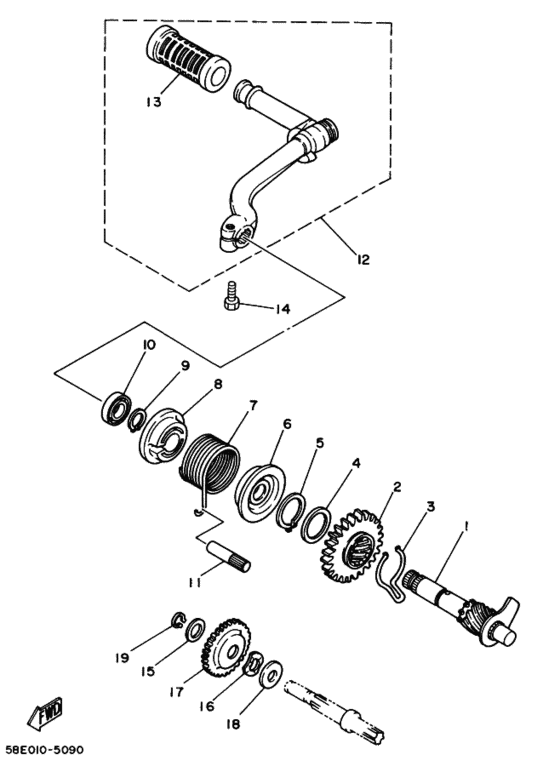

Starter Diagram Yamaha YB-1
- Year
- 1996
- Colour
- Fine Red (FRD; 00LN)
- Model code
- 58E2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
305-15660-04-00 Kick Axle Assy |
305-15660-04-00 |
from US $133.19 |
||
|
2
|
2
305-15641-00-00 Gear, Kick (26T)ギア，キツク ; ２６Ｔ |
305-15641-00-00 |
US $47.80 |
||
|
3
|
3
90468-26048-00 Clip |
90468-26048-00 |
from US $1.94 |
||
|
4
|
4
117-15644-00-00 Washer, Plate (T=1.0) |
117-15644-00-00 |
from US $1.70 |
||
| replacement | |||||
|
4
|
4
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.81 |
||
|
5
|
5
93410-25017-00 Circlipサークリツプ; |
93410-25017-00 |
from US $2.70 |
||
|
6
|
6
132-15664-01-00 Guide, Spring |
132-15664-01-00 |
from US $11.61 |
||
|
7
|
7
90508-26136-00 Spring, Torsionスプリング，トーシヨン; |
90508-26136-00 |
from US $8.93 |
||
|
8
|
8
132-15676-01-00 Cover, Springカバー，スプリング; |
132-15676-01-00 |
from US $9.92 |
||
|
9
|
9
99009-15400-00 Circlip(1Ar)サークリツプ; |
99009-15400-00 |
from US $1.18 |
||
|
10
|
10
93109-15001-00 Oil Sealオイルシール; |
93109-15001-00 |
from US $4.43 |
||
|
11
|
11
257-15668-00-00 Stopper |
257-15668-00-00 |
from US $3.67 |
||
|
12
|
12
357-15620-02-00 Kick Crank Assyキツククランクアセンブリ; |
357-15620-02-00 |
from US $95.45 |
||
|
13
|
13
156-15618-01-00 Cover, Kick Lever．カバー，キツクレバー; |
156-15618-01-00 |
from US $4.58 |
||
|
14
|
14
970-17060-25-00 Boltボルト; |
970-17060-25-00 |
from US $1.36 |
||
|
15
|
15
90201-13202-00 Washer Plate 201156530000ワツシヤ，プレート; |
90201-13202-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-13013-00 Washer, Plateワツシヤ，プレート; |
90201-13013-00 |
from US $1.70 |
||
|
16
|
16
90206-15021-00 Washer, Waveワツシヤ，ウエイブ; |
90206-15021-00 |
from US $3.12 |
||
|
17
|
17
257-15651-01-00 Gear, Kick Idleギア，キツクアイドル ; ２６Ｔ |
257-15651-01-00 |
US $71.57 |
||
|
18
|
18
132-15653-00-10
Washer
|
132-15653-00-10 |
— | ||
|
19
|
19
99009-13400-00 Circlipサークリツプ; |
99009-13400-00 |
from US $2.41 |
||
