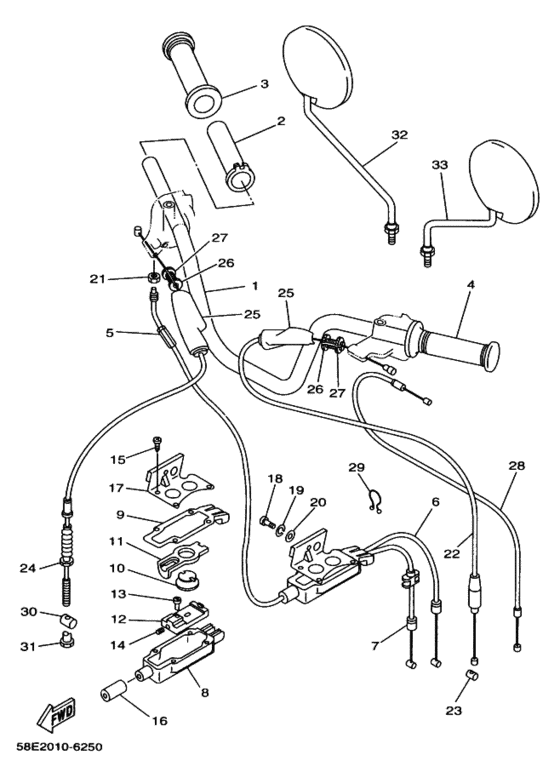

Steering handle & cable Diagram Yamaha YB-1
- Year
- 1998
- Colour
- Light Gray Metallic 3 (LGM3; 0137)
- Model code
- 58E5
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Note
- ; C:グリーン D:レッド
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58E-26111-00-00 Handlebarハンドルバー; |
58E-26111-00-00 |
US $123.65 |
||
|
2
|
2
1V1-26243-00-00 Tube, Thrtl Guideチユーブ，スロツトルガイド; |
1V1-26243-00-00 |
from US $17.10 |
||
|
3
|
3
2N3-26242-00-00 Grip Rh (R.h)グリツプ ; ライト; ブラツク |
2N3-26242-00-00 |
from US $6.23 |
||
| replacement | |||||
|
3
|
3
2N3-26242-01-00 GRIP RIGHTグリツプ ; ライト; ブラツク |
2N3-26242-01-00 |
from US $9.58 |
||
|
4
|
4
2N3-26241-00-00
Grip
グリツプ ; レフト; ブラツク |
2N3-26241-00-00 |
— | ||
| replacement | |||||
|
4
|
4
2N3-26241-01-00 GRIPグリツプ ; レフト; ブラツク |
2N3-26241-01-00 |
from US $7.76 |
||
|
5
|
5
58E-26311-10-00
Cable, Throttle 1
ケーブル，スロツトル １; |
58E-26311-10-00 |
— | ||
|
6
|
6
4A5-26312-01-00
Cable, Throttle 2
ケーブル，スロツトル ２; |
4A5-26312-01-00 |
— | ||
|
7
|
7
4A5-26321-01-00
Cable, Pump
ケーブル，ポンプ; |
4A5-26321-01-00 |
— | ||
|
8
|
8
2T5-26261-01-00 Connector, Cableコネクタ，ケーブル; |
2T5-26261-01-00 |
US $3.12 |
||
| replacement | |||||
|
8
|
8
2T5-26261-02-00 Connector, Cableコネクタ，ケーブル; |
2T5-26261-02-00 |
US $3.12 |
||
|
9
|
9
2T5-26262-00-00 Cap, Cable Connectorキヤツプ，ケーブルコネクタ; |
2T5-26262-00-00 |
US $10.48 |
||
|
10
|
10
2T5-26273-00-00 Rotorロータ; |
2T5-26273-00-00 |
from US $3.26 |
||
|
11
|
11
2T5-26274-00-00 Guide, Rotorガイド，ロータ; |
2T5-26274-00-00 |
from US $5.99 |
||
|
12
|
12
2T5-26244-00-00 Slider, Throttle |
2T5-26244-00-00 |
from US $3.72 |
||
|
13
|
13
2T5-26267-00-00 Pin |
2T5-26267-00-00 |
from US $2.02 |
||
|
14
|
14
90501-05512-00 Spring, Compression |
90501-05512-00 |
from US $1.70 |
||
|
15
|
15
90167-03004-00 Screw, Tapping |
90167-03004-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
97707-30514-00 Screw, Tapping |
97707-30514-00 |
from US $2.27 |
||
|
16
|
16
156-26329-00-00 Cap, Rubberキヤツプ，ラバー; |
156-26329-00-00 |
US $3.12 |
||
|
17
|
17
58E-21364-00-00
Holder, Cable Cylinder
ホルダ，ケーブルシリンダ; |
58E-21364-00-00 |
— | ||
| replacement | |||||
|
17
|
17
58E-21364-01-00
Holder, Cable Cylinder
ホルダ，ケーブルシリンダ; |
58E-21364-01-00 |
— | ||
|
18
|
18
97017-06016-00 Boltボルト; |
97017-06016-00 |
from US $1.39 |
||
|
20
|
20
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
21
|
21
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
22
|
22
58E-26335-10-00 Cable, clutchケーブル，クラツチ; |
58E-26335-10-00 |
US $75.71 |
||
|
23
|
23
164-26363-00-00 End, Cableエンド，ケーブル; |
164-26363-00-00 |
from US $3.54 |
||
|
24
|
24
58E-26341-10-00
Wire, Brake 1
ケーブル，ブレーキ; |
58E-26341-10-00 |
— | ||
|
25
|
25
498-26372-00-00 Cover, Leverカバー，ハンドルレバー １; |
498-26372-00-00 |
from US $6.38 |
||
|
26
|
26
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
26
|
26
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
27
|
27
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
27
|
27
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
28
|
28
58E-26331-20-00 Cable, Starter 1ケーブル，スタータ １; |
58E-26331-20-00 |
US $18.14 |
||
|
29
|
29
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.70 |
||
|
30
|
30
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
31
|
31
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
32
|
32
5AU-26290-00-00 Rear View Mirror Assy (Right)バツクミラーアセンブリ ; ライト |
5AU-26290-00-00 |
from US $28.08 |
||
|
33
|
33
5AU-26280-00-00 Rear View Mirror Assy (Left)バツクミラーアセンブリ ; レフト |
5AU-26280-00-00 |
from US $28.08 |
||
