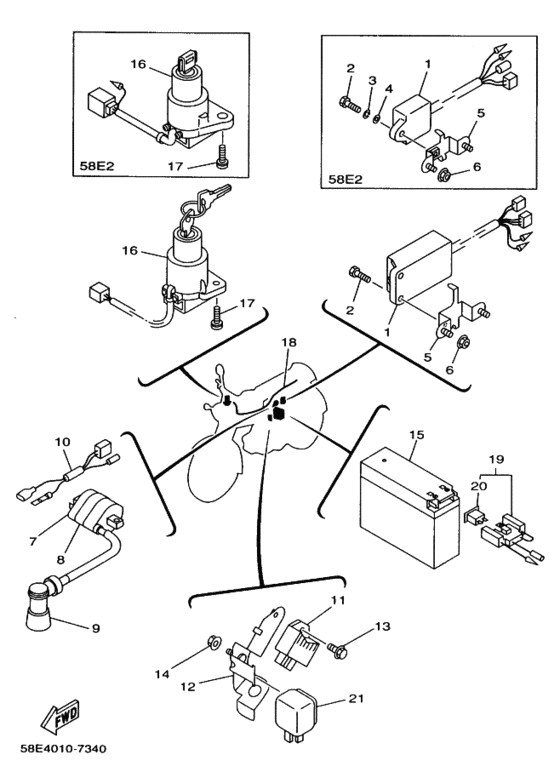

Electrical 1 Diagram Yamaha YB-1
- Year
- 1999
- Colour
- Very Dark Blue Metallic 9 (VDBM9; 0677)
- Model code
- 58E7
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58E-85540-30-00 C.d.i. Unit Assy |
58E-85540-30-00 |
US $138.40 |
||
|
2
|
2
98507-05016-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-05016-00 |
from US $1.18 |
||
|
5
|
5
58E-85542-00-00
Bracket
|
58E-85542-00-00 |
— | ||
|
6
|
6
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
7
|
7
4RP-82310-00-00 Ignition Coil Assy |
4RP-82310-00-00 |
US $80.61 |
||
|
8
|
8
4W8-82311-00-00
Band, Coil Fitting
|
4W8-82311-00-00 |
— | ||
|
9
|
9
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
10
|
10
58E-82509-00-00
Wire, Sub Lead
ワイヤ，サブリード; |
58E-82509-00-00 |
— | ||
|
11
|
11
4JP-81960-01-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
4JP-81960-01-00 |
US $113.57 |
||
|
12
|
12
58E-81915-11-00
Plate, Regulator Fitting
プレート，レギユレータフイツテイング; |
58E-81915-11-00 |
— | ||
|
13
|
13
950-27060-12-00 Bolt, Flangeボルト，フランジ; |
950-27060-12-00 |
from US $1.28 |
||
|
14
|
14
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
15
|
15
90793-25007-00
Battery Assy(Gt4B-5 12V-2.5Ah)
バツテリアセンブリ; ＧＴ４Ｂ−５ １２Ｖ−２．５ＡＨ; Ｇ．Ｓ． |
90793-25007-00 |
— | ||
| replacements | |||||
|
15
|
15
GT4-B5000-00-00
Battery
バツテリアセンブリ; ＧＴ４Ｂ−５ １２Ｖ−２．５ＡＨ; Ｇ．Ｓ． |
GT4-B5000-00-00 |
— | ||
|
15
|
15
4JS-82100-00-00
Battery Assy
バツテリアセンブリ; ＧＴ４Ｂ−５ １２Ｖ−２．５ＡＨ; Ｇ．Ｓ． |
4JS-82100-00-00 |
— | ||
|
16
|
16
58E-82021-00-00
Key Set
ＡＰ ＊１ |
58E-82021-00-00 |
— | ||
|
16
|
16
58E-82501-00-00 Main Switch Steering Lock |
58E-82501-00-00 |
from US $86.63 |
||
|
17
|
17
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
18
|
18
58E-82590-32-00
Wire Harness Assy
|
58E-82590-32-00 |
— | ||
|
19
|
19
58E-82115-01-00 Wire, Plus Leadワイヤ，プラスリード; |
58E-82115-01-00 |
US $25.13 |
||
|
20
|
20
2KW-82151-00-00 Fuse (7.5A-Bl)．フユーズ ; ７．５Ａ−ＢＬ |
2KW-82151-00-00 |
from US $1.56 |
||
|
21
|
21
29G-83350-20-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
29G-83350-20-00 |
from US $47.25 |
||
