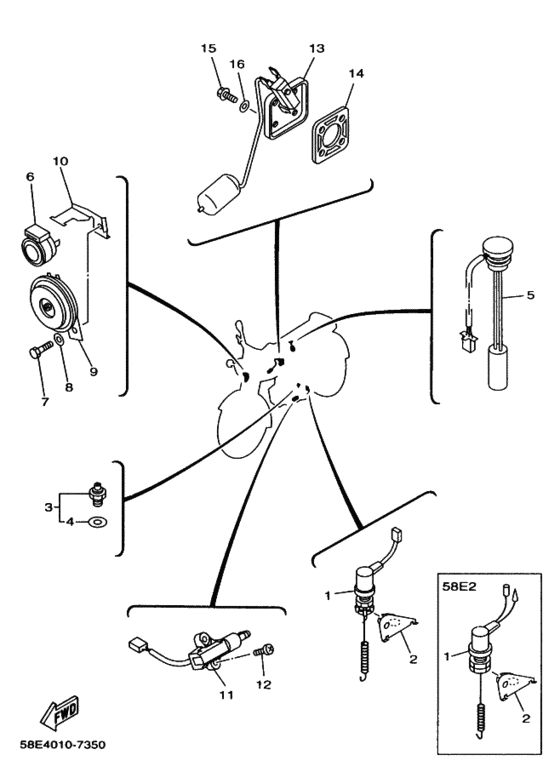

Electrical 2 Diagram Yamaha YB-1
- Year
- 1999
- Colour
- Very Dark Blue Metallic 9 (VDBM9; 0677)
- Model code
- 58E7
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4HV-82530-00-00 Stop Switch Assy |
4HV-82530-00-00 |
US $32.16 |
||
|
2
|
2
46U-82539-00-00 Stay, Stop Switchステー，ストツプスイツチ; |
46U-82539-00-00 |
US $4.82 |
||
|
3
|
3
136-82540-03-00 Reverse Switch Assemblyニユートラルスイツチアセンブリ; |
136-82540-03-00 |
from US $18.84 |
||
|
4
|
4
90201-12790-00 Washer, Plate．ワツシヤ，プレート; |
90201-12790-00 |
from US $1.28 |
||
|
5
|
5
4HV-85720-01-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
4HV-85720-01-00 |
from US $41.29 |
||
| replacement | |||||
|
5
|
5
4HV-85720-03-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
4HV-85720-03-00 |
from US $44.06 |
||
|
6
|
6
53L-83390-20-00
Audio Pilot Assy
オーデイオパイロツトアセンブリ; |
53L-83390-20-00 |
— | ||
|
7
|
7
970-27060-12-00
Bolt, Hexagon
ボルト; |
970-27060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
97017-06012-00 Boltボルト; |
97017-06012-00 |
from US $1.39 |
||
|
8
|
8
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
9
|
9
4CK-83371-00-00 Hornホーン; |
4CK-83371-00-00 |
from US $40.58 |
||
| replacements | |||||
|
9
|
9
5SB-H3371-00-00
Horn
ホーン; |
5SB-H3371-00-00 |
— | ||
|
9
|
9
4CU-H3371-03-00 Hornホーン; |
4CU-H3371-03-00 |
US $53.59 |
||
|
9
|
9
35R-83371-30-00 Hornホーン; |
35R-83371-30-00 |
from US $40.58 |
||
|
10
|
10
58E-83392-00-00
Stay, Audio Pilot
ステー，オーデイオパイロツト; |
58E-83392-00-00 |
— | ||
|
11
|
11
3LD-82566-50-00 Switch, Side Stand |
3LD-82566-50-00 |
from US $66.18 |
||
| replacement | |||||
|
11
|
11
3LD-82566-51-00 Switch, Side Stand |
3LD-82566-51-00 |
from US $56.36 |
||
|
12
|
12
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
12
|
12
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
13
|
13
58E-85752-10-00 Sender Unit Assy, Fuel Meterセンダユニツトアセンブリ，フユエルメータ; |
58E-85752-10-00 |
US $53.21 |
||
|
14
|
14
58X-85753-01-00 Gasket, Sender Unit |
58X-85753-01-00 |
US $13.16 |
||
|
15
|
15
90105-05361-00 Bolt, Flangeボルト，ワツシヤベースト; |
90105-05361-00 |
from US $1.28 |
||
|
16
|
16
90202-04222-00 Washer, Plateワツシヤ，プレート; |
90202-04222-00 |
US $2.41 |
||
