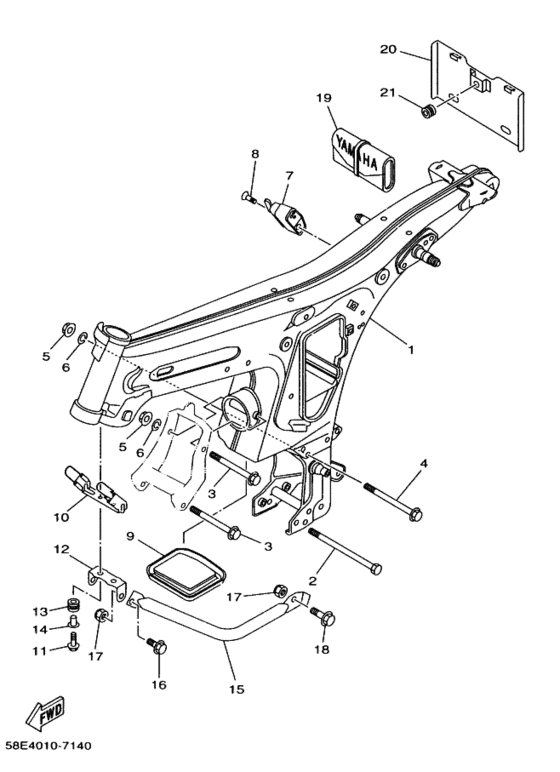

Frame Diagram Yamaha YB-1
- Year
- 1999
- Colour
- Very Dark Blue Metallic 9 (VDBM9; 0677)
- Model code
- 58E7
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58E-21110-02-33
Frame Comp
フレームコンプリート; ヤマハブラツク |
58E-21110-02-33 |
— | ||
|
2
|
2
95827-08130-00 Bolt, Flangeボルト，ヘキサゴン; |
95827-08130-00 |
US $5.38 |
||
|
3
|
3
95807-08095-00 Bolt, Flange |
95807-08095-00 |
US $3.40 |
||
|
4
|
4
95827-08120-00 Bolt, Flange |
95827-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
4
|
4
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
5
|
5
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
6
|
6
92907-08100-00 Washer, Springワツシヤ，スプリング; |
92907-08100-00 |
from US $0.85 |
||
|
7
|
7
26H-21308-00-00
Helmet Hanger Assy
ヘルメツトハンガーアセンブリ; |
26H-21308-00-00 |
— | ||
| replacement | |||||
|
7
|
7
26H-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
26H-21308-01-00 |
from US $44.85 |
||
|
8
|
8
90149-06154-00 Screw |
90149-06154-00 |
from US $1.56 |
||
|
9
|
9
2N3-21268-00-00 Sealシール; |
2N3-21268-00-00 |
US $6.43 |
||
|
10
|
10
58E-21339-01-00 Guide, Wireガイド，ワイヤ; |
58E-21339-01-00 |
US $34 |
||
|
11
|
11
90105-06601-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-06601-00 |
from US $1.07 |
||
| replacements | |||||
|
11
|
11
958-17060-25-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
958-17060-25-00 |
from US $1.18 |
||
|
11
|
11
95822-06025-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
95822-06025-00 |
from US $0.97 |
||
|
12
|
12
58E-21158-00-00
Bracket
|
58E-21158-00-00 |
— | ||
|
13
|
13
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.94 |
||
|
14
|
14
903-87063-E6-00
Collar
カラー; |
903-87063-E6-00 |
— | ||
| replacement | |||||
|
14
|
14
90387-06158-00 Collarカラー; |
90387-06158-00 |
from US $1.66 |
||
|
15
|
15
596-21191-00-00 Downtubeダウンチユーブ; |
596-21191-00-00 |
US $26.49 |
||
|
16
|
16
958-17080-16-00 Bolt, Flangeボルト，フランジ; |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
16
|
16
901-0508X-15-00
Blt,hex,1/4-20X5/8
ボルト，フランジ; |
901-0508X-15-00 |
— | ||
|
17
|
17
956-17082-00-00
Nut, Self-Locking
|
956-17082-00-00 |
— | ||
| replacement | |||||
|
17
|
17
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
18
|
18
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
19
|
19
4VL-28100-00-00
Tool Kit
ツールキツト; |
4VL-28100-00-00 |
— | ||
|
20
|
20
58E-28189-00-00
Plate, Number Support
プレート，ナンバーサポート; |
58E-28189-00-00 |
— | ||
|
21
|
21
90480-11298-00 Grommet |
90480-11298-00 |
from US $1.35 |
||
