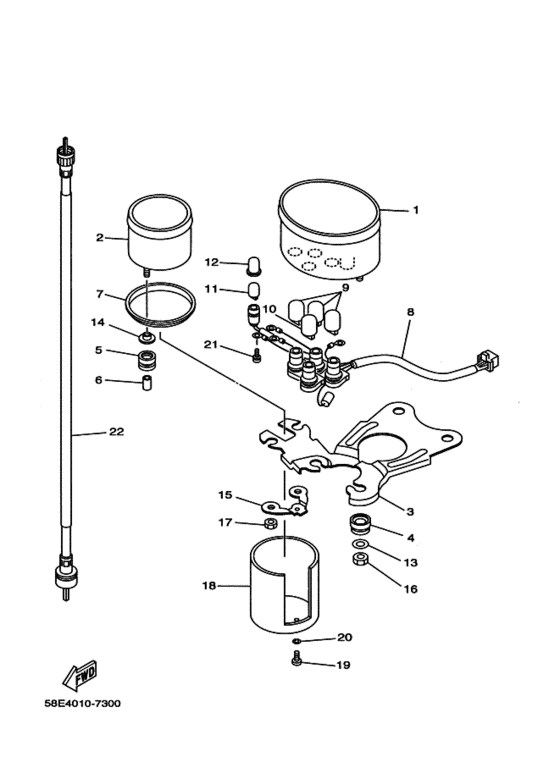

Meter air flow (58E7) Diagram Yamaha YB-1
- Year
- 1999
- Colour
- Very Dark Blue Metallic 9 (VDBM9; 0677)
- Model code
- 58E7
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- YB-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58E-83510-80-00 Speedometer Assyスピードメータアセンブリ; |
58E-83510-80-00 |
US $197.93 |
||
|
2
|
2
58E-85750-80-00 Fuel Meter Assyフユエルメータアセンブリ; |
58E-85750-80-00 |
US $268.03 |
||
|
3
|
3
58E-83519-80-00 Bracket, Meterブラケツト，メータ; |
58E-83519-80-00 |
US $69.14 |
||
|
4
|
4
58E-83523-70-00 Damper |
58E-83523-70-00 |
US $6.02 |
||
|
5
|
5
1FK-83523-00-00 Damper |
1FK-83523-00-00 |
from US $3.60 |
||
|
6
|
6
1AA-83522-00-00 Collarカラー; |
1AA-83522-00-00 |
US $4.26 |
||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
カラー; |
999-99999-99-00 |
— | ||
|
7
|
7
1AA-83592-00-00
Damper
|
1AA-83592-00-00 |
— | ||
|
8
|
8
58E-83536-80-00
Socket, Meter
ソケツト，メータ; |
58E-83536-80-00 |
— | ||
|
9
|
9
4R0-83517-00-00 Bulb (12V-3.4W T10)バルブ ; １２Ｖ−３．４Ｗ，Ｔ１０ |
4R0-83517-00-00 |
US $4.25 |
||
| replacements | |||||
|
9
|
9
4G1-84744-00-XX
Bulb (12V-3.4W T10)
バルブ ; １２Ｖ−３．４Ｗ，Ｔ１０ |
4G1-84744-00-XX |
— | ||
|
9
|
9
4G1-84744-00-00 Bulb (12V-3.4W T10)バルブ ; １２Ｖ−３．４Ｗ，Ｔ１０ |
4G1-84744-00-00 |
US $4.04 |
||
|
10
|
10
1YT-83517-00-00 Bulb (12V-1.7W T10)バルブ ; １２Ｖ−１．７Ｗ，Ｔ１０ |
1YT-83517-00-00 |
US $3.26 |
||
| replacement | |||||
|
10
|
10
3GM-83517-00-00 Bulb (12V-1.7W)バルブ ; １２Ｖ−１．７Ｗ，Ｔ１０ |
3GM-83517-00-00 |
from US $3.26 |
||
|
11
|
11
2GV-83517-00-00 Bulb (12V-1.7W)バルブ ; １２Ｖ−１．７Ｗ，Ｔ６．５ |
2GV-83517-00-00 |
from US $4.53 |
||
| replacement | |||||
|
11
|
11
3FV-83517-00-00 Bulb (12V-1.7W)バルブ ; １２Ｖ−１．７Ｗ，Ｔ６．５ |
3FV-83517-00-00 |
from US $4.99 |
||
|
12
|
12
2YK-83535-00-00
Tube
バルブキヤツプアセンブリ; |
2YK-83535-00-00 |
— | ||
|
13
|
13
1E6-83524-60-00 Washer, Special |
1E6-83524-60-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-05032-00 Washer Plate 803835240000 |
90201-05032-00 |
from US $1.81 |
||
|
14
|
14
1AA-83524-00-00 Washer, Special |
1AA-83524-00-00 |
from US $2.50 |
||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
1AA-8355Y-00-00 Bracket, Meter 2ブラケツト，メータ ２; |
1AA-8355Y-00-00 |
from US $10.87 |
||
|
16
|
16
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
16
|
16
95317-05600-00 Nut |
95317-05600-00 |
from US $1.36 |
||
|
17
|
17
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
18
|
18
1AA-83579-00-00 Cover, Meter 2カバー，メータ ２; |
1AA-83579-00-00 |
from US $36.72 |
||
|
19
|
19
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
20
|
20
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
21
|
21
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
22
|
22
241-83550-02-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
241-83550-02-00 |
US $28.90 |
||
| replacement | |||||
|
22
|
22
241-83550-03-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
241-83550-03-00 |
from US $18.04 |
||
