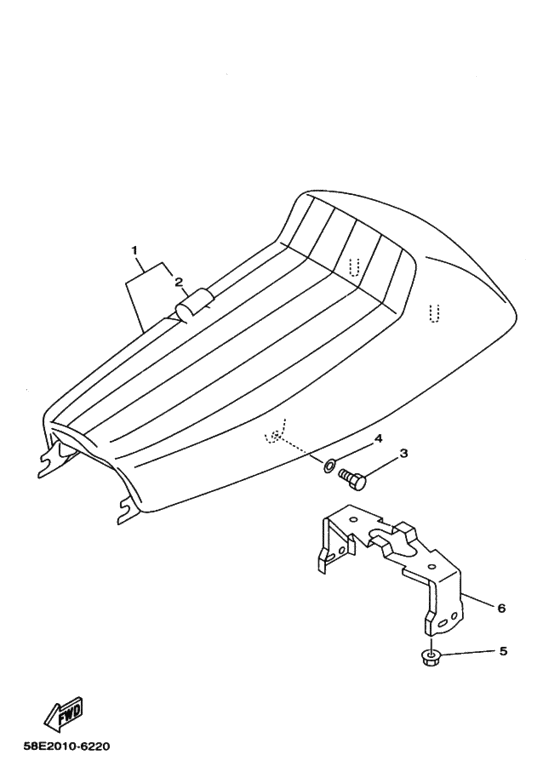

Seat Diagram Yamaha YB-1
- Year
- 1999
- Colour
- Very Dark Blue Metallic 9 (VDBM9; 0677)
- Model code
- 58E7
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- YB-1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58E-24710-20-00 Single Seat Assyシングルシートアセンブリ; ＵＲ ローグロスグレー |
58E-24710-20-00 |
US $288.75 |
||
|
2
|
2
58E-2470F-20-00 Seat Cover Comp．カバー，シート; ＵＲ ローグロスグレー |
58E-2470F-20-00 |
US $96.24 |
||
|
3
|
3
970-17080-16-00 Boltボルト; |
970-17080-16-00 |
from US $1.42 |
||
|
4
|
4
929-07086-00-00 Washer, Plateワツシヤ，プレート; |
929-07086-00-00 |
from US $1.39 |
||
|
5
|
5
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
6
|
6
58E-2474X-00-00
Bracket
|
58E-2474X-00-00 |
— | ||
