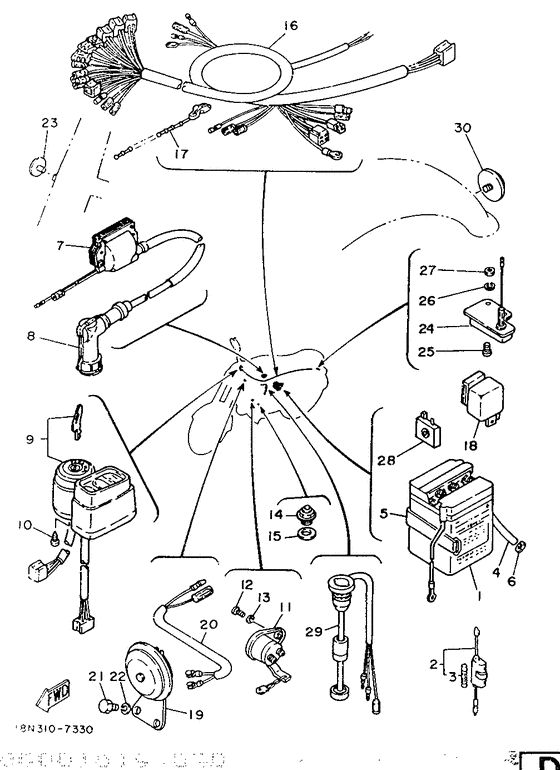

Electrical 1 Diagram Yamaha YB100
- Year
- 1987
- Colour
- Brilliant Red (BR; 0063)
- Model code
- 18N
- Sales region
- England (999)
- Engine Capacity
- 100
- Model
- YB100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
120-82110-29-00 Battery Assy (6N4-2A-2) |
120-82110-29-00 |
US $53.05 |
||
| replacements | |||||
|
01
|
01
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
|
6N4-2A200-00-00 |
— | ||
|
01
|
01
120-82110-15-00
Battery (6N4-2A-2)
|
120-82110-15-00 |
— | ||
|
02
|
02
353-82150-00-00
Fuse Holder Assy
|
353-82150-00-00 |
— | ||
| replacements | |||||
|
02
|
02
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
|
02
|
02
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
03
|
03
116-82151-00-00
Fuse (12V-10A)
|
116-82151-00-00 |
— | ||
| replacement | |||||
|
03
|
03
1A0-82151-00-00 Fuse (12V-10A) |
1A0-82151-00-00 |
from US $4.96 |
||
|
04
|
04
90445-08338-00 Hose (L500) |
90445-08338-00 |
US $10.91 |
||
| replacement | |||||
|
04
|
04
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
05
|
05
2N3-82131-00-00 Band, Battery |
2N3-82131-00-00 |
from US $9.83 |
||
|
06
|
06
10R-82142-00-00 Ring, Battery |
10R-82142-00-00 |
US $4.39 |
||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
2N3-82310-M0-00
Ignition Coil Assy
|
2N3-82310-M0-00 |
— | ||
| replacement | |||||
|
07
|
07
4HL-82310-00-00
Ignition Coil Assy
|
4HL-82310-00-00 |
— | ||
|
08
|
08
512-82370-10-00 Plug Cap AssemblyWith noise suppresser |
512-82370-10-00 |
from US $44.80 |
||
| replacement | |||||
|
08
|
08
7KA-82370-00-00 Plug Cap AssyWith noise suppresser |
7KA-82370-00-00 |
from US $52.92 |
||
|
09
|
09
2R4-82508-50-00
Main Switch Assy
|
2R4-82508-50-00 |
— | ||
| replacement | |||||
|
09
|
09
2R4-8251A-50-00
Main Switch Pilot Lamp Assy
|
2R4-8251A-50-00 |
— | ||
|
10
|
10
97701-40510-00 Screw, Tapping |
97701-40510-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
11
|
11
122-82530-01-00 Stopswitchassy |
122-82530-01-00 |
US $40.73 |
||
| replacement | |||||
|
11
|
11
122-82530-02-00
Stop Switch Assy
|
122-82530-02-00 |
— | ||
|
12
|
12
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
12
|
12
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
13
|
13
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
37R-82540-00-00
Neutral Switch Assy
|
37R-82540-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99025-52-00
Newtral Switch Assy 37R8254001
|
999-99025-52-00 |
— | ||
|
15
|
15
90430-11034-00 Washer, Plate |
90430-11034-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
16
|
16
18N-82590-21-00
Wire Harness Assy
|
18N-82590-21-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
18
|
18
18N-83350-00-00
Flasher Relay Assy
|
18N-83350-00-00 |
— | ||
|
19
|
19
1M8-83371-40-00 Horn |
1M8-83371-40-00 |
from US $80.98 |
||
|
20
|
20
1E2-83373-00-00
Lead, Horn
|
1E2-83373-00-00 |
— | ||
|
21
|
21
97321-06014-00 Bolt (583) |
97321-06014-00 |
US $1.84 |
||
| replacement | |||||
|
21
|
21
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
22
|
22
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
90338-04010-00 Plug, Spec''l Shape |
90338-04010-00 |
US $3.40 |
||
|
24
|
24
2U0-85370-10-00
Resistor Assy
|
2U0-85370-10-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
26
|
26
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
27
|
27
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
28
|
28
353-81970-63-00 Rectifier AssemblyStanley |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
28
|
28
353-81970-M0-00 Rectifier AssyStanley |
353-81970-M0-00 |
from US $40.62 |
||
|
28
|
28
353-81970-M1-00 Rectifier AssyStanley |
353-81970-M1-00 |
US $17.99 |
||
|
29
|
29
2U0-85720-00-00
Oil Level Gauge Assy
|
2U0-85720-00-00 |
— | ||
|
30
|
30
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
