Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
01	01 254-15651-00-00 Gear, Kick Idle	254-15651-00-00	US $54.71
02	02 132-15353-00-10 Gasket, Drain	132-15353-00-10	—
03	03 99009-13400-00 Circlip	99009-13400-00	from US $2.41
04	04 2N3-15660-00-00 Kick Axle Assy	2N3-15660-00-00	US $121.86
05	05 305-15641-00-00 Gear, Kick (26T)	305-15641-00-00	US $47.80
06	06 90468-26048-00 Clip	90468-26048-00	from US $1.84
07	07 248-15654-00-00 Holder, Kick Gear	248-15654-00-00	from US $9.21
08	08 99009-30400-00 Circlip	99009-30400-00	from US $1.56
09	09 401-15676-00-00 Cover, Spring	401-15676-00-00	from US $2.98
10	10 90508-26041-00 Spring, Torsion	90508-26041-00	from US $8.93
11	11 2N3-15666-00-00 Spacer	2N3-15666-00-00	US $5.44
	replacement
11	11 999-99999-99-00 Not Available	999-99999-99-00	—
12	12 93101-17062-00 Oil Seal	93101-17062-00	from US $8.22
13	13 1M1-15668-01-00 Stopper	1M1-15668-01-00	US $9.63
14	14 4A6-15620-00-93 Kick Crank Assy Chrome-plated	4A6-15620-00-93	US $102.79
	replacement
14	14 4A6-15620-00-00 Kick Crank Assy Chrome-plated	4A6-15620-00-00	US $77.74
15	15 156-15618-01-00 Cover, Kick Lever	156-15618-01-00	from US $2
16	16 97311-08025-00 Bolt	97311-08025-00	from US $3.54
	replacement
16	16 97013-08025-00 Bolt (682)	97013-08025-00	from US $3.54
17	17 90201-13202-00 Washer Plate 201156530000	90201-13202-00	from US $1.70
	replacement
17	17 90201-13013-00 Washer, Plate	90201-13013-00	from US $1.70
18	18 90206-15021-00 Washer, Wave	90206-15021-00	from US $3.12

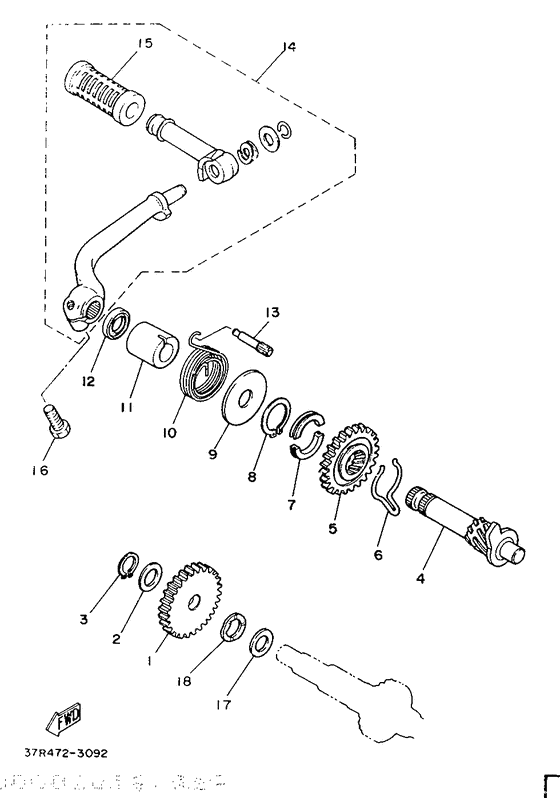

Starter Diagram Yamaha YB100 Brilliant Red (BR; 0063) England (999) 13506656-779739
