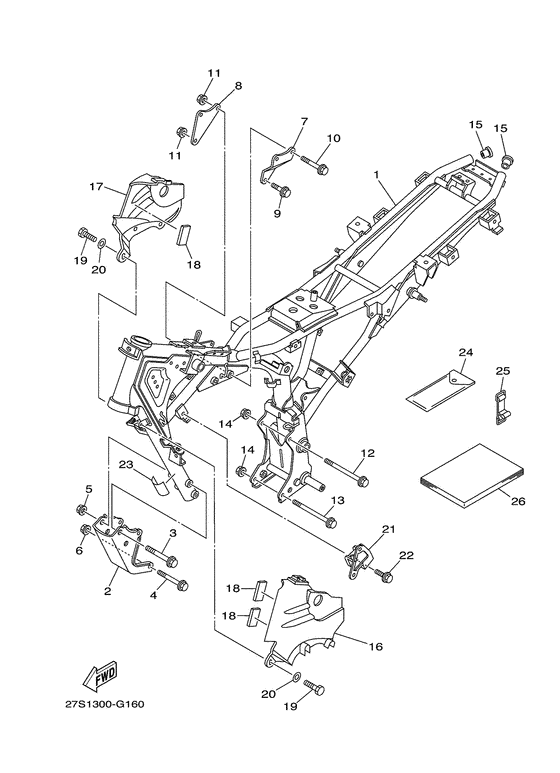

Frame Diagram Yamaha YB125
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 27S1
- Sales region
- Europe (General) (010)
- Engine Capacity
- 125
- Model
- YB125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
27S-F1110-00-33
Frame Comp
Yb |
27S-F1110-00-33 |
— | ||
|
02
|
02
5VL-F1316-00-00
Stay, Engine 3
|
5VL-F1316-00-00 |
— | ||
|
03
|
03
9581L-10080-00 Bolt, Flange |
9581L-10080-00 |
US $3.40 |
||
| replacement | |||||
|
03
|
03
958-12100-80-00 Bolt, Flange |
958-12100-80-00 |
from US $3.40 |
||
|
04
|
04
90105-08874-00 Bolt, Flange |
90105-08874-00 |
US $3.83 |
||
| replacement | |||||
|
04
|
04
901-05082-01-00 Bolt, Flange |
901-05082-01-00 |
US $2.79 |
||
|
05
|
05
9570L-10500-00 Nut, Flange |
9570L-10500-00 |
US $1.07 |
||
|
06
|
06
9570L-08500-00 Nut, Flange |
9570L-08500-00 |
from US $0.85 |
||
| replacements | |||||
|
06
|
06
90179-08X03-00
Nut
|
90179-08X03-00 |
— | ||
|
06
|
06
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
06
|
06
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
07
|
07
5VL-F1317-00-00
Stay, Engine 3
|
5VL-F1317-00-00 |
— | ||
|
08
|
08
5VL-F1318-00-00 Stay, Engine 5 |
5VL-F1318-00-00 |
US $5.10 |
||
|
09
|
09
90105-08802-00 Bolt, Flange |
90105-08802-00 |
US $1.07 |
||
| replacement | |||||
|
09
|
09
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
10
|
10
90105-08803-00 Bolt, Flange |
90105-08803-00 |
US $1.07 |
||
| replacement | |||||
|
10
|
10
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
11
|
11
9570L-08500-00 Nut, Flange |
9570L-08500-00 |
from US $0.85 |
||
| replacements | |||||
|
11
|
11
90179-08X03-00
Nut
|
90179-08X03-00 |
— | ||
|
11
|
11
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
11
|
11
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
12
|
12
90105-08873-00 Bolt, Flange |
90105-08873-00 |
US $3.68 |
||
| replacement | |||||
|
12
|
12
90105-08007-00 Bolt, Flange |
90105-08007-00 |
from US $3.68 |
||
|
13
|
13
90105-08882-00
Bolt, Flange
|
90105-08882-00 |
— | ||
|
14
|
14
9570L-08500-00 Nut, Flange |
9570L-08500-00 |
from US $0.85 |
||
| replacements | |||||
|
14
|
14
90179-08X03-00
Nut
|
90179-08X03-00 |
— | ||
|
14
|
14
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
14
|
14
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
15
|
15
90338-18815-00
Plug
|
90338-18815-00 |
— | ||
|
16
|
16
3S9-F171E-00-00
Cover, Side 5
|
3S9-F171E-00-00 |
— | ||
|
17
|
17
3S9-F171X-00-00
Cover, Side 6
|
3S9-F171X-00-00 |
— | ||
|
18
|
18
3S9-F1747-00-00
Damper
|
3S9-F1747-00-00 |
— | ||
|
19
|
19
9700N-06016-00 Bolt |
9700N-06016-00 |
US $1.21 |
||
|
20
|
20
90201-06850-00 Washer, Plate |
90201-06850-00 |
US $1.28 |
||
|
21
|
21
27S-F128A-00-00
Bracket, Regulator
|
27S-F128A-00-00 |
— | ||
|
22
|
22
9582N-06012-00 Bolt, Flange |
9582N-06012-00 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
23
|
23
27S-F118N-00-00
Label
|
27S-F118N-00-00 |
— | ||
|
24
|
24
3D9-F8100-00-00 Tool Kit |
3D9-F8100-00-00 |
US $56.51 |
||
| replacement | |||||
|
24
|
24
3D9-F8100-01-00 Tool Kit |
3D9-F8100-01-00 |
US $56.51 |
||
|
25
|
25
5VL-F811G-00-00 Band |
5VL-F811G-00-00 |
US $2.13 |
||
| replacement | |||||
|
25
|
25
5VL-F811G-01-00 Band |
5VL-F811G-01-00 |
US $2.13 |
||
|
26
|
26
27S-F8199-E0-00
Manual,owner's
Ur for english |
27S-F8199-E0-00 |
— | ||
|
26
|
26
27S-F8199-F0-00
Manual,owner's
Ur for french |
27S-F8199-F0-00 |
— | ||
|
26
|
26
27S-F8199-G0-00
Manual,owner's
Ur for german |
27S-F8199-G0-00 |
— | ||
|
26
|
26
27S-F8199-H0-00
Manual,owner's
Ur for italian |
27S-F8199-H0-00 |
— | ||
|
26
|
26
27S-F8199-S0-00
Manual,owner's
Ur for spanish |
27S-F8199-S0-00 |
— | ||
