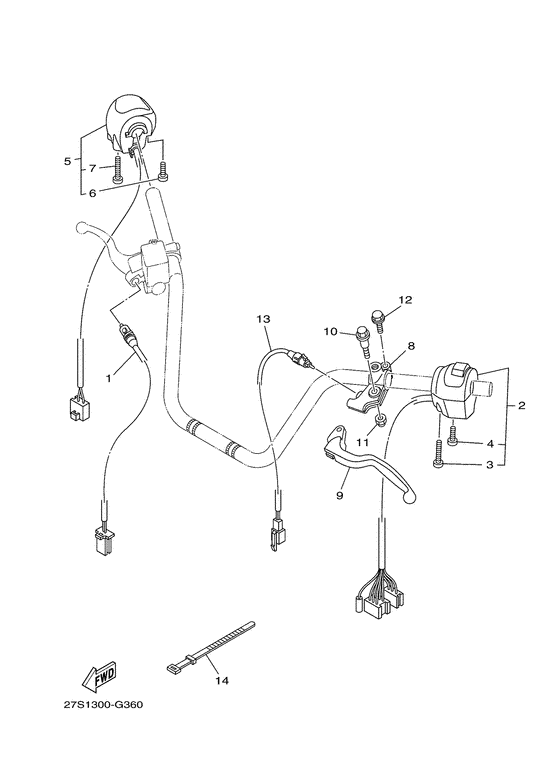

Handle switch & lever Diagram Yamaha YB125
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 27S1
- Sales region
- Greece (050)
- Engine Capacity
- 125
- Model
- YB125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3S9-H3980-00-00 Front Stop Switch Assy |
3S9-H3980-00-00 |
US $6.66 |
||
| replacement | |||||
|
01
|
01
3S9-H3980-01-00 Front Stop Switch Assy |
3S9-H3980-01-00 |
US $4.99 |
||
|
02
|
02
3S9-H3973-00-00
Switch, Handle 3
|
3S9-H3973-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3S9-H3973-01-00
Sw.handle 3
|
3S9-H3973-01-00 |
— | ||
|
03
|
03
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.42 |
||
|
04
|
04
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
05
|
05
27S-H3976-00-00
Switch, Handle 1
|
27S-H3976-00-00 |
— | ||
| replacement | |||||
|
05
|
05
27S-H3976-02-00
Switch, Handle 1
|
27S-H3976-02-00 |
— | ||
|
06
|
06
9850M-05030-00 Screw, Pan Head |
9850M-05030-00 |
US $1.28 |
||
| replacement | |||||
|
06
|
06
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
07
|
07
9850M-05050-00 Screw, Pan Head |
9850M-05050-00 |
US $1.42 |
||
| replacement | |||||
|
07
|
07
98507-05050-00 Screw, Pan Head |
98507-05050-00 |
from US $1.15 |
||
|
08
|
08
4FP-H2911-00-00 Holder, Lever 1 |
4FP-H2911-00-00 |
US $8.78 |
||
|
09
|
09
3D9-H3912-10-00 Lever 1 |
3D9-H3912-10-00 |
US $21.96 |
||
| replacement | |||||
|
09
|
09
3D9-H3912-30-00 Lever 1 |
3D9-H3912-30-00 |
US $21.96 |
||
|
10
|
10
90109-06850-00 Bolt |
90109-06850-00 |
US $1.98 |
||
|
11
|
11
9560N-06100-00 Nut |
9560N-06100-00 |
US $1.21 |
||
| replacement | |||||
|
11
|
11
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
12
|
12
97590-06522-00 Bolt, With Washer |
97590-06522-00 |
US $2.27 |
||
|
13
|
13
3S9-H2917-00-00
Switch
|
3S9-H2917-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3S9-H2917-01-00
Switch
|
3S9-H2917-01-00 |
— | ||
|
14
|
14
4TU-H3936-00-00 Band, Switch Cord |
4TU-H3936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
