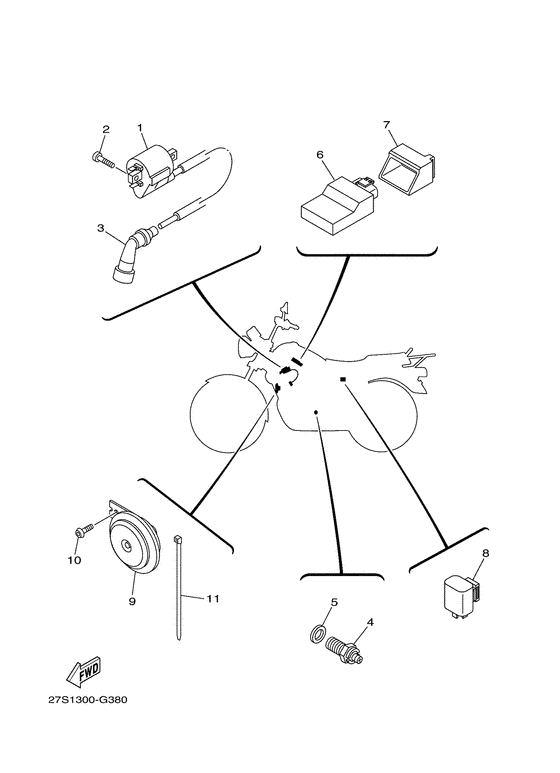

Electrical 2 Diagram Yamaha YB125
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 27S1
- Sales region
- England (060)
- Engine Capacity
- 125
- Model
- YB125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1B9-82310-00-00 Ignition Coil Assy |
1B9-82310-00-00 |
from US $47.67 |
||
| replacements | |||||
|
01
|
01
1B9-82310-02-00 IGNITION COIL ASSY |
1B9-82310-02-00 |
US $51.02 |
||
|
01
|
01
1B9-82310-03-00 Ignition Coil Assy |
1B9-82310-03-00 |
US $52.81 |
||
|
02
|
02
9850N-06016-00 Screw, Pan Head |
9850N-06016-00 |
US $1.42 |
||
| replacement | |||||
|
02
|
02
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
03
|
03
4FP-H2370-01-00 Plug Cap Assy |
4FP-H2370-01-00 |
US $18.56 |
||
| replacements | |||||
|
03
|
03
1JP-H2370-00-00 Plug Cap Assy |
1JP-H2370-00-00 |
US $18.56 |
||
|
03
|
03
1JP-H2370-01-00 Plug Cap Assy |
1JP-H2370-01-00 |
US $18.56 |
||
|
04
|
04
5VL-H2540-00-00 Neutral Switch Assy |
5VL-H2540-00-00 |
US $19.84 |
||
| replacement | |||||
|
04
|
04
5VL-H2540-01-00 Neutral Switch Assy |
5VL-H2540-01-00 |
US $19.84 |
||
|
05
|
05
90430-10819-00 Gasket |
90430-10819-00 |
from US $1.42 |
||
|
06
|
06
27S-8591A-00-00
Engine Control Unit Assy
|
27S-8591A-00-00 |
— | ||
| replacement | |||||
|
06
|
06
27S-8591A-01-00
Engine Control Unit Assy
|
27S-8591A-01-00 |
— | ||
|
07
|
07
3D9-H5546-10-00
Band
|
3D9-H5546-10-00 |
— | ||
|
08
|
08
29G-83350-20-00 Flasher Relay Assy |
29G-83350-20-00 |
from US $47.25 |
||
|
09
|
09
27S-83371-00-00
Horn
|
27S-83371-00-00 |
— | ||
|
10
|
10
9201N-06012-00
Bolt, Button Head
|
9201N-06012-00 |
— | ||
|
11
|
11
90464-35820-00 Clamp |
90464-35820-00 |
from US $1.19 |
||
