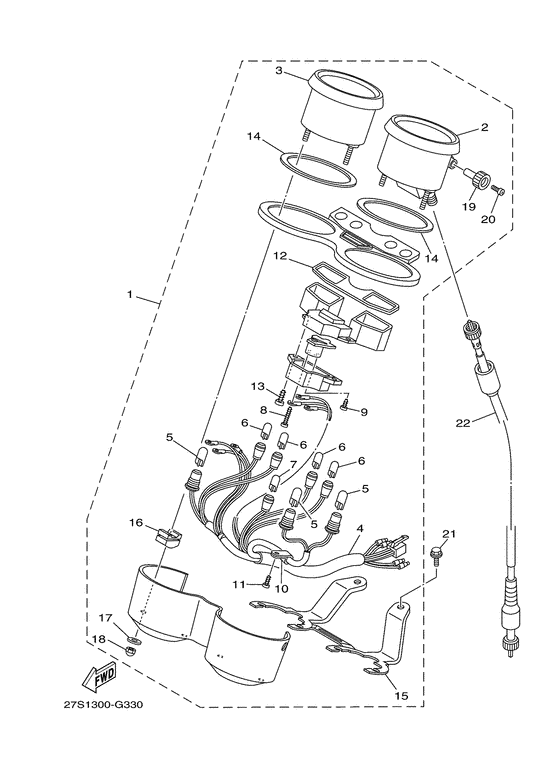

Meter Diagram Yamaha YB125
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 27S1
- Sales region
- England (060)
- Engine Capacity
- 125
- Model
- YB125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
27S-H3500-00-00
Meter Assy (Km/h)
Ur |
27S-H3500-00-00 |
— | ||
| replacement | |||||
|
01
|
01
27S-H3500-01-00
Meter Assy
Ur |
27S-H3500-01-00 |
— | ||
|
01
|
01
27S-H3500-10-00
Meter Assy (Mph)
Ur gbr |
27S-H3500-10-00 |
— | ||
| replacement | |||||
|
01
|
01
27S-H3500-11-00
Meter Assy
Ur gbr |
27S-H3500-11-00 |
— | ||
|
02
|
02
27S-H351A-00-00
Meter Assy
Ur |
27S-H351A-00-00 |
— | ||
|
02
|
02
27S-H351A-10-00
Meter Assy
Ur gbr |
27S-H351A-10-00 |
— | ||
|
03
|
03
27S-H3540-00-00
Tachometer Assy
|
27S-H3540-00-00 |
— | ||
|
04
|
04
27S-H3509-00-00
Socket Cord Assy
|
27S-H3509-00-00 |
— | ||
|
05
|
05
3D9-H3517-00-00 Bulb (12V-1.7W T10) |
3D9-H3517-00-00 |
US $3.26 |
||
|
06
|
06
3D9-H3516-00-00
Bulb (14V-3W T6.5)
|
3D9-H3516-00-00 |
— | ||
|
07
|
07
3D9-H3518-00-00 Bulb, Meter (12V-1.7W T6.5) |
3D9-H3518-00-00 |
US $4.53 |
||
|
08
|
08
3D9-H3549-00-00
Screw, Tapping
|
3D9-H3549-00-00 |
— | ||
|
09
|
09
3D9-H3645-00-00
Screw, Fuel Meter Fitting
|
3D9-H3645-00-00 |
— | ||
|
10
|
10
3D9-H357E-00-00
Clamp
|
3D9-H357E-00-00 |
— | ||
|
11
|
11
3D9-H3616-00-00
Screw, Tapping
|
3D9-H3616-00-00 |
— | ||
|
12
|
12
3D9-H357K-00-00
Packing,meter
|
3D9-H357K-00-00 |
— | ||
|
13
|
13
3D9-H352S-00-00
Screw, Panel Fitting
|
3D9-H352S-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3D9-H352S-01-00
Screw, Panel Fitting
|
3D9-H352S-01-00 |
— | ||
|
14
|
14
3D9-H3541-00-00
Damper
|
3D9-H3541-00-00 |
— | ||
|
15
|
15
3D9-H350E-00-00 Bracket |
3D9-H350E-00-00 |
US $20.69 |
||
|
16
|
16
3D9-H3543-00-00
Damper, Bracket
|
3D9-H3543-00-00 |
— | ||
|
17
|
17
3D9-H3524-00-00
Washer, Special
|
3D9-H3524-00-00 |
— | ||
|
18
|
18
3D9-H354P-00-00
Nut
|
3D9-H354P-00-00 |
— | ||
|
19
|
19
3D9-H357H-00-00
Knob
|
3D9-H357H-00-00 |
— | ||
|
20
|
20
3D9-H353S-00-00
Screw, Knob Fitting
|
3D9-H353S-00-00 |
— | ||
| replacement | |||||
|
20
|
20
3D9-H353S-01-00
Screw,knobfitting
|
3D9-H353S-01-00 |
— | ||
|
21
|
21
9502L-06016-00 Bolt, Flange |
9502L-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.56 |
||
|
22
|
22
3D9-H3550-00-00 Speedometer Cable Assy |
3D9-H3550-00-00 |
US $31.45 |
||
| replacement | |||||
|
22
|
22
3D9-H3550-02-00 Speedometer Cable Assy |
3D9-H3550-02-00 |
US $31.45 |
||
