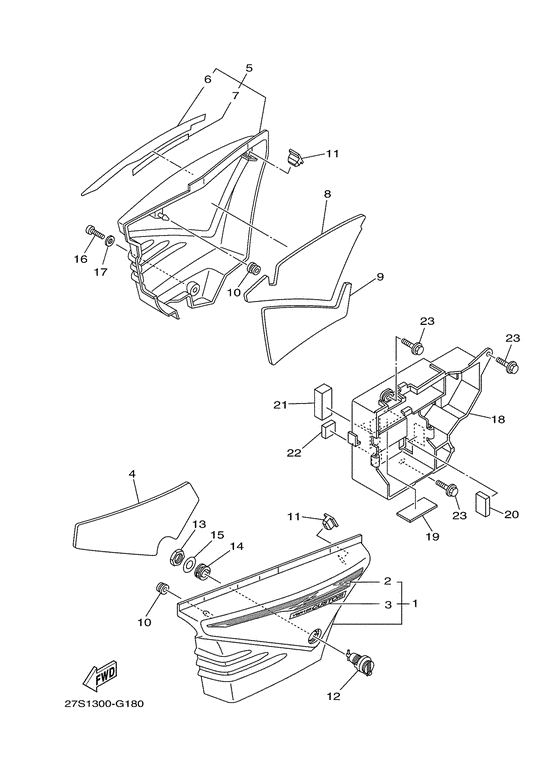

Side cover Diagram Yamaha YB125
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 27S1
- Sales region
- England (060)
- Engine Capacity
- 125
- Model
- YB125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3S9-Y2171-01-2X
Cover, Side 1
Ur for vrc7 |
3S9-Y2171-01-2X |
— | ||
|
01
|
01
3S9-Y2171-10-0X
Cover, Side 1
Ur for lgm3 |
3S9-Y2171-10-0X |
— | ||
|
01
|
01
3S9-Y2171-10-1X
Cover, Side 1
Ur for smx |
3S9-Y2171-10-1X |
— | ||
|
02
|
02
3S9-F173E-00-00
Graphic 1
Ur for lgm3 |
3S9-F173E-00-00 |
— | ||
|
02
|
02
3S9-F173E-10-00
Graphic 1
Ur for smx |
3S9-F173E-10-00 |
— | ||
|
02
|
02
3S9-F173E-20-00
Graphic 1
Ur for vrc7 |
3S9-F173E-20-00 |
— | ||
|
03
|
03
27S-F1788-00-00
Graphic
Ur for lgm3 |
27S-F1788-00-00 |
— | ||
|
03
|
03
27S-F1788-10-00
Graphic
Ur for smx |
27S-F1788-10-00 |
— | ||
|
03
|
03
27S-F1788-20-00
Graphic
Ur for vrc7 |
27S-F1788-20-00 |
— | ||
|
04
|
04
27S-F172P-00-00
Seat
|
27S-F172P-00-00 |
— | ||
|
05
|
05
27S-Y2172-00-0X
Cover, Side 2
Ur for smx |
27S-Y2172-00-0X |
— | ||
|
05
|
05
27S-Y2172-00-1X
Cover, Side 2
Ur for lgm3 |
27S-Y2172-00-1X |
— | ||
|
05
|
05
27S-Y2172-00-2X
Cover, Side 2
Ur for vrc7 |
27S-Y2172-00-2X |
— | ||
|
06
|
06
3S9-F173F-10-00
Graphic 2
Ur for smx |
3S9-F173F-10-00 |
— | ||
|
06
|
06
3S9-F173F-20-00
Graphic 2
Ur for vrc7 |
3S9-F173F-20-00 |
— | ||
|
06
|
06
3S9-F173F-00-00
Graphic 2
Ur for lgm3 |
3S9-F173F-00-00 |
— | ||
|
07
|
07
27S-F1788-00-00
Graphic
Ur for lgm3 |
27S-F1788-00-00 |
— | ||
|
07
|
07
27S-F1788-10-00
Graphic
Ur for smx |
27S-F1788-10-00 |
— | ||
|
07
|
07
27S-F1788-20-00
Graphic
Ur for vrc7 |
27S-F1788-20-00 |
— | ||
|
08
|
08
27S-F173P-00-00
Seat
|
27S-F173P-00-00 |
— | ||
|
09
|
09
27S-F174P-00-00
Seat 3
|
27S-F174P-00-00 |
— | ||
|
10
|
10
90480-13837-00 Grommet |
90480-13837-00 |
US $1.42 |
||
|
11
|
11
5VL-F1778-00-00 Damper, Locating 1 |
5VL-F1778-00-00 |
US $1.70 |
||
|
12
|
12
5VL-F1780-00-00 Lock Assy |
5VL-F1780-00-00 |
US $16.01 |
||
| replacement | |||||
|
12
|
12
5VL-F1780-01-00 Lock Assy |
5VL-F1780-01-00 |
US $16.01 |
||
|
13
|
13
90170-22850-00 Nut |
90170-22850-00 |
US $4.39 |
||
| replacement | |||||
|
13
|
13
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
14
|
14
90480-24186-00 Grommet |
90480-24186-00 |
from US $1.84 |
||
|
15
|
15
90201-228F6-00 Washer, Plate |
90201-228F6-00 |
US $1.70 |
||
|
16
|
16
9890L-06020-00 Screw, Bind |
9890L-06020-00 |
US $1.42 |
||
|
17
|
17
90201-06850-00 Washer, Plate |
90201-06850-00 |
US $1.28 |
||
|
18
|
18
27S-F177G-00-00
Box, Battery
|
27S-F177G-00-00 |
— | ||
|
19
|
19
5VL-F1746-00-00 Damper |
5VL-F1746-00-00 |
US $1.70 |
||
|
20
|
20
3D9-F1747-00-00 Damper |
3D9-F1747-00-00 |
US $1.42 |
||
|
21
|
21
27S-F174X-00-00
Damper
|
27S-F174X-00-00 |
— | ||
|
22
|
22
3D9-F174Y-00-00
Damper
|
3D9-F174Y-00-00 |
— | ||
|
23
|
23
90119-06869-00 Bolt, With Washer |
90119-06869-00 |
US $1.70 |
||
| replacement | |||||
|
23
|
23
90119-06137-00 Bolt, With Washer |
90119-06137-00 |
from US $1.70 |
||
