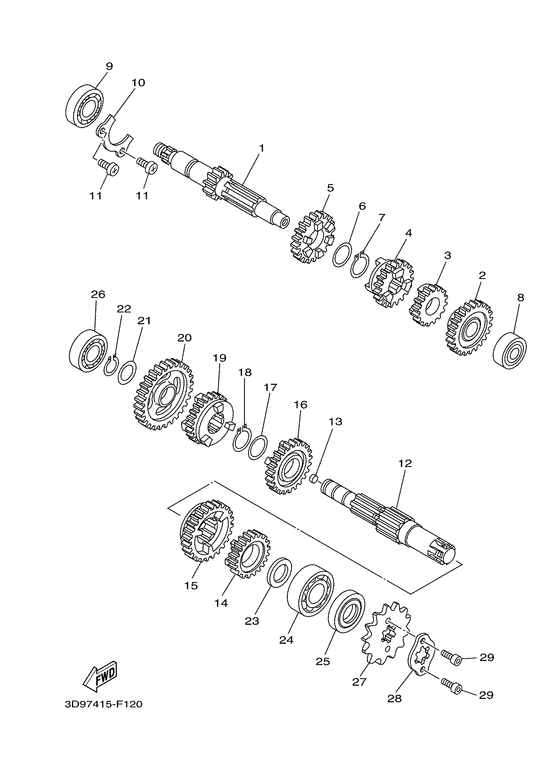

Transmission Diagram Yamaha YB125
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 27S1
- Sales region
- England (060)
- Engine Capacity
- 125
- Model
- YB125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5VL-E7411-00-00 Axle, Main (14T) |
5VL-E7411-00-00 |
from US $40.76 |
||
|
02
|
02
3D9-17151-00-00 Gear, 5Th Pinion (24T) |
3D9-17151-00-00 |
US $75.30 |
||
|
03
|
03
5VL-E7121-00-00 Gear, 2Nd Pinion (19T) |
5VL-E7121-00-00 |
from US $18.99 |
||
|
04
|
04
5VL-E7131-00-00 Gear, 3Rd Pinion (19T) |
5VL-E7131-00-00 |
from US $20.69 |
||
|
05
|
05
5VL-E7141-00-00 Gear, 4Th Pinion (22T) |
5VL-E7141-00-00 |
from US $22.67 |
||
|
06
|
06
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
07
|
07
93410-20809-00 Circlip |
93410-20809-00 |
from US $1.84 |
||
| replacement | |||||
|
07
|
07
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
08
|
08
93306-201Y8-00 Bearing |
93306-201Y8-00 |
from US $22.53 |
||
| replacement | |||||
|
08
|
08
93306-20121-00 Bearing |
93306-20121-00 |
from US $22.53 |
||
|
09
|
09
93306-203YT-00 Bearing |
93306-203YT-00 |
from US $10.91 |
||
| replacement | |||||
|
09
|
09
93306-253YJ-00 Bearing |
93306-253YJ-00 |
from US $10.91 |
||
|
10
|
10
5VL-E7471-00-00 Plate, Cover |
5VL-E7471-00-00 |
from US $1.26 |
||
|
11
|
11
9851L-06012-00 Screw, Pan Head |
9851L-06012-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
98512-06012-00 Screw, Pan Head |
98512-06012-00 |
from US $1.28 |
||
|
12
|
12
5VL-E7421-00-00
Drive Axle Assy
|
5VL-E7421-00-00 |
— | ||
| replacement | |||||
|
12
|
12
5VL-E7402-00-00 Drive Axle Assy |
5VL-E7402-00-00 |
from US $35.37 |
||
|
13
|
13
90331-07031-00 Plug |
90331-07031-00 |
from US $1.98 |
||
|
14
|
14
3D9-17251-00-00 Gear, 5Th Wheel (21T) |
3D9-17251-00-00 |
from US $67.01 |
||
|
15
|
15
5VL-E7221-00-00 Gear, 2Nd Wheel (32T) |
5VL-E7221-00-00 |
from US $22.39 |
||
|
16
|
16
5VL-E7231-00-00 Gear, 3Rd Wheel (25T) |
5VL-E7231-00-00 |
from US $20.54 |
||
|
17
|
17
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
18
|
18
93410-20809-00 Circlip |
93410-20809-00 |
from US $1.84 |
||
| replacement | |||||
|
18
|
18
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
19
|
19
5VL-E7241-00-00 Gear, 4Th Wheel (23T) |
5VL-E7241-00-00 |
from US $29.33 |
||
|
20
|
20
5VL-E7211-00-00 Gear, 1St Wheel (37T) |
5VL-E7211-00-00 |
from US $25.22 |
||
|
21
|
21
902-01157-00-00
Washer, Plate (T=1.0)
|
902-01157-00-00 |
— | ||
| replacement | |||||
|
21
|
21
90201-154E8-00 Washer, Plate (4L0) |
90201-154E8-00 |
from US $1.84 |
||
|
22
|
22
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
23
|
23
90201-20272-00 Washer, Plate |
90201-20272-00 |
from US $7.37 |
||
|
24
|
24
93306-204YD-00 Bearing |
93306-204YD-00 |
from US $10.20 |
||
|
25
|
25
93102-20854-00 Oil Seal |
93102-20854-00 |
from US $4.27 |
||
| replacement | |||||
|
25
|
25
931-02208-12-00 Oil Seal |
931-02208-12-00 |
from US $4.84 |
||
|
26
|
26
93306-202XP-00 Bearing |
93306-202XP-00 |
from US $19.84 |
||
|
27
|
27
93822-14813-00 Sprocket, Drive (14T) |
93822-14813-00 |
from US $19.69 |
||
|
28
|
28
3D9-E7456-00-00 Holder, Sprocket |
3D9-E7456-00-00 |
from US $2.55 |
||
| replacement | |||||
|
28
|
28
3D9-E7456-01-00 Holder, Sprocket |
3D9-E7456-01-00 |
from US $2.55 |
||
|
29
|
29
9131N-05010-00 Bolt |
9131N-05010-00 |
from US $1.56 |
||
| replacements | |||||
|
29
|
29
91312-05010-00 Bolt |
91312-05010-00 |
from US $1.56 |
||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
