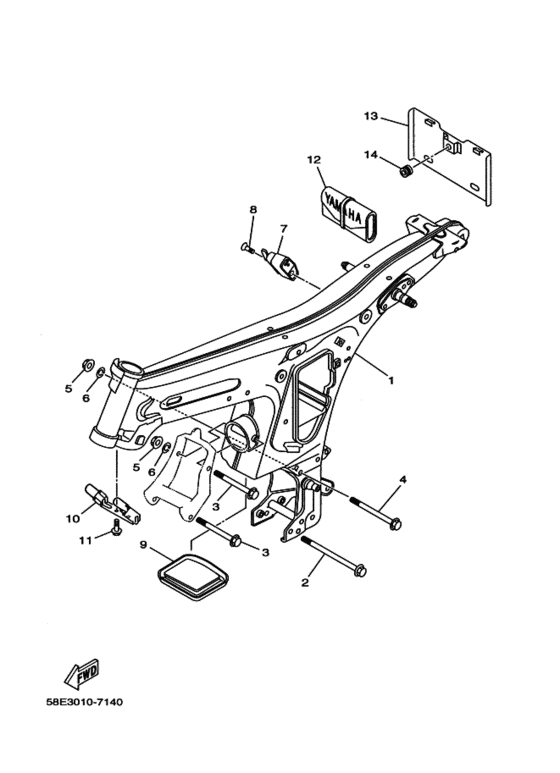

Frame Diagram Yamaha YB50
- Year
- 1985
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 58E
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58E-21110-00-33
Frame Comp
フレームコンプリート; ヤマハブラツク （ＦＩＧ．１７−１，２セツト） |
58E-21110-00-33 |
— | ||
|
1
|
1
58E-21110-01-33
Frame Comp
フレームコンプリート; 857871〜; ヤマハブラツク （ＦＩＧ．１７−１，２セツト） |
58E-21110-01-33 |
— | ||
|
2
|
2
95827-08130-00 Bolt, Flange |
95827-08130-00 |
US $5.38 |
||
|
3
|
3
95807-08095-00 Bolt, Flange |
95807-08095-00 |
US $3.40 |
||
|
4
|
4
95827-08120-00 Bolt, Flange |
95827-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
4
|
4
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
5
|
5
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
6
|
6
92907-08100-00 Washer, Springワツシヤ，スプリング; |
92907-08100-00 |
from US $0.85 |
||
|
7
|
7
26H-21308-00-00
Helmet Hanger Assy
ヘルメツトハンガーアセンブリ; |
26H-21308-00-00 |
— | ||
| replacement | |||||
|
7
|
7
26H-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
26H-21308-01-00 |
from US $44.85 |
||
|
8
|
8
90149-06154-00 Screw |
90149-06154-00 |
from US $1.56 |
||
|
9
|
9
2N3-21268-00-00 Sealシール; |
2N3-21268-00-00 |
US $6.43 |
||
|
10
|
10
58E-21339-00-00 Guide, Wireガイド，ワイヤ; |
58E-21339-00-00 |
US $34 |
||
|
10
|
10
58E-21339-01-00 Guide, Wireガイド，ワイヤ; 865663〜 |
58E-21339-01-00 |
US $34 |
||
|
12
|
12
353-W2810-01-00 Tool Kitツールキツト; |
353-W2810-01-00 |
US $76.23 |
||
