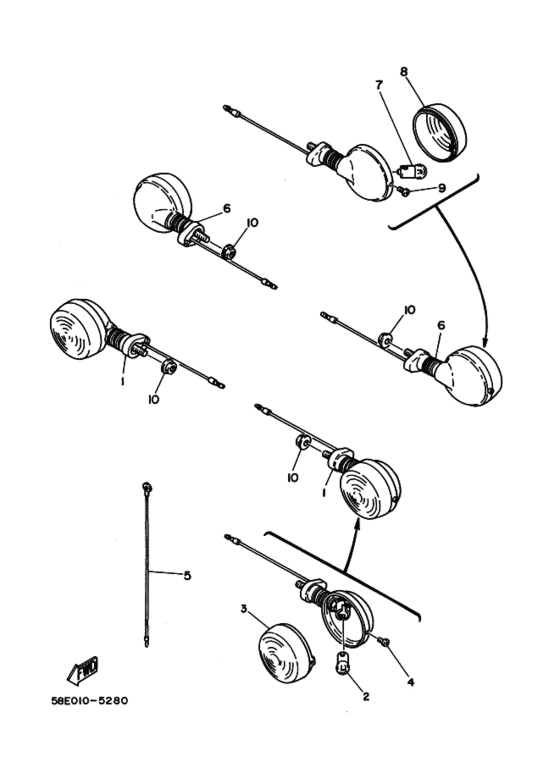

Flasher light Diagram Yamaha YB50
- Year
- 1996
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 58E1
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58E-83310-00-00 Front Flasher Light Assy 1フロントフラツシヤライトアセンブリ １; |
58E-83310-00-00 |
US $53.93 |
||
|
2
|
2
3NS-83331-00-00 Bulb．バルブ ; １２Ｖ−１０Ｗ |
3NS-83331-00-00 |
from US $4.82 |
||
|
3
|
3
2N3-83312-N0-00 Lens, Flasher．レンズ，フラツシヤ; |
2N3-83312-N0-00 |
US $16.72 |
||
|
4
|
4
98580-03008-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
2AL-82519-00-00 Wire, Earth Leadワイヤ，アースリード; |
2AL-82519-00-00 |
US $5.58 |
||
|
6
|
6
58E-83330-00-00
Rear Flasher Light Assy 1
|
58E-83330-00-00 |
— | ||
|
7
|
7
3NS-83331-00-00 Bulb．バルブ ; １２Ｖ−１０Ｗ |
3NS-83331-00-00 |
from US $4.82 |
||
|
8
|
8
2N3-83312-N0-00 Lens, Flasher．レンズ，フラツシヤ; |
2N3-83312-N0-00 |
US $16.72 |
||
|
9
|
9
98580-03008-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-03008-00 |
from US $1.21 |
||
|
10
|
10
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
10
|
10
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
