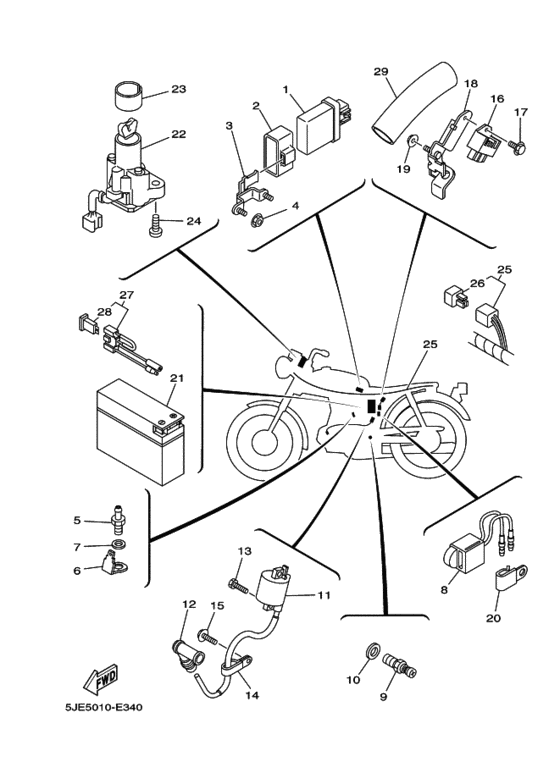

Electrical 1 Diagram Yamaha YB50
- Year
- 2006
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5JE5
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JE-85540-10-00
C.d.i. Unit Assy
．．．ＣＤＩユニツトアセンブリ; |
5JE-85540-10-00 |
— | ||
|
2
|
2
5JE-85546-00-00 Band |
5JE-85546-00-00 |
US $12.92 |
||
|
3
|
3
5JE-85542-00-00
Bracket
|
5JE-85542-00-00 |
— | ||
|
4
|
4
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
5
|
5
4EB-83790-00-00 Heater Assyヒーターアセンブリ; |
4EB-83790-00-00 |
from US $40.30 |
||
|
6
|
6
5FU-82103-00-00 Terminal 1ターミナル １; |
5FU-82103-00-00 |
from US $1.84 |
||
|
7
|
7
90201-08016-00 Washer, Plateワツシヤ，プレート; |
90201-08016-00 |
from US $1.70 |
||
|
8
|
8
5FU-82560-20-00 Thermo Switch Assyサーモスイツチアセンブリ; |
5FU-82560-20-00 |
from US $22.22 |
||
|
9
|
9
4KM-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
9
|
9
4GY-82540-10-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
4GY-82540-10-00 |
from US $23.80 |
||
|
10
|
10
904-30101-88-00 Gasket |
904-30101-88-00 |
from US $1.36 |
||
| replacement | |||||
|
10
|
10
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
11
|
11
4RP-82310-10-00 Ignition Coil Assy |
4RP-82310-10-00 |
US $64.69 |
||
|
12
|
12
5JE-82370-00-00 Plug Cap Assy |
5JE-82370-00-00 |
US $29.04 |
||
|
13
|
13
97007-06016-00 Boltボルト; |
97007-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
13
|
13
97017-06016-00 Boltボルト; |
97017-06016-00 |
from US $1.21 |
||
|
14
|
14
90461-08113-00 Clamp |
90461-08113-00 |
from US $7.51 |
||
|
15
|
15
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
16
|
16
3LA-81960-01-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
3LA-81960-01-00 |
from US $81.79 |
||
|
17
|
17
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
17
|
17
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.35 |
||
|
18
|
18
5JE-81915-00-00 Plate, Regulator Fittingプレート，レギユレータフイツテイング; |
5JE-81915-00-00 |
US $20.56 |
||
|
19
|
19
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
20
|
20
90465-06038-00 Clamp |
90465-06038-00 |
from US $2.41 |
||
| replacement | |||||
|
20
|
20
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
21
|
21
90793-25007-00
Battery Assy(Gt4B-5 12V-2.5Ah)
．バツテリアセンブリ ; ＧＴ４Ｂ−５ １２Ｖ−２５ＡＨ; ＧＳ |
90793-25007-00 |
— | ||
| replacements | |||||
|
21
|
21
GT4-B5000-00-00
Battery
．バツテリアセンブリ ; ＧＴ４Ｂ−５ １２Ｖ−２５ＡＨ; ＧＳ |
GT4-B5000-00-00 |
— | ||
|
21
|
21
4JS-82100-00-00
Battery Assy
．バツテリアセンブリ ; ＧＴ４Ｂ−５ １２Ｖ−２５ＡＨ; ＧＳ |
4JS-82100-00-00 |
— | ||
|
22
|
22
4DW-82023-00-00 Key SetＡＰ ＊１ |
4DW-82023-00-00 |
US $214.74 |
||
|
22
|
22
4DW-82501-00-00
Main Switch Steering Lock
|
4DW-82501-00-00 |
— | ||
| replacement | |||||
|
22
|
22
3MA-82501-10-00
Main Switch Steering Lock
|
3MA-82501-10-00 |
— | ||
|
23
|
23
58E-82515-01-00
Damper, Main Switch
|
58E-82515-01-00 |
— | ||
|
24
|
24
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.70 |
||
|
25
|
25
5JE-82590-01-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
5JE-82590-01-00 |
— | ||
|
26
|
26
3XV-81980-00-00 Diode Assy．ダイオード アセンブリ; |
3XV-81980-00-00 |
from US $15.02 |
||
|
27
|
27
58E-82115-01-00 Wire, Plus Leadワイヤ，プラスリード; |
58E-82115-01-00 |
US $25.13 |
||
|
28
|
28
2KW-82151-00-00 Fuse (7.5A-Bl)．．フユーズ ; ７５Ａ−ＢＬ |
2KW-82151-00-00 |
from US $1.56 |
||
|
29
|
29
5JE-83338-00-00 Tube, Cord |
5JE-83338-00-00 |
from US $18.99 |
||
