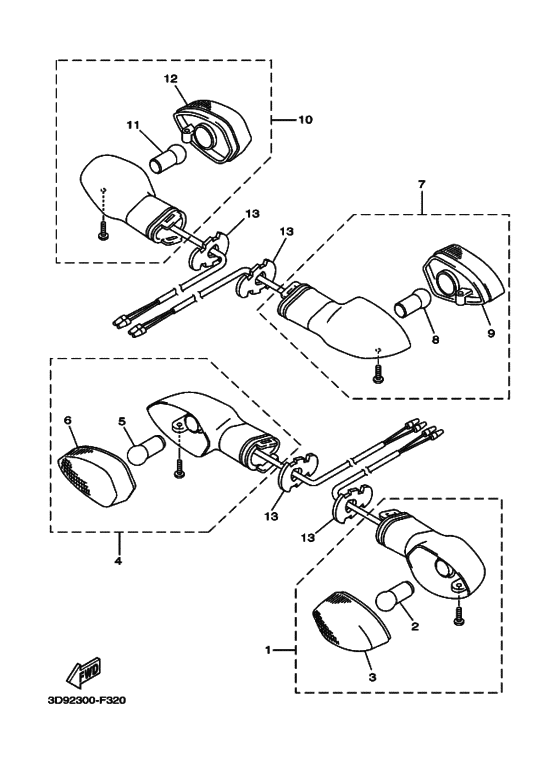

Flasher light Diagram Yamaha YBR125
- Year
- 2007
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 3D92
- Sales region
- Europe (060)
- Engine Capacity
- 125
- Color Variant
- D
- Model
- YBR125ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D9-H3310-10-00 Front Flasher Light Assy 1 |
3D9-H3310-10-00 |
US $54.44 |
||
|
2
|
2
3D9-H3311-10-00 Bulb, Flasher (12V-10W)12V 10W |
3D9-H3311-10-00 |
US $4.39 |
||
|
3
|
3
3D9-H333A-00-00 Lens Comp 1 |
3D9-H333A-00-00 |
US $11.79 |
||
|
4
|
4
3D9-H3320-10-00 Front Flasher Light Assy 2 |
3D9-H3320-10-00 |
US $54.44 |
||
|
5
|
5
3D9-H3311-10-00 Bulb, Flasher (12V-10W)12V 10W |
3D9-H3311-10-00 |
US $4.39 |
||
|
6
|
6
3D9-H334A-00-00 Lens Comp 2 |
3D9-H334A-00-00 |
US $11.79 |
||
|
7
|
7
3D9-H3330-10-00 Rear Flasher Light Assy 1 |
3D9-H3330-10-00 |
US $51.67 |
||
|
8
|
8
3D9-H3311-10-00 Bulb, Flasher (12V-10W)12V 10W |
3D9-H3311-10-00 |
US $4.39 |
||
|
9
|
9
3D9-H334A-00-00 Lens Comp 2 |
3D9-H334A-00-00 |
US $11.79 |
||
|
10
|
10
3D9-H3340-10-00 Rear Flasher Light Assy 2 |
3D9-H3340-10-00 |
US $51.67 |
||
|
11
|
11
3D9-H3311-10-00 Bulb, Flasher (12V-10W)12V 10W |
3D9-H3311-10-00 |
US $4.39 |
||
|
12
|
12
3D9-H333A-00-00 Lens Comp 1 |
3D9-H333A-00-00 |
US $11.79 |
||
|
13
|
13
3D9-H3318-10-00 Stay, Flasher 1 |
3D9-H3318-10-00 |
US $1.42 |
