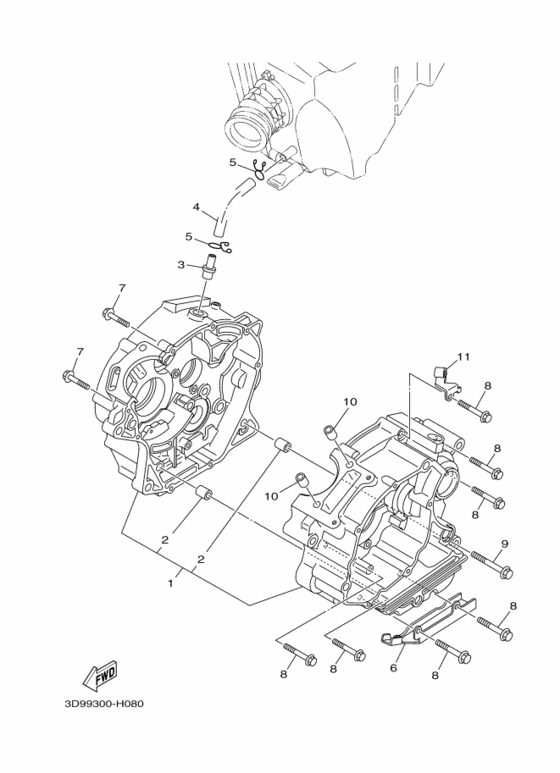

Crankcase Diagram Yamaha YBR125
- Year
- 2009
- Colour
- Light Gray Metallic 3 (LGM3; 0137)
- Model code
- 3D99
- Sales region
- Europe (060)
- Engine Capacity
- 125
- Color Variant
- C
- Model
- YBR125ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VL-W1510-11-00 Crankcase Assy |
5VL-W1510-11-00 |
from US $465.12 |
||
|
2
|
2
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
3
|
3
4FP-E1167-00-00 Pipe, Breather 2 |
4FP-E1167-00-00 |
from US $1.42 |
||
|
4
|
4
5VL-E1166-10-00 Pipe, Breather 1 |
5VL-E1166-10-00 |
US $2.69 |
||
| replacement | |||||
|
4
|
4
5VL-E1166-00-00 Pipe, Breather 1 |
5VL-E1166-00-00 |
US $2.69 |
||
|
5
|
5
90467-12828-00 Clip |
90467-12828-00 |
from US $1.84 |
||
| replacement | |||||
|
5
|
5
90467-12052-00 Clip |
90467-12052-00 |
from US $1.90 |
||
|
6
|
6
90462-16801-00 Clamp |
90462-16801-00 |
from US $3.40 |
||
|
7
|
7
9502L-06030-00 Bolt, Flange |
9502L-06030-00 |
from US $0.52 |
||
| replacement | |||||
|
7
|
7
95022-06030-00 Bolt, Flange |
95022-06030-00 |
from US $1.52 |
||
|
8
|
8
9502L-06045-00 Bolt, Flange |
9502L-06045-00 |
from US $0.83 |
||
| replacement | |||||
|
8
|
8
95022-06045-00 Bolt, Flange |
95022-06045-00 |
from US $1.66 |
||
|
9
|
9
9502L-06055-00 Bolt, Flange |
9502L-06055-00 |
from US $0.99 |
||
|
10
|
10
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
11
|
11
5VL-E5441-00-00 Holder, Clutch Cable |
5VL-E5441-00-00 |
US $1.84 |
||
| replacement | |||||
|
11
|
11
5VL-E5441-01-00 Holder, Clutch Cable |
5VL-E5441-01-00 |
from US $1.60 |
||
