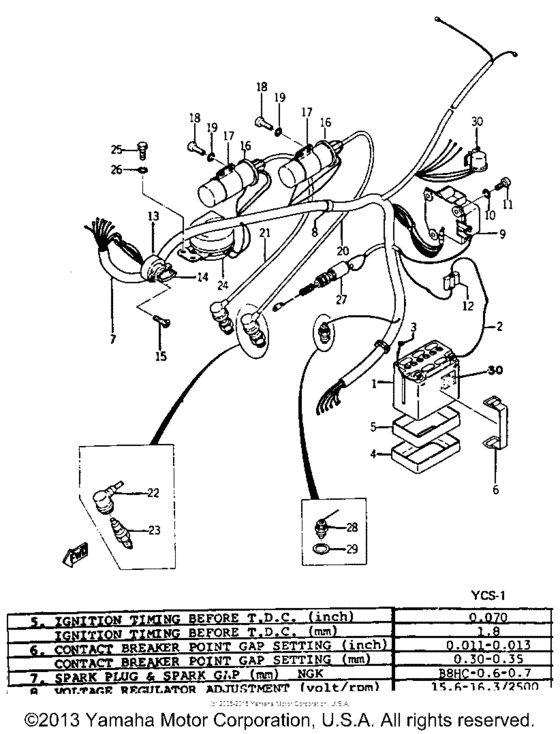

Electrical system Diagram Yamaha YCS1
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YCS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19W-15451-01-00
Gasket, Crcs Cover
IN PRICE BOOK |
19W-15451-01-00 |
— | ||
| replacement | |||||
|
1
|
1
19W-15451-02-00
ABSORBER 2
IN PRICE BOOK |
19W-15451-02-00 |
— | ||
|
1
|
1
986-03040-08-00
Screw, Oval Head
|
986-03040-08-00 |
— | ||
|
1
|
1
BTY-12N93-A1-00
12N9-3A-1 Gs Batter
GS BATTER |
BTY-12N93-A1-00 |
— | ||
| replacement | |||||
|
1
|
1
12N-93A10-00-00
BLANK KEY
GS BATTER |
12N-93A10-00-00 |
— | ||
|
2
|
2
173-82115-00-00
Wire, Plus Lead
|
173-82115-00-00 |
— | ||
|
3
|
3
173-82116-00-00
Wire, Minus Lead
|
173-82116-00-00 |
— | ||
|
4
|
4
173-82122-00-00
Seat, Battery
|
173-82122-00-00 |
— | ||
|
5
|
5
1UA-82124-00-00
Band, Battery
|
1UA-82124-00-00 |
— | ||
|
6
|
6
26H-82131-00-00 Band, Battery |
26H-82131-00-00 |
from US $8.36 |
||
|
7
|
7
173-82590-10-00
Wire Harness Assembly
|
173-82590-10-00 |
— | ||
|
7
|
7
193-82590-10-00
Wire Harness Assembly
|
193-82590-10-00 |
— | ||
|
8
|
8
150-82591-00-00
Band, Wire Harness
|
150-82591-00-00 |
— | ||
|
9
|
9
173-81910-20-00
Voltage Reg Assembly
|
173-81910-20-00 |
— | ||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
11
|
11
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
12
|
12
2UJ-82150-01-00 Fuse Holder Assy |
2UJ-82150-01-00 |
from US $11.76 |
||
| replacement | |||||
|
12
|
12
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
13
|
13
168-82508-19-00
Main Switch Assembly
15-1. |
168-82508-19-00 |
— | ||
|
15
|
15
927-01040-10-00 Screw, Flat Head |
927-01040-10-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
98707-04010-00 Screw, Flat Head |
98707-04010-00 |
from US $1.70 |
||
|
16
|
16
168-82310-70-00
Ignition Coil Assembly
|
168-82310-70-00 |
— | ||
|
17
|
17
174-82311-00-00
Band, Coil Fitting
|
174-82311-00-00 |
— | ||
|
18
|
18
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
19
|
19
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
20
|
20
174-82341-00-00
Cord, High Tens 1
|
174-82341-00-00 |
— | ||
|
21
|
21
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
22
|
22
NGK-B8HS0-00-00 B8Hs Ngk 10Pk Screw10PK SCREW |
NGK-B8HS0-00-00 |
US $6.95 |
||
| replacements | |||||
|
22
|
22
B8H-S0000-00-00 element10PK SCREW |
B8H-S0000-00-00 |
US $4.99 |
||
|
22
|
22
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)10PK SCREW |
BR8-HS000-00-00 |
US $26.36 |
||
|
23
|
23
131-83371-23-00
Horn
|
131-83371-23-00 |
— | ||
|
24
|
24
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
24
|
24
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
25
|
25
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
26
|
26
193-82530-01-00
Stop Switch Assembly
|
193-82530-01-00 |
— | ||
|
26
|
26
174-82530-00-00
Stop Switch Assembly
|
174-82530-00-00 |
— | ||
|
27
|
27
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
27
|
27
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
28
|
28
37R-82543-00-00 Washer, Plate |
37R-82543-00-00 |
from US $1.28 |
||
| replacement | |||||
|
28
|
28
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
29
|
29
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
29
|
29
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
183-83350-21-00
Flasher Relay Assembly
|
183-83350-21-00 |
— | ||
|
30
|
30
174-83350-20-00
Flasher Relay Assembly
|
174-83350-20-00 |
— | ||
