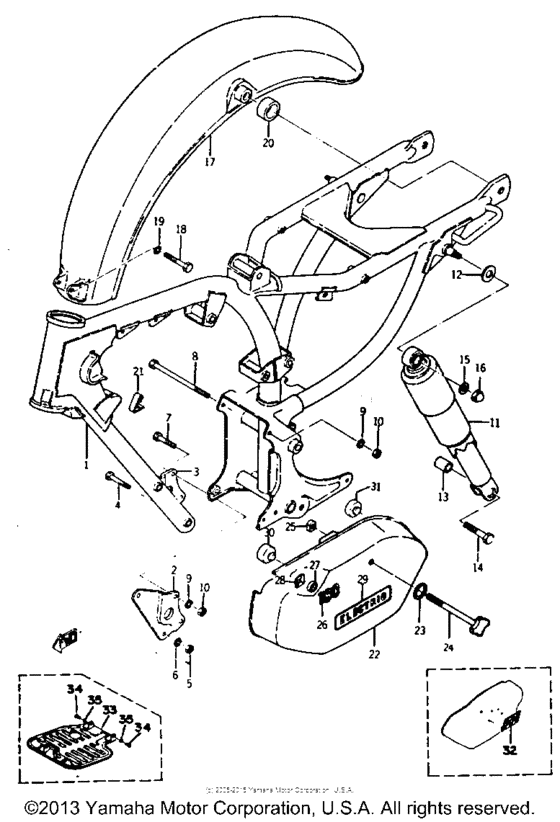

Frame Diagram Yamaha YCS1
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YCS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
237-21110-00-33
Frame
|
237-21110-00-33 |
— | ||
|
2
|
2
174-21315-00-00
Stay, Engine 2
|
174-21315-00-00 |
— | ||
|
3
|
3
174-21316-00-00
Stay, Engine 3
|
174-21316-00-00 |
— | ||
|
4
|
4
901-01100-70-00 Bolt |
901-01100-70-00 |
US $5.81 |
||
|
4
|
4
198-21484-00-00
New Genuine Part
IN PRICE BOOK |
198-21484-00-00 |
— | ||
|
5
|
5
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
6
|
6
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
7
|
7
958-11080-60-00
Bolt, Flange
|
958-11080-60-00 |
— | ||
| replacement | |||||
|
7
|
7
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
8
|
8
90109-08386-00 Bolt |
90109-08386-00 |
from US $7.79 |
||
|
9
|
9
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
10
|
10
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
11
|
11
178-22210-20-00
Shk/abs Assembly, Rear
|
178-22210-20-00 |
— | ||
|
11
|
11
174-22210-01-63
Shk/abs Assembly, Rear
|
174-22210-01-63 |
— | ||
|
11
|
11
174-22210-01-29
Shk/abs Assembly, Rear
|
174-22210-01-29 |
— | ||
|
12
|
12
90201-14218-00 Washer, Plate |
90201-14218-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $1.70 |
||
|
13
|
13
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $8.60 |
||
|
14
|
14
90106-08027-00 Bolt, Dome Head |
90106-08027-00 |
from US $5.10 |
||
|
15
|
15
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
15
|
15
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
16
|
16
95303-10800-00 Nut |
95303-10800-00 |
US $3.12 |
||
| replacement | |||||
|
16
|
16
95380-10800-00 Nut |
95380-10800-00 |
from US $3.12 |
||
|
17
|
17
178-21610-00-93
Fender, Rear
|
178-21610-00-93 |
— | ||
|
17
|
17
174-21610-00-93
Fender, Rear
|
174-21610-00-93 |
— | ||
|
18
|
18
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
18
|
18
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
19
|
19
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
20
|
20
90387-18144-00 Collar |
90387-18144-00 |
from US $12.33 |
||
|
21
|
21
174-21337-00-00
Clamp, Cable
|
174-21337-00-00 |
— | ||
|
21
|
21
193-21337-00-00
Clamp, Cable
|
193-21337-00-00 |
— | ||
|
22
|
22
174-21711-01-29
Cover, Side 1
BRILLIANT RED |
174-21711-01-29 |
— | ||
|
22
|
22
193-21711-60-22
Cover, Side 1
DISCONTINUED.CANDY RED |
193-21711-60-22 |
— | ||
|
22
|
22
193-21711-60-29
Cover, Side 1
CANDY BLUE |
193-21711-60-29 |
— | ||
|
22
|
22
193-21711-60-33
Cover, Side 1
YAMAHA BLACK |
193-21711-60-33 |
— | ||
|
23
|
23
902-02080-20-00
Washer, Plate
|
902-02080-20-00 |
— | ||
|
24
|
24
168-21714-00-00
Knob, Side Cover 1
|
168-21714-00-00 |
— | ||
|
25
|
25
901-79080-35-00
Nut, Spec''l Shape
|
901-79080-35-00 |
— | ||
|
26
|
26
174-21786-00-00
Emblem 6
|
174-21786-00-00 |
— | ||
|
27
|
27
90202-04003-00 Washer, Plate |
90202-04003-00 |
from US $2.41 |
||
|
28
|
28
90183-04005-00 Nut Spring 116283170100 |
90183-04005-00 |
from US $1.70 |
||
|
29
|
29
118-21787-00-00
Emblem 7
|
118-21787-00-00 |
— | ||
|
30
|
30
174-21717-00-00
Damper
|
174-21717-00-00 |
— | ||
|
31
|
31
137-21778-00-00
Damper, Locating 1
|
137-21778-00-00 |
— | ||
|
32
|
32
193-21787-60-00
Emblem 7
|
193-21787-60-00 |
— | ||
|
33
|
33
178-21471-02-33
Protector, Engine
|
178-21471-02-33 |
— | ||
|
34
|
34
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
34
|
34
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
35
|
35
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
