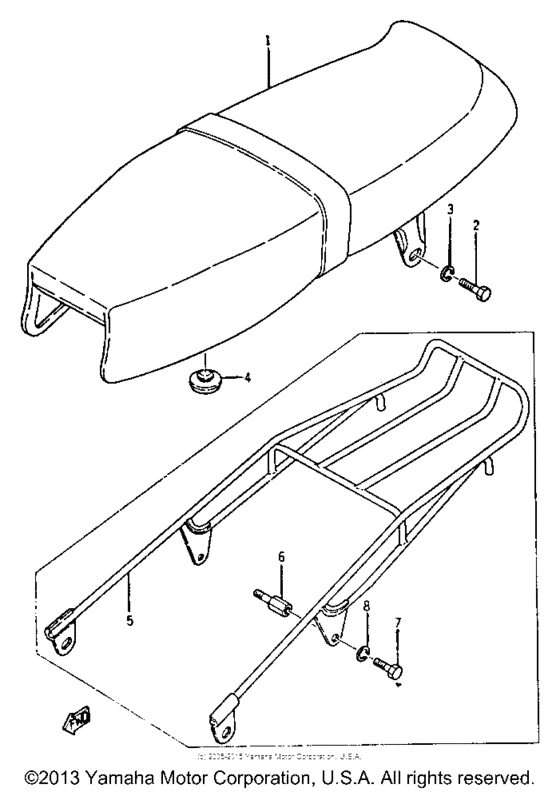

Seat and carrier Diagram Yamaha YCS1
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- YCS1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
174-24730-00-00
Double Seat Assembly
|
174-24730-00-00 |
— | ||
|
1
|
1
193-24730-00-00
Double Seat Assembly
|
193-24730-00-00 |
— | ||
|
1
|
1
174-24731-00-00
Cover, Double Seat
|
174-24731-00-00 |
— | ||
|
1
|
1
193-24731-00-00
Cover, Double Seat
|
193-24731-00-00 |
— | ||
|
2
|
2
97013-10030-00 Bolt (8J7)8J7 97303-10030-00 |
97013-10030-00 |
from US $10.06 |
||
|
3
|
3
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
4
|
4
1L9-24741-00-00 Pad, Seat |
1L9-24741-00-00 |
from US $8.36 |
||
|
5
|
5
174-24830-00-00
Sub Carrier Assembly
|
174-24830-00-00 |
— | ||
|
6
|
6
901-09083-02-00
Bolt
|
901-09083-02-00 |
— | ||
|
7
|
7
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
7
|
7
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
