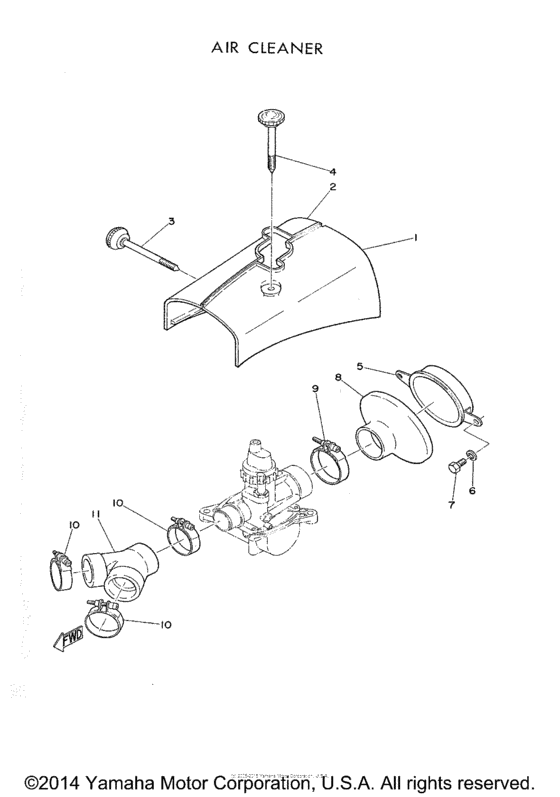

Air cleaner Diagram Yamaha YD
- Year
- 1962
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YD3
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
148-15414-00-00
Cover, Carburetor (Lh)
|
148-15414-00-00 |
— | ||
|
2
|
2
148-15424-00-00
Cover, Carburetor (Rh)
|
148-15424-00-00 |
— | ||
|
3
|
3
146-15481-00-00
Bolt
6-81 |
146-15481-00-00 |
— | ||
|
4
|
4
146-15482-00-00
Bolt
6-70 |
146-15482-00-00 |
— | ||
|
5
|
5
148-14410-00-00
Air Cleaner Assy
|
148-14410-00-00 |
— | ||
|
6
|
6
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
91201-06010-00 Bolt |
91201-06010-00 |
US $1.56 |
||
| replacement | |||||
|
7
|
7
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
8
|
8
148-14453-00-00
Joint
|
148-14453-00-00 |
— | ||
| replacements | |||||
|
8
|
8
146-14454-00-00
SCREW,PAN HEAD
|
146-14454-00-00 |
— | ||
|
8
|
8
148-14454-00-00
New Genuine Part
|
148-14454-00-00 |
— | ||
|
9
|
9
146-14455-00-00
Clamp, Hose
|
146-14455-00-00 |
— | ||
| replacement | |||||
|
9
|
9
90460-41191-00 Clamp, Hose (5R2) |
90460-41191-00 |
from US $7.79 |
||
|
10
|
10
146-13575-00-00
Clamp,Hose
|
146-13575-00-00 |
— | ||
| replacement | |||||
|
10
|
10
904-60320-22-00
SEAT,SPRING
|
904-60320-22-00 |
— | ||
|
11
|
11
146-13565-00-00
Joint, Carburetor 1
|
146-13565-00-00 |
— | ||
