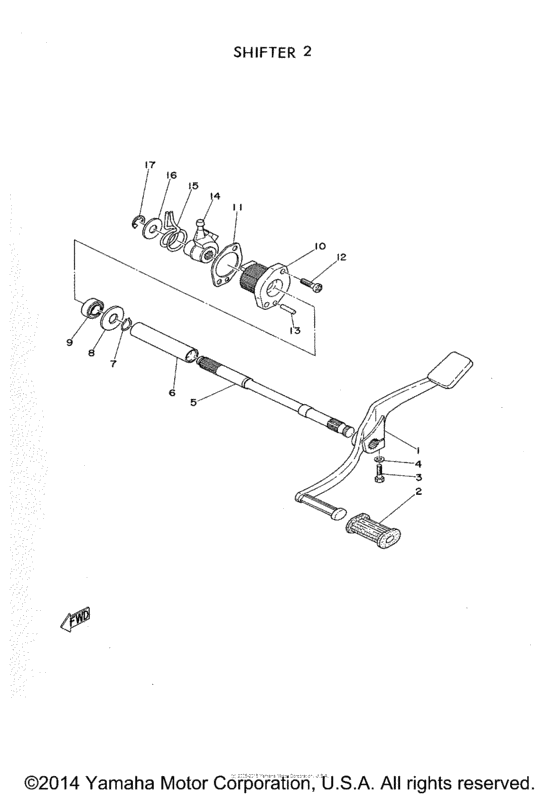

Shift shaft (2) Diagram Yamaha YD
- Year
- 1962
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YD3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
148-18111-01-00
Pedal,shift
|
148-18111-01-00 |
— | ||
| replacement | |||||
|
1
|
1
148-18111-00-00
SHIFTER ASSY
|
148-18111-00-00 |
— | ||
|
2
|
2
132-18113-00-00 Cover, Shift Pedal |
132-18113-00-00 |
US $4.11 |
||
| replacement | |||||
|
2
|
2
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
3
|
3
150-18124-00-00
Spring, Torsion
|
150-18124-00-00 |
— | ||
| replacement | |||||
|
3
|
3
905-08402-09-00
Spring, Torsion
|
905-08402-09-00 |
— | ||
|
4
|
4
146-15615-00-00
Washer, Plain
|
146-15615-00-00 |
— | ||
| replacement | |||||
|
4
|
4
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
5
|
5
148-18125-01-00
Shaft, Change
|
148-18125-01-00 |
— | ||
|
6
|
6
150-18138-00-00
Washer, Change Shaft 2
18-12.3-0.2 |
150-18138-00-00 |
— | ||
| replacement | |||||
|
6
|
6
90201-12168-00
Washer, Plate (12.3-18-0.2) (15
18-12.3-0.2 |
90201-12168-00 |
— | ||
|
7
|
7
148-18136-00-00
Clip
|
148-18136-00-00 |
— | ||
|
8
|
8
146-18129-00-00
Cover, Change Shaft
|
146-18129-00-00 |
— | ||
|
9
|
9
931-02120-01-00 Oil Seal |
931-02120-01-00 |
US $4.53 |
||
| replacements | |||||
|
9
|
9
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.86 |
||
|
9
|
9
93102-12106-00 Oil Seal (Sd 12-22-5 Hs) |
93102-12106-00 |
from US $3.72 |
||
|
10
|
10
148-18148-00-00
Stopper, Change Lever
|
148-18148-00-00 |
— | ||
|
11
|
11
148-18146-00-00
Gasket, Lever Stopper
|
148-18146-00-00 |
— | ||
|
12
|
12
92501-06018-00 Screw, Pan Head |
92501-06018-00 |
US $3.26 |
||
| replacement | |||||
|
12
|
12
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
13
|
13
936-04160-15-00
Pin, Dowel
4-16 |
936-04160-15-00 |
— | ||
|
14
|
14
148-18121-00-00
Lever, Change
|
148-18121-00-00 |
— | ||
|
15
|
15
148-18124-00-00
Spring, Shaft Return
|
148-18124-00-00 |
— | ||
|
16
|
16
148-18137-00-00
Washer, Change Spring
10.5-27-0.5~0.6 |
148-18137-00-00 |
— | ||
|
17
|
17
93430-08006-00 Circlip |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.52 |
||
