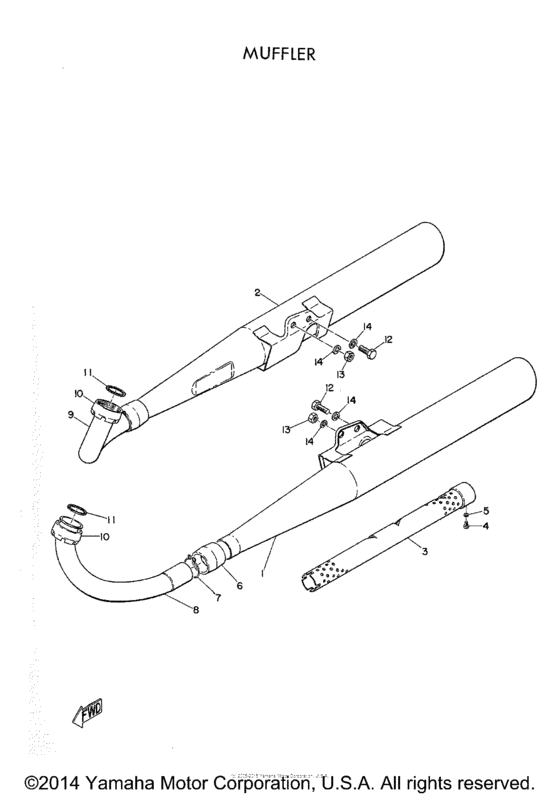

Muffler Diagram Yamaha YD
- Year
- 1962
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
150-14710-00-00
Muffler (Lh)
|
150-14710-00-00 |
— | ||
|
2
|
2
150-14720-00-00
Muffler (Rh)
|
150-14720-00-00 |
— | ||
|
3
|
3
146-14753-00-00
Silencer, Exhaust
|
146-14753-00-00 |
— | ||
| replacement | |||||
|
3
|
3
156-14753-00-00
Silencer, Exhaust
|
156-14753-00-00 |
— | ||
|
4
|
4
925-01050-08-00 Screw, Pan Head |
925-01050-08-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
5
|
5
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
150-14714-00-00
Gasket, Muffler Joint
|
150-14714-00-00 |
— | ||
|
7
|
7
150-14778-00-00
Ring, Stopper
|
150-14778-00-00 |
— | ||
|
8
|
8
150-14611-00-00
Pipe, Exhaust Lh
LH |
150-14611-00-00 |
— | ||
| replacement | |||||
|
8
|
8
156-14611-00-00
Pipe, Exhaust Lh
LH |
156-14611-00-00 |
— | ||
|
9
|
9
150-14621-00-00
Pipe, Exhaust Rh
RH |
150-14621-00-00 |
— | ||
| replacement | |||||
|
9
|
9
156-14621-00-00
Pipe, Exhaust Rh
RH |
156-14621-00-00 |
— | ||
|
10
|
10
150-14612-00-00
Nut, Ring
|
150-14612-00-00 |
— | ||
| replacement | |||||
|
10
|
10
157-14612-00-00
Nut, Ring
|
157-14612-00-00 |
— | ||
|
11
|
11
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.98 |
||
|
12
|
12
912-01100-25-00 Bolt |
912-01100-25-00 |
US $2.41 |
||
| replacement | |||||
|
12
|
12
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
13
|
13
928-01101-00-00 Nut, Self-Locking |
928-01101-00-00 |
US $1.56 |
||
| replacement | |||||
|
13
|
13
901-85100-31-00
Nut, Self-Locking
|
901-85100-31-00 |
— | ||
|
14
|
14
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
14
|
14
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
