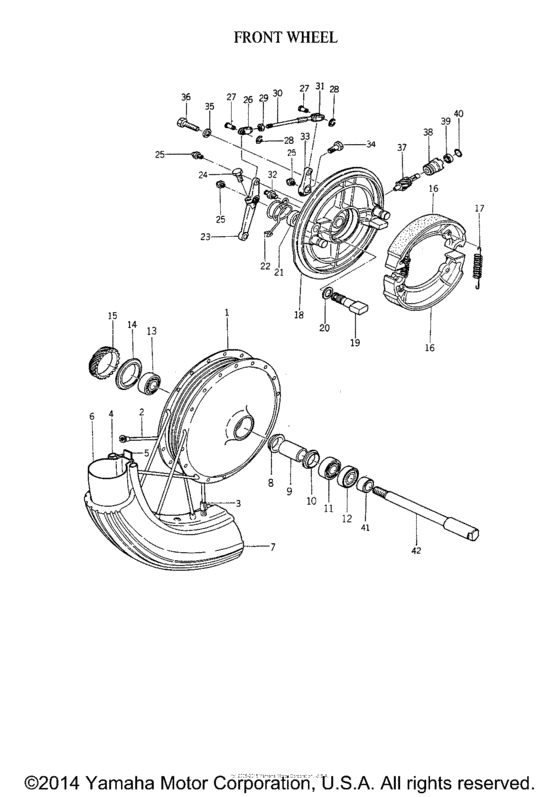

Front wheel Diagram Yamaha YD
- Year
- 1966
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YD3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
152-25111-00-00
Hub, Front
|
152-25111-00-00 |
— | ||
|
2
|
2
152-25104-00-00
Spoke Set, Front
|
152-25104-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
156-25398-00-00
Balancer, Wheel (15G)
15G |
156-25398-00-00 |
— | ||
| replacement | |||||
|
3
|
3
3HT-25398-00-00 Balancer, Wheel (15G)15G |
3HT-25398-00-00 |
from US $8.08 |
||
|
4
|
4
94416-18013-00
Rim 1.60A X 18
1.60A X 18 1.60A-18 |
94416-18013-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
1.60A X 18 1.60A-18 |
999-99999-99-00 |
— | ||
|
5
|
5
94330-18010-00 Band, Rim (2.50-18)2.50-18 |
94330-18010-00 |
US $4.39 |
||
| replacement | |||||
|
5
|
5
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.72 |
||
|
6
|
6
942-27180-09-00
Tube
2.75-18 |
942-27180-09-00 |
— | ||
| replacement | |||||
|
6
|
6
94227-18195-00 Tube2.75-18 |
94227-18195-00 |
US $37.53 |
||
|
6
|
6
94230-18012-00
Tube
3.00-18 |
94230-18012-00 |
— | ||
| replacement | |||||
|
6
|
6
94227-18195-00 Tube3.00-18 |
94227-18195-00 |
US $37.53 |
||
|
7
|
7
941-27180-24-00
Tire
2.75-18 |
941-27180-24-00 |
— | ||
| replacement | |||||
|
7
|
7
941-27183-09-00
275X18 Yoko Y506
2.75-18 |
941-27183-09-00 |
— | ||
|
7
|
7
94130-18039-00
Tire
3.00-18 |
94130-18039-00 |
— | ||
| replacements | |||||
|
7
|
7
941-30183-63-00
Yoko 300S18 Y986
3.00-18 |
941-30183-63-00 |
— | ||
|
7
|
7
999-99999-99-00
Not Available
3.00-18 |
999-99999-99-00 |
— | ||
|
7
|
7
941-30183-59-00
300x18 bs 21f
3.00-18 |
941-30183-59-00 |
— | ||
|
8
|
8
152-25115-00-00
Flange, Spacer
|
152-25115-00-00 |
— | ||
| replacement | |||||
|
8
|
8
146-25315-00-00 Flange, Spacer |
146-25315-00-00 |
from US $3.74 |
||
|
9
|
9
152-25117-00-00
Spacer, Bearing
|
152-25117-00-00 |
— | ||
| replacement | |||||
|
9
|
9
90560-17291-00
Spacer
|
90560-17291-00 |
— | ||
|
10
|
10
152-25115-00-00
Flange, Spacer
|
152-25115-00-00 |
— | ||
| replacement | |||||
|
10
|
10
146-25315-00-00 Flange, Spacer |
146-25315-00-00 |
from US $3.74 |
||
|
11
|
11
933-06203-04-00
Bearing
6203Z C3 |
933-06203-04-00 |
— | ||
| replacement | |||||
|
11
|
11
93306-20310-00 Bearing6203Z C3 |
93306-20310-00 |
from US $15.68 |
||
|
12
|
12
931-05240-06-00
Oil Seal, Os-Type
SD 24-40-8 |
931-05240-06-00 |
— | ||
|
13
|
13
933-06203-04-00
Bearing
6203Z C3 |
933-06203-04-00 |
— | ||
| replacement | |||||
|
13
|
13
93306-20310-00 Bearing6203Z C3 |
93306-20310-00 |
from US $15.68 |
||
|
14
|
14
931-07500-03-00
Oil Seal
SO 64-50-7 |
931-07500-03-00 |
— | ||
|
15
|
15
152-25135-00-00
Gear, Drive
|
152-25135-00-00 |
— | ||
|
16
|
16
152-25130-00-00
Brakeshoe Set-2Pcs
|
152-25130-00-00 |
— | ||
| replacements | |||||
|
16
|
16
168-W2535-00-00
Brakeshoe Set-2Pcs
|
168-W2535-00-00 |
— | ||
|
16
|
16
168-25130-00-00
Brake Shoe Comp
|
168-25130-00-00 |
— | ||
|
17
|
17
156-25333-00-00 Spring, Tension |
156-25333-00-00 |
US $4.39 |
||
| replacement | |||||
|
17
|
17
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2.36 |
||
|
18
|
18
156-25121-00-00
Plate, Brake Shoe
~4736 |
156-25121-00-00 |
— | ||
| replacement | |||||
|
18
|
18
156-25121-01-00
Plate, Brake Shoe
~4736 |
156-25121-01-00 |
— | ||
|
18
|
18
156-25121-01-00
Plate, Brake Shoe
|
156-25121-01-00 |
— | ||
|
19
|
19
148-25151-00-00
Camshaft
|
148-25151-00-00 |
— | ||
| replacement | |||||
|
19
|
19
168-25151-00-00
Camshaft
|
168-25151-00-00 |
— | ||
|
20
|
20
148-25353-00-00 Shim, Camshaft |
148-25353-00-00 |
from US $2.98 |
||
|
21
|
21
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
22
|
22
152-25157-00-00
Spring, Torsion
|
152-25157-00-00 |
— | ||
| replacement | |||||
|
22
|
22
905-08230-32-00
Spring, Torsion
|
905-08230-32-00 |
— | ||
|
23
|
23
152-25155-00-00
Lever, Camshaft 1
~4736 |
152-25155-00-00 |
— | ||
|
23
|
23
156-25155-00-00
Lever, Camshaft 1
DS34737~ |
156-25155-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
DS34737~ |
999-99999-99-00 |
— | ||
|
24
|
24
912-03060-18-00 Bolt |
912-03060-18-00 |
US $0.93 |
||
| replacement | |||||
|
24
|
24
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
25
|
25
93700-06001-00 Nipple, Grease |
93700-06001-00 |
US $3.83 |
||
| replacement | |||||
|
25
|
25
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
26
|
26
152-25163-00-00 End, Rod 1 |
152-25163-00-00 |
US $40.01 |
||
|
27
|
27
152-25165-00-00
Pin, Spec''l Shape
|
152-25165-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
93430-04002-00 Circlip |
93430-04002-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
29
|
29
953-80063-00-00
Nut
|
953-80063-00-00 |
— | ||
|
30
|
30
152-25161-00-00
Rod, Connecting
|
152-25161-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
152-25164-00-00 End, Rod 2 |
152-25164-00-00 |
from US $13.48 |
||
|
32
|
32
152-25125-00-00
Spring, Hook Pin
|
152-25125-00-00 |
— | ||
|
33
|
33
152-25156-00-00
Lever, Camshaft 2
~4736 |
152-25156-00-00 |
— | ||
|
33
|
33
156-25156-00-00
Lever, Camshaft 2
DS34737~ |
156-25156-00-00 |
— | ||
| replacement | |||||
|
33
|
33
168-25156-00-00
Lever, Camshaft 2
DS34737~ |
168-25156-00-00 |
— | ||
|
34
|
34
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
34
|
34
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
35
|
35
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
35
|
35
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
36
|
36
91203-06020-00 Bolt |
91203-06020-00 |
US $0.93 |
||
| replacement | |||||
|
36
|
36
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
37
|
37
152-25138-00-00
Gear, Meter
|
152-25138-00-00 |
— | ||
|
38
|
38
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
39
|
39
93104-07003-00 Oil Seal, So-TypeSO 7-14-4 |
93104-07003-00 |
from US $1.84 |
||
|
40
|
40
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
40
|
40
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.39 |
||
|
41
|
41
903-87171-36-00
Collar
17-24-10 |
903-87171-36-00 |
— | ||
|
42
|
42
152-25181-00-00
Axle, Wheel
|
152-25181-00-00 |
— | ||
