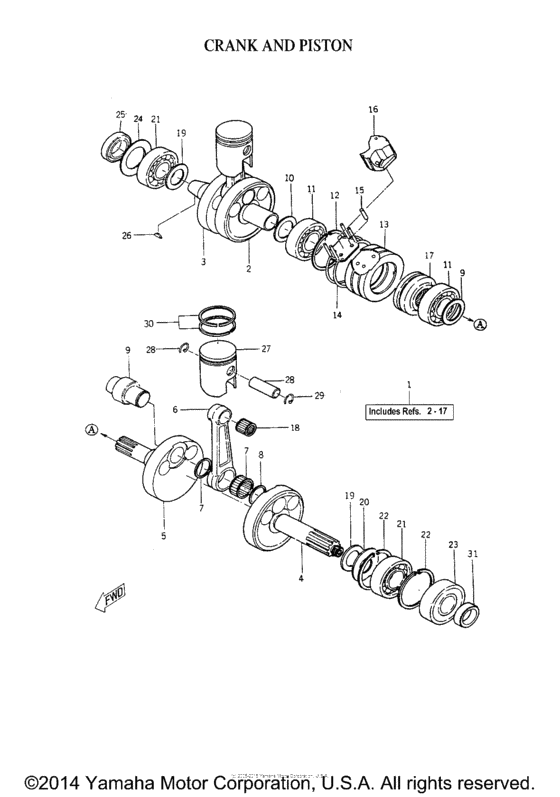

Crank and piston Diagram Yamaha YD
- Year
- 1965
- Sales region
- USA
- Engine Capacity
- 300
- Model
- YD3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-11400-00-00
Crankshaft Assembly
|
156-11400-00-00 |
— | ||
|
2
|
2
156-11432-01-00
Crank 2 (Lh)
LH |
156-11432-01-00 |
— | ||
|
3
|
3
156-11442-00-00
Crank 2 (Rh)
RH |
156-11442-00-00 |
— | ||
|
4
|
4
156-11412-00-00
Crank 1 (Lh)
LH |
156-11412-00-00 |
— | ||
|
5
|
5
156-11422-00-00
Crank 2
|
156-11422-00-00 |
— | ||
| replacement | |||||
|
5
|
5
156-11422-01-00
Crank 2
|
156-11422-01-00 |
— | ||
|
6
|
6
156-11651-00-00
Rod, Connecting
|
156-11651-00-00 |
— | ||
| replacement | |||||
|
6
|
6
246-11651-00-00
Rod, Connecting
|
246-11651-00-00 |
— | ||
|
7
|
7
933-10424-17-00
Bearing
|
933-10424-17-00 |
— | ||
|
8
|
8
152-11685-00-00 Washer, Special Shape |
152-11685-00-00 |
US $5.53 |
||
| replacement | |||||
|
8
|
8
902-09240-73-00 Washer, Special Shape |
902-09240-73-00 |
from US $4.64 |
||
|
9
|
9
156-11681-00-00
Pin, Crank 1
|
156-11681-00-00 |
— | ||
|
10
|
10
156-11564-00-04
Shim, Crank 4 (25-44-0.5)
25-44-0.5 |
156-11564-00-04 |
— | ||
|
11
|
11
933-06206-01-00
Bearing (B6206C3)
6206C3 |
933-06206-01-00 |
— | ||
| replacement | |||||
|
11
|
11
933-06206-27-00 Bearing (5X5)6206C3 |
933-06206-27-00 |
from US $30.76 |
||
|
12
|
12
93420-62017-00 CirclipR62 |
93420-62017-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
99009-62500-00 CirclipR62 |
99009-62500-00 |
from US $1.98 |
||
|
13
|
13
156-11511-01-00
Cover, Crank
|
156-11511-01-00 |
— | ||
|
14
|
14
156-11512-00-00
Seal, Crank Cover
|
156-11512-00-00 |
— | ||
|
15
|
15
93604-14012-00 Pin, Dowel |
93604-14012-00 |
from US $2.69 |
||
|
16
|
16
156-11541-00-00
Metal, Filler
|
156-11541-00-00 |
— | ||
|
17
|
17
145-11515-01-00
Seal, Labyrinth 1
|
145-11515-01-00 |
— | ||
|
18
|
18
933-10216-07-00 Bearing, Cylindrical |
933-10216-07-00 |
US $27.49 |
||
| replacement | |||||
|
18
|
18
933-10216-L2-00 Bearing, Cylindrical |
933-10216-L2-00 |
from US $27.49 |
||
|
19
|
19
156-11562-00-05
Shim, Crank 2
25.4-44-0.5 |
156-11562-00-05 |
— | ||
|
20
|
20
156-11561-00-00
Shim, Crank 1
25.4-48-4 |
156-11561-00-00 |
— | ||
|
21
|
21
93306-30501-00 Bearing6305C3 |
93306-30501-00 |
US $25.08 |
||
| replacement | |||||
|
21
|
21
93306-30536-00 Bearing (8R9)6305C3 |
93306-30536-00 |
from US $25.08 |
||
|
22
|
22
93420-62017-00 Circlip |
93420-62017-00 |
from US $1.98 |
||
| replacement | |||||
|
22
|
22
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
23
|
23
931-03350-15-00
Oil Seal
SW 35-62-8 |
931-03350-15-00 |
— | ||
|
24
|
24
156-11563-00-00 Shim, Crank 352-62-0.3 |
156-11563-00-00 |
from US $8.93 |
||
|
25
|
25
931-03200-04-00 Oil SealSW 20-36-10 |
931-03200-04-00 |
from US $13.88 |
||
| replacement | |||||
|
25
|
25
931-03201-10-00 Oil Seal, Sw-TypeSW 20-36-10 |
931-03201-10-00 |
from US $13.88 |
||
|
26
|
26
150-11545-00-00
Key, Woodruff
|
150-11545-00-00 |
— | ||
| replacement | |||||
|
26
|
26
90280-04005-00
Key, Woodruff
|
90280-04005-00 |
— | ||
|
27
|
27
156-11637-00-00
Piston 3 O/s 0.75
O/S 0.75 ENG # 7001~ |
156-11637-00-00 |
— | ||
|
27
|
27
156-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 ENG # 7001~ |
156-11635-00-00 |
— | ||
|
27
|
27
156-11631-00-96
Piston Std
7001~ |
156-11631-00-96 |
— | ||
|
27
|
27
156-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 ENG # 7001~ |
156-11636-00-00 |
— | ||
|
27
|
27
156-11638-00-00
Piston 4 O/s 1.00
O/S 1.00 ENG # 7001~ |
156-11638-00-00 |
— | ||
|
28
|
28
137-11633-00-00
Pin, Piston
|
137-11633-00-00 |
— | ||
| replacement | |||||
|
28
|
28
137-11633-10-00 Pin, Piston |
137-11633-10-00 |
from US $18.99 |
||
|
29
|
29
137-11634-00-00 Circlip |
137-11634-00-00 |
US $1.70 |
||
| replacement | |||||
|
29
|
29
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
30
|
30
156-11610-40-00
Piston Ringset 4Th
4TH |
156-11610-40-00 |
— | ||
|
30
|
30
156-11601-20-00
Piston Ringset 2Nd
2ND |
156-11601-20-00 |
— | ||
|
30
|
30
156-11601-10-00
Piston Ringset 1St (0.25Mm)
1ST 0.25MM |
156-11601-10-00 |
— | ||
|
30
|
30
156-11601-00-00
Piston Ringset Std
|
156-11601-00-00 |
— | ||
|
30
|
30
156-11610-30-00
Piston Ringset 3Rd
3RD |
156-11610-30-00 |
— | ||
|
31
|
31
156-16136-00-00
Collar
|
156-16136-00-00 |
— | ||
| replacement | |||||
|
31
|
31
903-87251-89-00
NUT,HEXAGON
|
903-87251-89-00 |
— | ||
