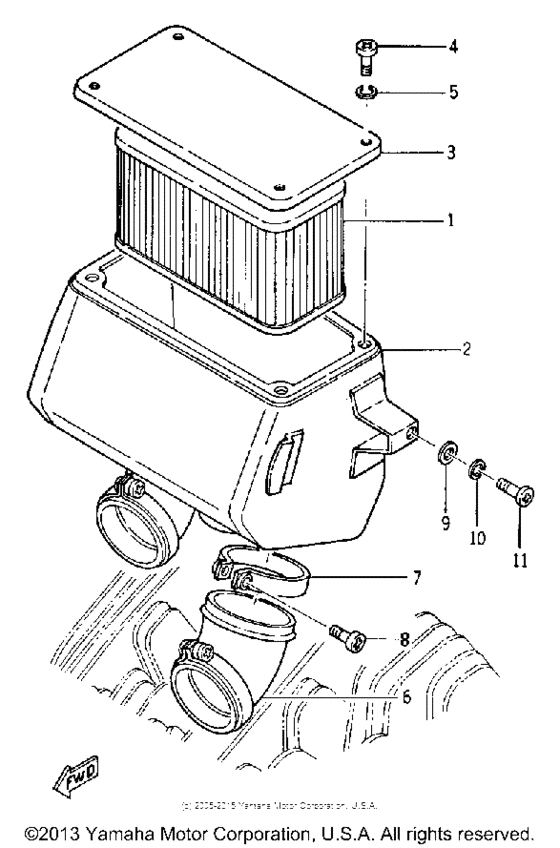

Air cleaner Diagram Yamaha YD
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 500
- Model
- YD5
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
170-14451-01-00
Element, Air Clnr
|
170-14451-01-00 |
— | ||
|
2
|
2
170-14411-00-00
Case, Air Cleaner 1
|
170-14411-00-00 |
— | ||
|
3
|
3
170-14412-00-00
Cap, Cleaner Case 1
|
170-14412-00-00 |
— | ||
|
4
|
4
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
170-14453-00-00
Joint, Air Clnr 1
|
170-14453-00-00 |
— | ||
|
7
|
7
904-60492-48-00
Clamp, Hose
|
904-60492-48-00 |
— | ||
|
8
|
8
985-11040-25-00
Screw, Pan Head
|
985-11040-25-00 |
— | ||
| replacement | |||||
|
8
|
8
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
8
|
8
925-01040-25-00
Screw, Pan Head
|
925-01040-25-00 |
— | ||
|
9
|
9
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
