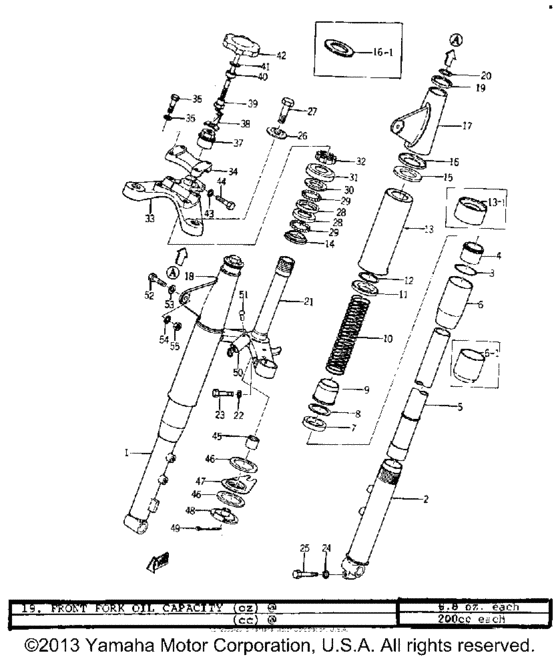

Front fork Diagram Yamaha YD
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 500
- Model
- YD5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204-23100-00-29
Front Fork Assembly
|
204-23100-00-29 |
— | ||
|
1
|
1
204-23100-00-33
Front Fork Assembly
|
204-23100-00-33 |
— | ||
|
1
|
1
204-23100-00-63
Front Fork Assembly
|
204-23100-00-63 |
— | ||
|
1
|
1
171-23136-01-00
Tube, Outer 2
ISO |
171-23136-01-00 |
— | ||
|
2
|
2
172-23100-20-81
Front Fork Assembly
|
172-23100-20-81 |
— | ||
|
2
|
2
171-23126-01-00
Tube, Outer 1
ISO |
171-23126-01-00 |
— | ||
|
3
|
3
156-23147-00-00
O-Ring
|
156-23147-00-00 |
— | ||
|
4
|
4
171-23125-01-00
Metal, Slide 1
|
171-23125-01-00 |
— | ||
|
4
|
4
156-23125-00-00
Metal, Slide 1
|
156-23125-00-00 |
— | ||
|
5
|
5
171-23124-01-00
Tube, Inner 1
|
171-23124-01-00 |
— | ||
|
5
|
5
156-23124-01-00
Tube, Inner 1
|
156-23124-01-00 |
— | ||
|
6
|
6
246-23150-00-00
Outer Nut
|
246-23150-00-00 |
— | ||
|
6
|
6
172-23127-00-00
Nut, Outer Tube
|
172-23127-00-00 |
— | ||
|
7
|
7
2K5-23145-00-00 Oil Seal |
2K5-23145-00-00 |
from US $26.92 |
||
|
8
|
8
171-23146-00-00
Washer, Oil Seal
|
171-23146-00-00 |
— | ||
|
9
|
9
156-23143-00-00
Seat, Spring Lower
|
156-23143-00-00 |
— | ||
|
10
|
10
172-23141-00-00
Spring, Front Fork
|
172-23141-00-00 |
— | ||
|
11
|
11
171-23142-01-00
Seat, Spring Upper
|
171-23142-01-00 |
— | ||
|
11
|
11
156-23142-00-00
Seat, Spring Upper
|
156-23142-00-00 |
— | ||
|
12
|
12
171-23149-00-00
Washer, Spring Upr
|
171-23149-00-00 |
— | ||
|
13
|
13
171-23123-01-63
Cover, Lower 1
RED |
171-23123-01-63 |
— | ||
|
13
|
13
172-23122-00-00
Cover, Outer 1
|
172-23122-00-00 |
— | ||
|
14
|
14
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
14
|
14
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
15
|
15
171-23163-01-00
Gasket
|
171-23163-01-00 |
— | ||
|
15
|
15
172-23163-00-00
Gasket
|
172-23163-00-00 |
— | ||
|
16
|
16
171-23116-01-00
Guide, Cover Lower
|
171-23116-01-00 |
— | ||
|
16
|
16
157-23161-00-00
Washer, Light Stay
|
157-23161-00-00 |
— | ||
|
17
|
17
171-23121-01-63
Cover, Upper 1
RED |
171-23121-01-63 |
— | ||
|
17
|
17
171-23121-01-29
Cover, Upper 1
BLUE |
171-23121-01-29 |
— | ||
|
17
|
17
171-23121-01-81
Cover, Upper 1
PRIMER |
171-23121-01-81 |
— | ||
|
18
|
18
204-23131-00-33
Cover, Upper 2
RED |
204-23131-00-33 |
— | ||
|
18
|
18
204-23131-00-29
Cover, Upper 2
BLUE |
204-23131-00-29 |
— | ||
|
19
|
19
171-23115-01-00
Guide, Cover Upper
|
171-23115-01-00 |
— | ||
|
19
|
19
156-23115-00-00
Guide, Cover Upper
|
156-23115-00-00 |
— | ||
|
20
|
20
156-23114-00-00
Packing
|
156-23114-00-00 |
— | ||
|
21
|
21
171-23340-00-33
Under Bracket
|
171-23340-00-33 |
— | ||
|
22
|
22
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
23
|
23
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
23
|
23
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
24
|
24
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
25
|
25
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
25
|
25
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
25
|
25
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
25
|
25
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
26
|
26
156-23112-00-00
Washer, Cap
|
156-23112-00-00 |
— | ||
|
27
|
27
156-23111-01-00
Bolt, Cap
|
156-23111-01-00 |
— | ||
|
28
|
28
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
28
|
28
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
29
|
29
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
30
|
30
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
30
|
30
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
31
|
31
156-23415-00-00
Cover, Ball Race 1
|
156-23415-00-00 |
— | ||
|
32
|
32
156-23454-00-00
Nut, Fittng 2
|
156-23454-00-00 |
— | ||
|
33
|
33
156-23435-01-00
Crown, Handle
|
156-23435-01-00 |
— | ||
|
34
|
34
156-23441-00-00
Holder, Handle Upper
|
156-23441-00-00 |
— | ||
|
35
|
35
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
36
|
36
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
36
|
36
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
37
|
37
901-79301-08-00
Nut, Spec''l Shape
|
901-79301-08-00 |
— | ||
|
38
|
38
156-23428-00-00
Spring, Damper
|
156-23428-00-00 |
— | ||
|
39
|
39
156-23424-00-00
Guide, Damper
|
156-23424-00-00 |
— | ||
|
40
|
40
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
41
|
41
90201-06061-00 Washer, Plate |
90201-06061-00 |
from US $1.35 |
||
|
42
|
42
156-23419-00-00
Shaft, Damper
|
156-23419-00-00 |
— | ||
|
43
|
43
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
44
|
44
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
44
|
44
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
45
|
45
148-23434-00-00
Holder, Damper
|
148-23434-00-00 |
— | ||
|
46
|
46
156-23425-00-00
Damper, Friction
|
156-23425-00-00 |
— | ||
|
47
|
47
169-23422-01-00
Plate, Damper 2
|
169-23422-01-00 |
— | ||
|
48
|
48
169-23421-00-33
Plate, Damper 1
|
169-23421-00-33 |
— | ||
|
49
|
49
156-23433-00-00
Pin, Cotter
|
156-23433-00-00 |
— | ||
|
50
|
50
156-23480-00-00
Steering Lock Assembly
|
156-23480-00-00 |
— | ||
|
51
|
51
122-23483-00-00
Rivet
|
122-23483-00-00 |
— | ||
|
52
|
52
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
53
|
53
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
54
|
54
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
55
|
55
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
55
|
55
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
