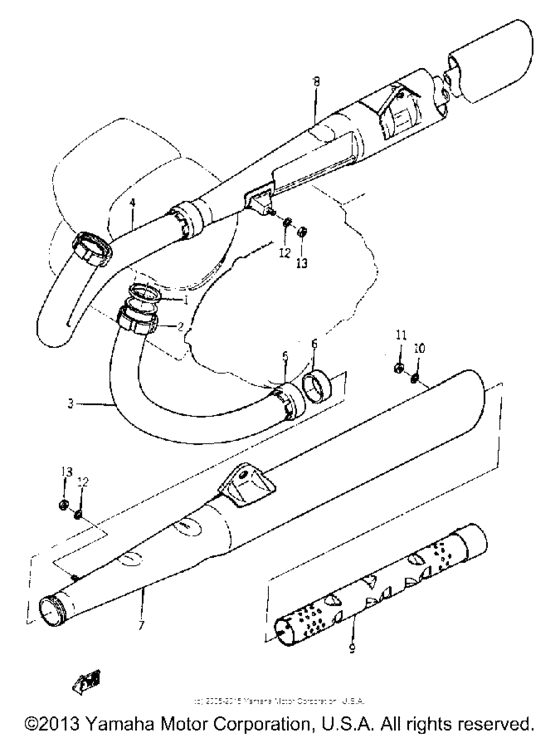

Muffler Diagram Yamaha YD
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 500
- Model
- YD5
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.98 |
||
|
2
|
2
157-14612-00-00
Nut, Ring
|
157-14612-00-00 |
— | ||
|
3
|
3
171-14611-01-00
Pipe, Exhaust L
|
171-14611-01-00 |
— | ||
|
4
|
4
171-14621-01-00
Pipe, Exhaust R
|
171-14621-01-00 |
— | ||
|
5
|
5
137-14713-00-00
Nut, Muffler Joint
|
137-14713-00-00 |
— | ||
|
6
|
6
137-14714-60-00
Gasket, Muffler
|
137-14714-60-00 |
— | ||
|
7
|
7
171-14710-00-00
Muffler Assembly L
|
171-14710-00-00 |
— | ||
|
8
|
8
171-14720-00-00
Muffler Assembly R
|
171-14720-00-00 |
— | ||
|
9
|
9
171-14753-01-00
Silencer, Exhaust
|
171-14753-01-00 |
— | ||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
953-11057-00-00
Nut(3Fv)
|
953-11057-00-00 |
— | ||
| replacement | |||||
|
11
|
11
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
13
|
13
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
13
|
13
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
