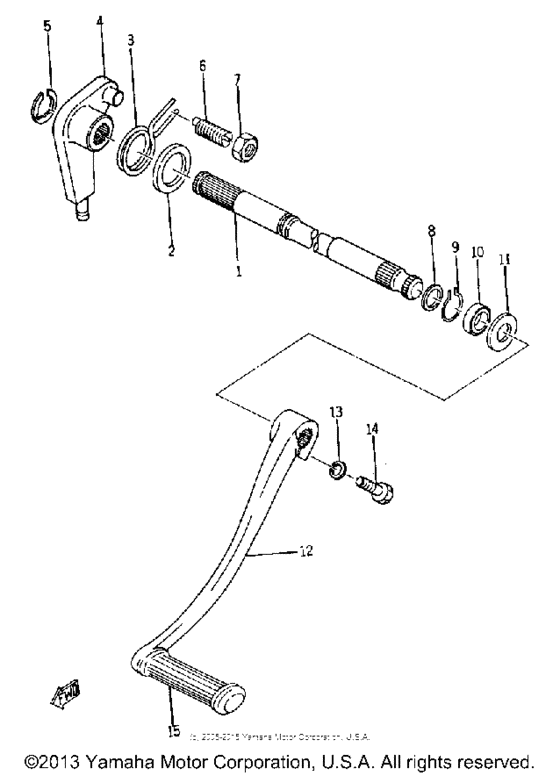

Shift shaft Diagram Yamaha YD
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 500
- Model
- YD5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
170-18351-00-00
Plate, Cam Fitting
|
170-18351-00-00 |
— | ||
|
1
|
1
170-18125-00-00
Shaft, Shift
|
170-18125-00-00 |
— | ||
|
1
|
1
902-01121-86-00
Washer, Plate
|
902-01121-86-00 |
— | ||
|
2
|
2
152-18331-00-00
Plate, Shift Cam
|
152-18331-00-00 |
— | ||
|
3
|
3
156-18333-00-00
Plate, Working
|
156-18333-00-00 |
— | ||
|
3
|
3
905-08402-09-00
Spring, Torsion
|
905-08402-09-00 |
— | ||
|
3
|
3
150-18120-00-00
Shift Lever Assembly
|
150-18120-00-00 |
— | ||
|
4
|
4
156-18180-00-00
Pawl Holder Assembly
|
156-18180-00-00 |
— | ||
|
4
|
4
93430-10015-00 Circlip |
93430-10015-00 |
from US $1.82 |
||
|
5
|
5
150-18352-00-00
Plate, Pawl
|
150-18352-00-00 |
— | ||
|
5
|
5
901-49100-45-00
Screw, Spec''l Shape
|
901-49100-45-00 |
— | ||
|
6
|
6
98701-04012-00 Screw, Flat Head |
98701-04012-00 |
from US $1.43 |
||
| replacement | |||||
|
6
|
6
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.43 |
||
|
6
|
6
901-70100-44-00
Nut, Hexagon
|
901-70100-44-00 |
— | ||
|
6
|
6
926-01040-12-00
Screw
|
926-01040-12-00 |
— | ||
|
6
|
6
90201-12168-00
Washer, Plate (12.3-18-0.2) (15
12.3-18-0.2 15 |
90201-12168-00 |
— | ||
|
7
|
7
150-18182-00-00
Pawl, Shifter
|
150-18182-00-00 |
— | ||
|
7
|
7
150-18135-00-00
Clip
|
150-18135-00-00 |
— | ||
|
8
|
8
905-01060-26-00
Spring, Compression
|
905-01060-26-00 |
— | ||
|
8
|
8
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.19 |
||
|
9
|
9
150-18189-00-00
Clip, Pawl Lock
|
150-18189-00-00 |
— | ||
|
9
|
9
170-18132-00-00
Seal, Shift Shaft
|
170-18132-00-00 |
— | ||
|
10
|
10
150-18587-00-00
Bush, Stopper
|
150-18587-00-00 |
— | ||
|
10
|
10
170-18111-01-00
Pedal, Shift
|
170-18111-01-00 |
— | ||
|
11
|
11
905-01160-98-00
Spring, Compression
|
905-01160-98-00 |
— | ||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
12
|
12
93513-32008-00 Ball 13/3213/32 |
93513-32008-00 |
US $2.24 |
||
|
12
|
12
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.05 |
||
|
13
|
13
150-18334-00-09
Shim, Shifter Cam
|
150-18334-00-09 |
— | ||
|
14
|
14
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.28 |
||
|
14
|
14
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.06 |
||
|
15
|
15
902-01060-46-00
Washer, Plate
|
902-01060-46-00 |
— | ||
|
16
|
16
905-01050-21-00
Spring, Compression
|
905-01050-21-00 |
— | ||
|
17
|
17
902-09060-83-00
Washer, Spec''l Shap
|
902-09060-83-00 |
— | ||
|
18
|
18
150-18335-00-00
Link, Shift
|
150-18335-00-00 |
— | ||
|
19
|
19
150-18189-00-00
Clip, Pawl Lock
|
150-18189-00-00 |
— | ||
|
20
|
20
97001-06018-00 Bolt |
97001-06018-00 |
from US $0.90 |
||
| replacement | |||||
|
20
|
20
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.05 |
||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $0.90 |
||
|
22
|
22
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
22
|
22
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.94 |
||
|
22
|
22
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
23
|
23
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $0.90 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
25
|
25
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
25
|
25
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.20 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
27
|
27
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
27
|
27
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.20 |
||
|
28
|
28
902-01060-46-00
Washer, Plate
|
902-01060-46-00 |
— | ||
|
29
|
29
905-01050-21-00
Spring, Compression
|
905-01050-21-00 |
— | ||
|
30
|
30
902-09060-83-00
Washer, Spec''l Shap
|
902-09060-83-00 |
— | ||
|
31
|
31
150-18189-00-00
Clip, Pawl Lock
|
150-18189-00-00 |
— | ||
|
32
|
32
150-18318-00-00
Shaft, Shifter
|
150-18318-00-00 |
— | ||
|
33
|
33
152-18311-00-00
Fork, Shift 1
|
152-18311-00-00 |
— | ||
|
34
|
34
152-18312-00-00
Fork, Shift 2
|
152-18312-00-00 |
— | ||
|
35
|
35
152-18313-00-00
Fork, Shift 3
|
152-18313-00-00 |
— | ||
|
36
|
36
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.28 |
||
|
37
|
37
150-18316-00-00
Rotor
|
150-18316-00-00 |
— | ||
|
38
|
38
902-49020-03-00
Pin, Spec''l Shape
|
902-49020-03-00 |
— | ||
|
39
|
39
903-34100-06-00
Plug, Straight
|
903-34100-06-00 |
— | ||
