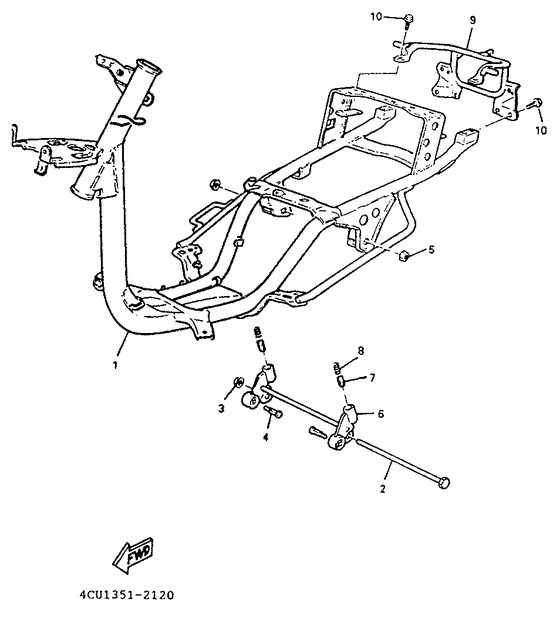

Frame Diagram Yamaha YE50 Zest 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4FW6
- Sales region
- Germany (999)
- Engine Capacity
- 50
- Model
- YE50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4CU-F1110-10-00
Frame Comp
Yamaha black |
4CU-F1110-10-00 |
— | ||
|
02
|
02
3KJ-21481-00-00 Bolt, Engine Mounting 1 |
3KJ-21481-00-00 |
US $15.26 |
||
|
03
|
03
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $7.81 |
||
|
04
|
04
2T4-21481-01-00 Bolt, Engine Mounting 1 |
2T4-21481-01-00 |
from US $4.60 |
||
|
05
|
05
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.39 |
||
|
06
|
06
4CU-F1410-00-00
Engine Bracket Comp
Yamaha black |
4CU-F1410-00-00 |
— | ||
|
07
|
07
2T4-2139X-00-00 Damper |
2T4-2139X-00-00 |
US $1.73 |
||
| replacement | |||||
|
07
|
07
3WG-F139X-00-00
Damper
|
3WG-F139X-00-00 |
— | ||
|
08
|
08
90501-29517-00 Spring, Compression |
90501-29517-00 |
US $2.54 |
||
| replacement | |||||
|
08
|
08
90501-290K2-00 Spring, Compression |
90501-290K2-00 |
US $2.54 |
||
|
09
|
09
4CU-F1232-00-00
Reinforcement, Tail
|
4CU-F1232-00-00 |
— | ||
|
10
|
10
NG8-88340-00-00
Washer
|
NG8-88340-00-00 |
— | ||
|
10
|
10
4FW-F1182-20-00
Manufacturer Plate
|
4FW-F1182-20-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
4FW-H2377-00-00
Label
|
4FW-H2377-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
90267-32801-00 Rivet, Blind |
90267-32801-00 |
US $2.69 |
||
|
10
|
10
90464-20172-00
Clamp
|
90464-20172-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $0.90 |
||
| replacement | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
