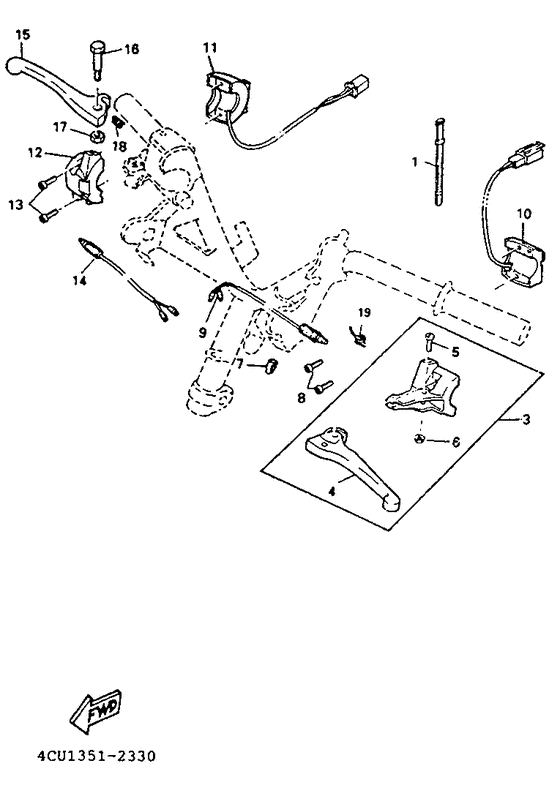

Handle switch & lever Diagram Yamaha YE50 Zest 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4FW6
- Sales region
- Germany (999)
- Engine Capacity
- 50
- Model
- YE50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4KH-H3936-00-00 Band, Switch Cord |
4KH-H3936-00-00 |
from US $3.09 |
||
| replacement | |||||
|
01
|
01
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.09 |
||
|
03
|
03
4KH-H2910-00-00
Lever Holder Assy (Left)
|
4KH-H2910-00-00 |
— | ||
|
04
|
04
4KH-H3912-00-00 Lever 1 |
4KH-H3912-00-00 |
US $27.97 |
||
|
05
|
05
3VL-H3915-00-00 Screw, Lever Fitting |
3VL-H3915-00-00 |
from US $2.61 |
||
|
06
|
06
3VL-H3916-00-00 Nut, Lever Fitting |
3VL-H3916-00-00 |
from US $2.20 |
||
|
07
|
07
3VL-H636A-00-00
End, Wire 1
|
3VL-H636A-00-00 |
— | ||
|
08
|
08
3VL-H3945-00-00 Bolt, Lever |
3VL-H3945-00-00 |
from US $2.35 |
||
|
09
|
09
3VL-H3980-00-00
Front Stop Switch Assy
|
3VL-H3980-00-00 |
— | ||
| replacements | |||||
|
09
|
09
3VL-H3980-02-00
Front Stop Switch
|
3VL-H3980-02-00 |
— | ||
|
09
|
09
5XL-H3980-00-00 Front Stop Switch |
5XL-H3980-00-00 |
US $34.70 |
||
|
10
|
10
4CA-H3976-10-00
Switch, Handle 1
|
4CA-H3976-10-00 |
— | ||
| replacements | |||||
|
10
|
10
4CA-H3976-20-00 Switch Handle 1 |
4CA-H3976-20-00 |
US $112.72 |
||
|
10
|
10
4CA-H3976-21-00
Switch Handle 1
|
4CA-H3976-21-00 |
— | ||
|
11
|
11
4KH-H3975-00-00
Switch, Handle 2
|
4KH-H3975-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4KH-H3975-01-00
Switch, Handle 2
|
4KH-H3975-01-00 |
— | ||
|
12
|
12
4CU-H3987-01-00 Case, Switch Lower |
4CU-H3987-01-00 |
from US $36.72 |
||
|
13
|
13
3VL-H3945-00-00 Bolt, Lever |
3VL-H3945-00-00 |
from US $2.35 |
||
|
14
|
14
4CU-83980-00-00 Front Stop Switch |
4CU-83980-00-00 |
from US $24.67 |
||
| replacement | |||||
|
14
|
14
2NA-83980-00-00 Front Stop Switch Assy |
2NA-83980-00-00 |
from US $29.02 |
||
|
15
|
15
2NA-83922-01-00 Lever 2 |
2NA-83922-01-00 |
from US $22.29 |
||
|
16
|
16
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.43 |
||
|
17
|
17
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.05 |
||
|
18
|
18
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.50 |
||
|
19
|
19
4KH-H3962-00-00 Spring |
4KH-H3962-00-00 |
from US $1.10 |
||
