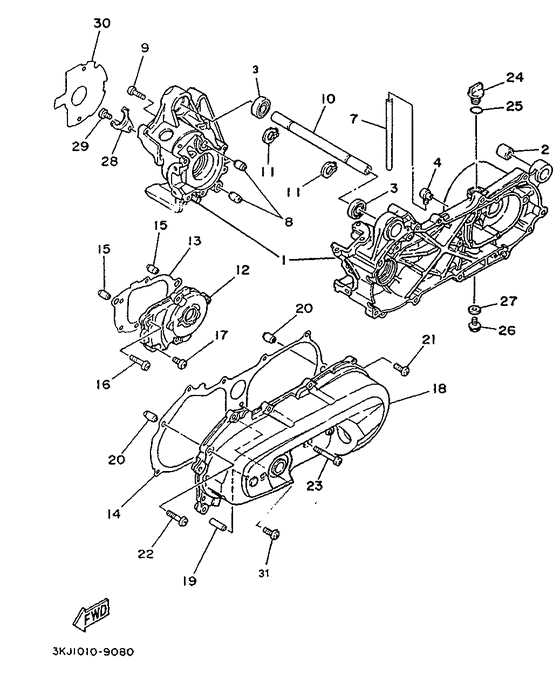

Crankcase Diagram Yamaha YE50 Zest 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4LN3
- Sales region
- Switzerland (999)
- Engine Capacity
- 50
- Model
- YE50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4KH-E5150-00-00
Crankcase Assy
|
4KH-E5150-00-00 |
— | ||
|
02
|
02
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $7.79 |
||
|
03
|
03
93306-00319-00 Bearing |
93306-00319-00 |
from US $24.17 |
||
| replacement | |||||
|
03
|
03
93306-00316-00 Bearing |
93306-00316-00 |
from US $19.88 |
||
|
04
|
04
4CU-E5371-00-00
Breather
|
4CU-E5371-00-00 |
— | ||
|
07
|
07
90446-11347-00 Hose |
90446-11347-00 |
from US $3.97 |
||
| replacement | |||||
|
07
|
07
91A21-07020-00 Hose |
91A21-07020-00 |
from US $3.97 |
||
|
08
|
08
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
08
|
08
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
09
|
09
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
10
|
10
4CU-E5317-00-00
Spacer, Engine Mount
|
4CU-E5317-00-00 |
— | ||
|
11
|
11
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.56 |
||
|
12
|
12
4CU-E5421-00-00
Cover, Crankcase 2
|
4CU-E5421-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
4CU-E5461-00-00
Gasket, Crankcase Cover 2
|
4CU-E5461-00-00 |
— | ||
|
14
|
14
4CU-E5451-00-00
Gasket, Crankcase Cover 1
|
4CU-E5451-00-00 |
— | ||
|
15
|
15
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
15
|
15
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
15
|
15
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
16
|
16
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
17
|
17
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
17
|
17
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
18
|
18
4CU-E5411-00-00
Cover, Crankcase 1
|
4CU-E5411-00-00 |
— | ||
|
19
|
19
3VL-E5659-00-00 Shaft |
3VL-E5659-00-00 |
from US $6.89 |
||
| replacement | |||||
|
19
|
19
3VL-E5659-10-00 Shaft |
3VL-E5659-10-00 |
from US $2.99 |
||
|
20
|
20
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
20
|
20
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
20
|
20
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
21
|
21
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
21
|
21
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
22
|
22
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
23
|
23
98507-06065-00 Screw, Pan Head |
98507-06065-00 |
from US $2.27 |
||
|
24
|
24
3VL-E5363-00-00 Plug, Oil |
3VL-E5363-00-00 |
from US $4.52 |
||
|
25
|
25
93120-14104-00
Oil Seal
|
93120-14104-00 |
— | ||
|
26
|
26
958-07080-16-00
Bolt, Flange
|
958-07080-16-00 |
— | ||
| replacements | |||||
|
26
|
26
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
26
|
26
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
28
|
28
3VL-E5128-00-00 Holder |
3VL-E5128-00-00 |
from US $6.66 |
||
|
29
|
29
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
29
|
29
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.36 |
||
|
30
|
30
4CU-E5462-00-00
Gasket, Crankcase Cover 3
|
4CU-E5462-00-00 |
— | ||
|
31
|
31
98580-06025-00 Screw, Pan Head |
98580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
31
|
31
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
