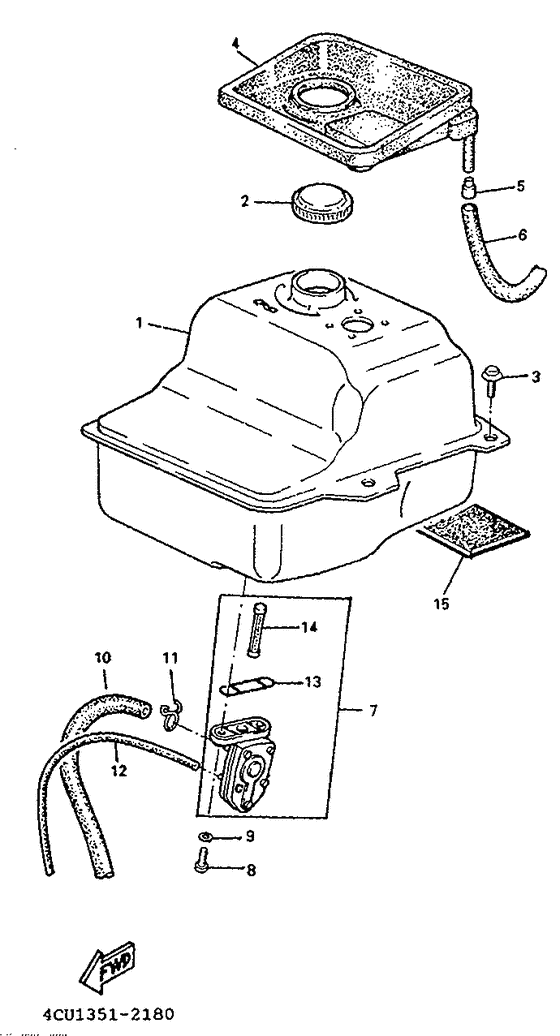

Fuel tank Diagram Yamaha YE50 Zest 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4LN3
- Sales region
- Switzerland (999)
- Engine Capacity
- 50
- Model
- YE50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4FW-F4110-00-11
Fuel Tank Comp
Yamaha black |
4FW-F4110-00-11 |
— | ||
|
02
|
02
3VL-F4610-01-00
Cap Assy
|
3VL-F4610-01-00 |
— | ||
|
03
|
03
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
03
|
03
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
04
|
04
4CU-F414A-00-00
Cover, Filler
|
4CU-F414A-00-00 |
— | ||
|
05
|
05
3VL-F4545-00-00
Spacer, Fuel Cock
|
3VL-F4545-00-00 |
— | ||
|
06
|
06
3VL-F4318-10-00
Pipe, Overflow
|
3VL-F4318-10-00 |
— | ||
|
07
|
07
3VL-F4500-00-00 Fuel Cock Assy 1Fuel cock assy 1 |
3VL-F4500-00-00 |
US $99.97 |
||
| replacement | |||||
|
07
|
07
5XW-F4500-00-00 Fuel Cock Assy |
5XW-F4500-00-00 |
US $99.97 |
||
|
08
|
08
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
09
|
09
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
09
|
09
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
10
|
10
4CU-24311-00-00 Pipe, Fuel 1 |
4CU-24311-00-00 |
US $16.72 |
||
| replacement | |||||
|
10
|
10
3YR-24312-00-00 Pipe, Fuel 1 |
3YR-24312-00-00 |
from US $16.72 |
||
|
11
|
11
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
11
|
11
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
12
|
12
90445-07177-00 Hose |
90445-07177-00 |
US $4.39 |
||
| replacement | |||||
|
12
|
12
90445-07MF1-00 Hose (L570) |
90445-07MF1-00 |
from US $4.39 |
||
|
13
|
13
3VL-F4512-00-00 Gasket |
3VL-F4512-00-00 |
US $10.60 |
||
|
14
|
14
3VL-F4501-00-00 Filter, Fuel |
3VL-F4501-00-00 |
US $8.93 |
||
|
15
|
15
4CU-F4141-00-00
Protector, Fuel Tank
|
4CU-F4141-00-00 |
— | ||
