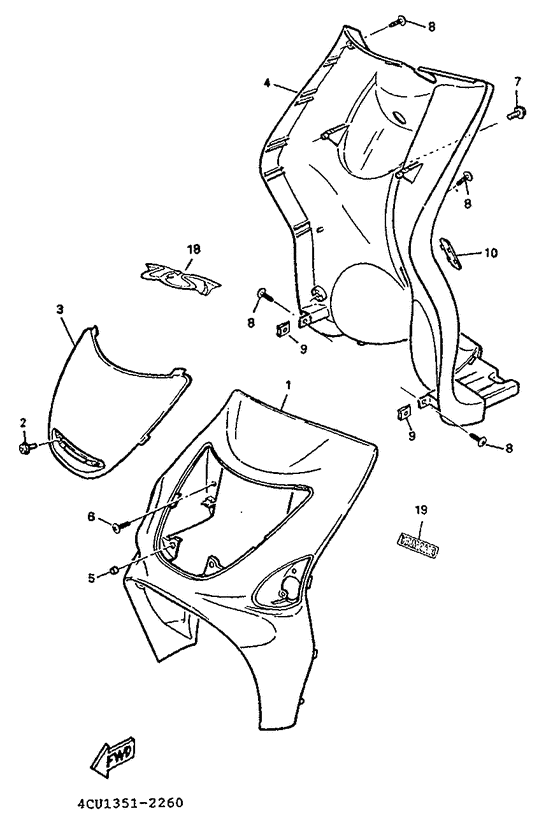

Leg shield Diagram Yamaha YE50 Zest 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4LN3
- Sales region
- Switzerland (999)
- Engine Capacity
- 50
- Model
- YE50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4CU-F8311-00-4B
Leg Shield 1
Black 2 |
4CU-F8311-00-4B |
— | ||
|
01
|
01
4CU-F8311-00-PD
Leg Shield 1
Vivid red candy 4 |
4CU-F8311-00-PD |
— | ||
|
01
|
01
4CU-F8311-00-PE
Leg Shield 1
Dark purplish blue c |
4CU-F8311-00-PE |
— | ||
|
02
|
02
90159-06067-00 Screw, With Washer |
90159-06067-00 |
from US $1.56 |
||
|
03
|
03
4CU-F8313-00-4B
Lid
Black 2 |
4CU-F8313-00-4B |
— | ||
|
03
|
03
4CU-F8313-00-PD
Lid
Vivid red candy 4 |
4CU-F8313-00-PD |
— | ||
|
03
|
03
4CU-F8313-00-PE
Lid
Dark purplish c |
4CU-F8313-00-PE |
— | ||
|
04
|
04
4CU-F8312-00-00
Leg Shield 2
|
4CU-F8312-00-00 |
— | ||
|
05
|
05
90387-08057-00 Collar |
90387-08057-00 |
from US $2.69 |
||
|
06
|
06
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
06
|
06
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
07
|
07
90159-06182-00 Screw, With Washer(3Yj) |
90159-06182-00 |
from US $1.70 |
||
|
08
|
08
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
08
|
08
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
09
|
09
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.36 |
||
|
10
|
10
14T-28349-40-00 CapBlack |
14T-28349-40-00 |
from US $7.37 |
||
| replacement | |||||
|
10
|
10
3WV-F8349-10-00 CapBlack |
3WV-F8349-10-00 |
from US $8.08 |
||
|
18
|
18
4CU-F1783-01-00
Emblem 3
|
4CU-F1783-01-00 |
— | ||
|
19
|
19
3WV-F1565-00-00
Emblem 2
|
3WV-F1565-00-00 |
— | ||
